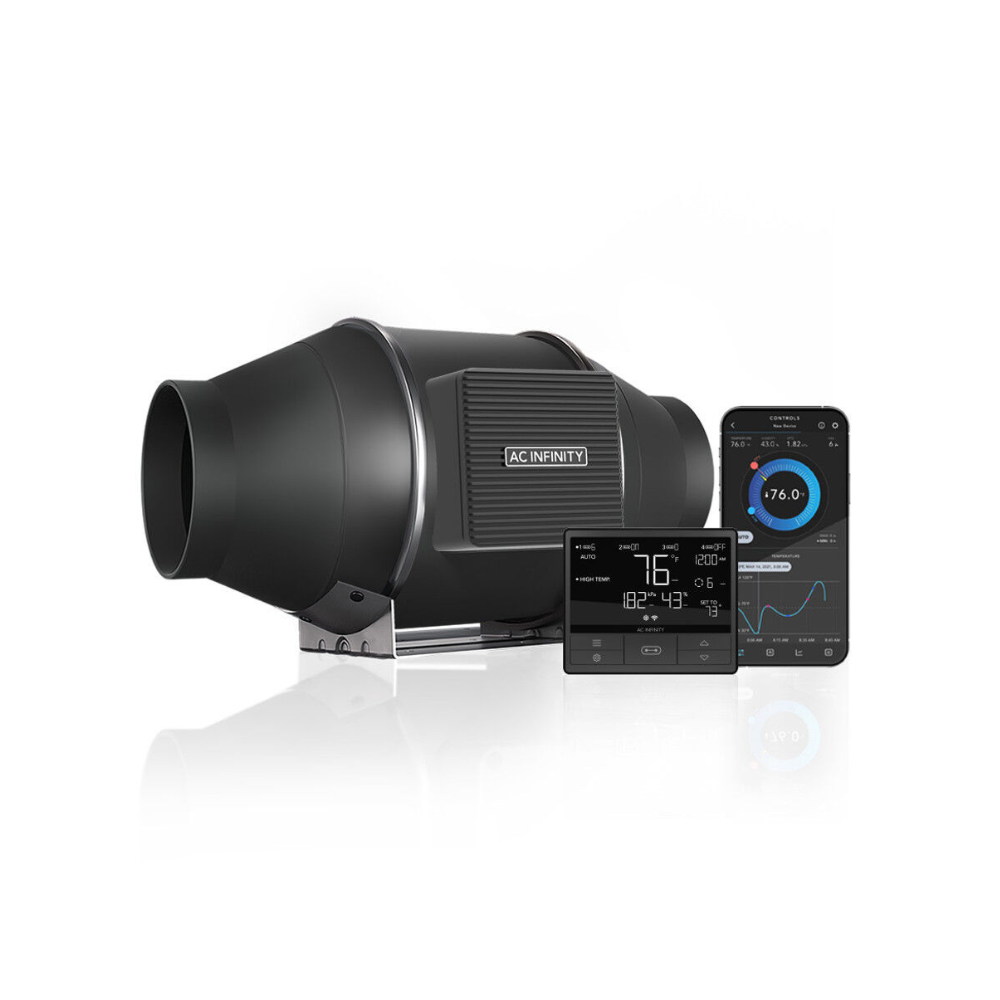

AC Infinity Inline EC Exhaust Fan Cloudline Pro T4 - 100MM (4" Inch)
Air Flow 348 M³/H | Power Consumption 28W | IP44
AC Infinity Inline EC Exhaust Fan Cloudline Pro T4 - 100MM (4"...
Description
Description

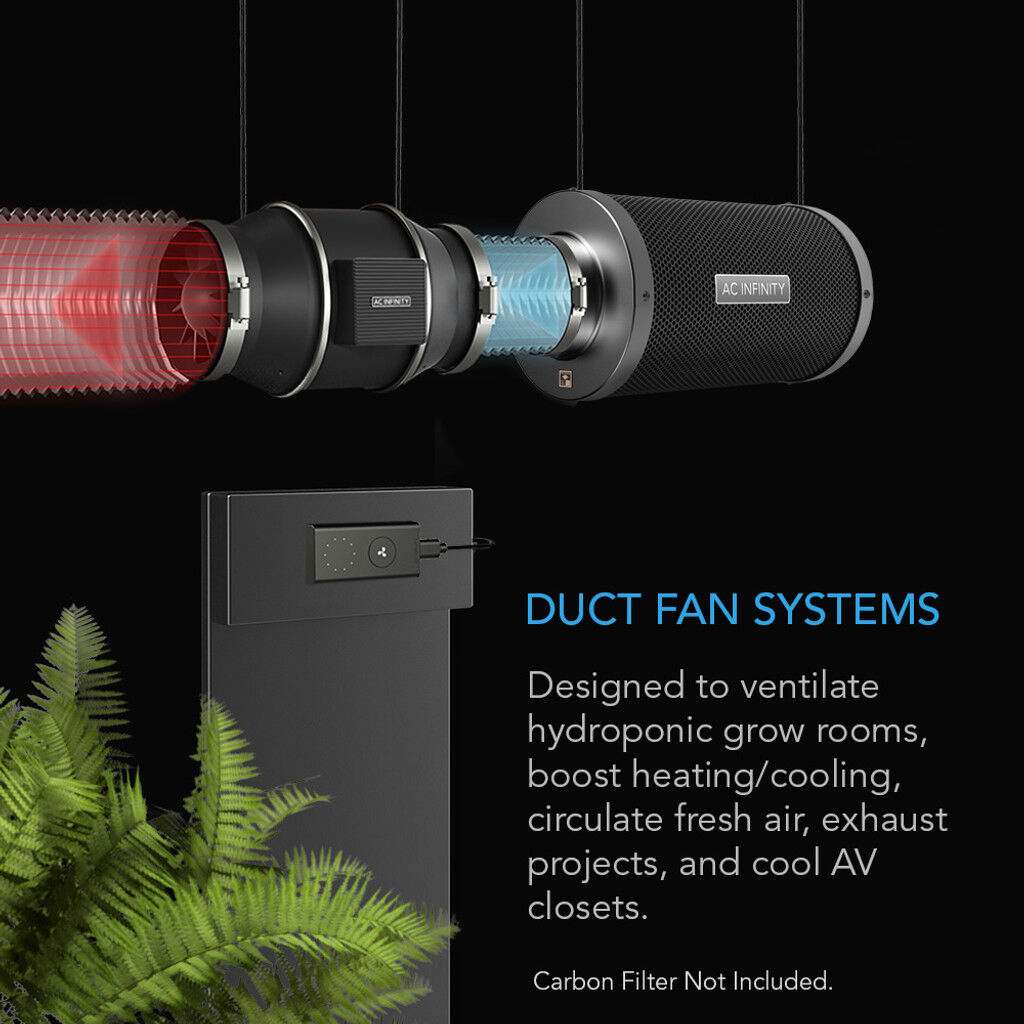

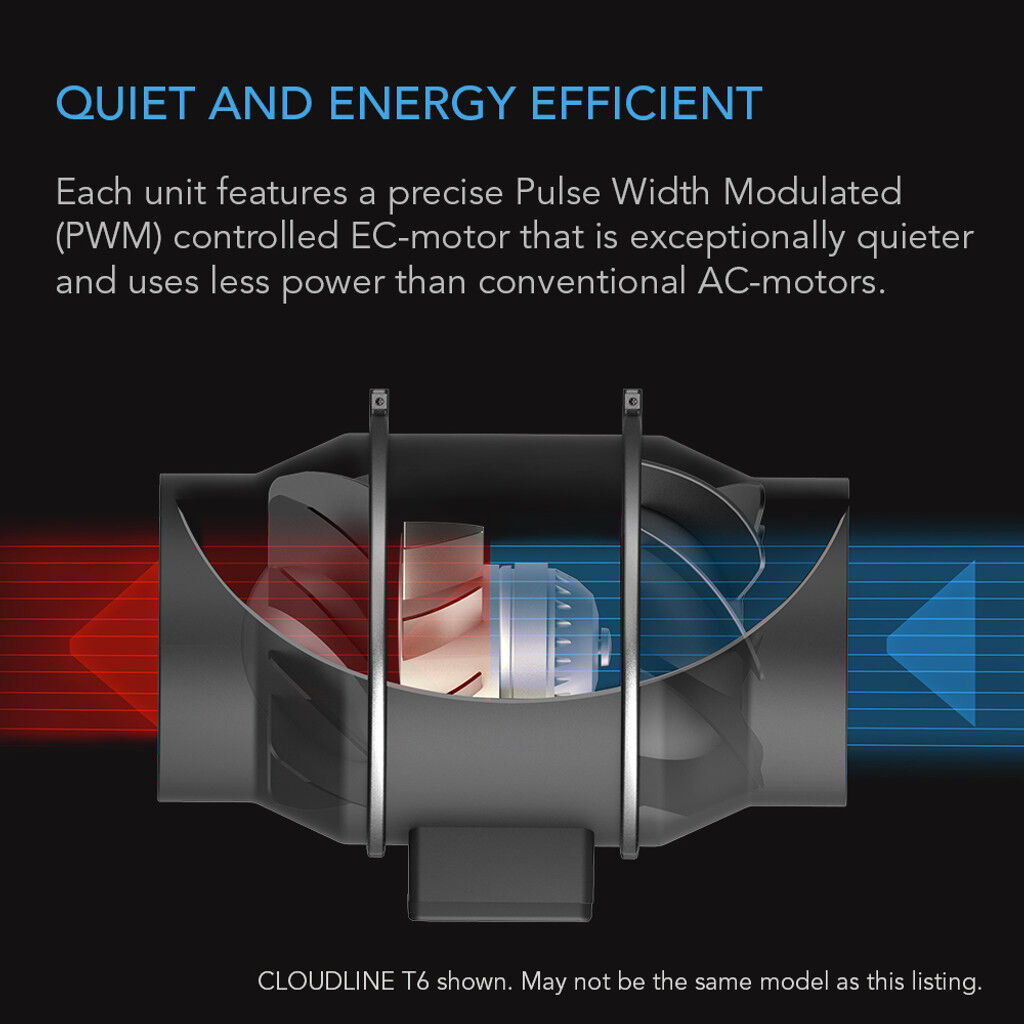

The AC Infinity CLOUDLINE PRO T4 AI-CLT4 is a precision-engineered 4-inch inline duct fan system designed for grow tents, hydroponic rooms, AV closets, and general air circulation needs. Featuring a PWM-controlled EC motor, this quiet fan delivers 205 CFM airflow with just 28 dBA of noise. Its mixed-flow design, enhanced with a stator blade and dual hydrodynamic wind circles, ensures strong airflow performance even in high static pressure environments.

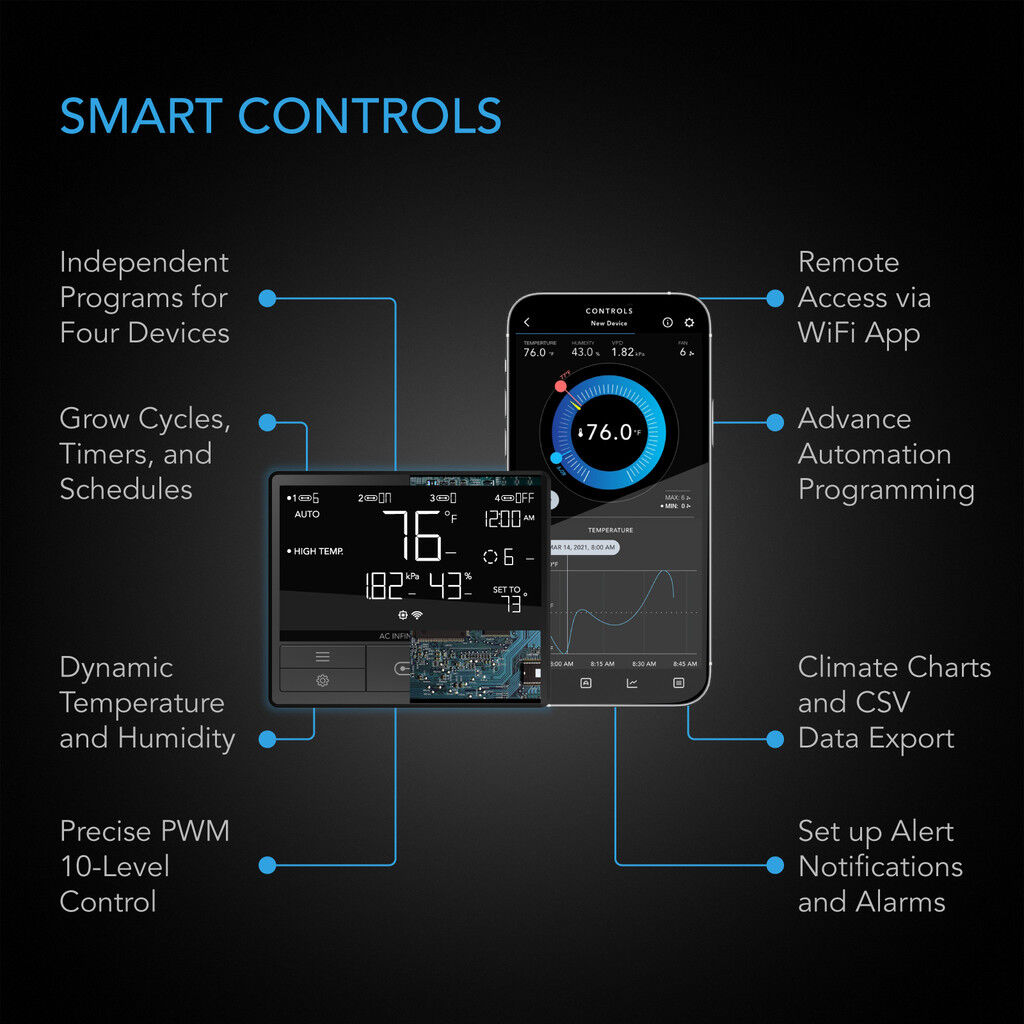

Included is the CONTROLLER 69 PRO, offering real-time automation through temperature, humidity, and VPD triggers, as well as timers, grow cycle scheduling, and minimum fan speed functions. The sensor probe reads climate data, while the fan controller communicates wirelessly via WiFi with the AC Infinity App, allowing you to monitor and automate your system remotely. With compatibility across the UIS platform, the T4 easily integrates with other smart devices like CLOUDRAY fans and IONFRAME grow lights.
The detachable motor housing, dual ball bearings rated at 67,000 hours, and IP44 ingress protection make the CLOUDLINE T4 a long-lasting and low-maintenance choice for high-performance environments.

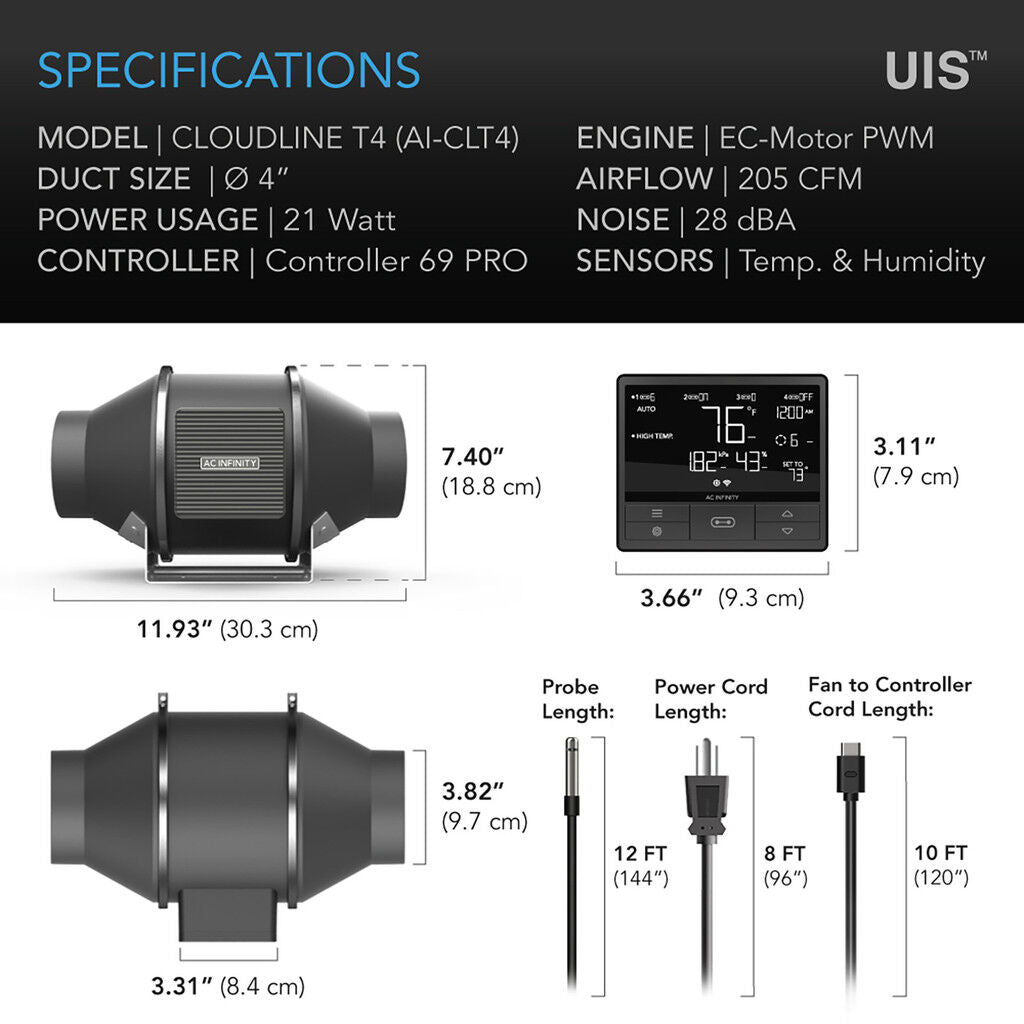

Specifications
Specifications
| Attribute | Details |
|---|---|
| Product Model | AI-CLT4 |
| UPC Code | 854759004785 |
| Duct Size | 4" |
| Fan Dimensions | 18.8 x 30.3 x 17.6 cm (7.40 x 11.93 x 6.93 in.) |
| Mounting Hole Distance | 8.0 x 6.0 cm (3.15 x 2.36 in.) |
| Screw Hole Size (Fan) | Ø 0.5 cm (Ø 0.197 in.) |
| Controller Dimensions | 13.2 x 7.4 x 2.7 cm (5.19 x 2.91 x 1.06 in.) |
| Controller Mounting Distance | 12.0 x 6.7 cm (4.71 x 2.64 in.) |
| Screw Hole Size (Controller) | Ø 0.3 cm (Ø 0.119 in.) |
| Display Size | 9 x 3.5 cm (3.5 x 1.4 in.) |
| Cord to Controller | 305 cm (10 feet) |
| Cord to Plug | 244 cm (8 feet) |
| Sensor Probe Length | 365.8 cm (12 feet) |
| Total Airflow | 205 CFM |
| Total Noise | 28 dBA |
| Static Pressure | 223 Pa |
| Max Speed | 2800 RPM |
| Voltage | 100–240V AC |
| Frequency | 50/60 Hz |
| Max Power Draw | 28 W |
| Average Power Usage | 21 W |
| Current | 0.4 A |
| Power Plug Type | US Plug (NEMA 5-15 Type B) |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32–140°F |
| Waterproof Rating | IP44 |
| Fan Bearings | Dual Ball Bearing |
| Mounting Positions | Horizontal or Vertical |
| Life Expectancy | 67,000 Hours |
What's in the box
What's in the box
[1] x AC Infinity Inline EC Exhaust Fan Cloudline Pro T4 - 100MM (4" Inch)
Downloads
Downloads
Product Manual - Click Here
