Vortice In-Line Centrifugal Exhaust AC Fan with Metal Casing - CA 100 MD | 100MM (4" Inch)
Air Flow 260 M³/H | Power Consumption 43W | IP44
Vortice In-Line Centrifugal Exhaust AC Fan with Metal Casing - CA 1...
Description
Description

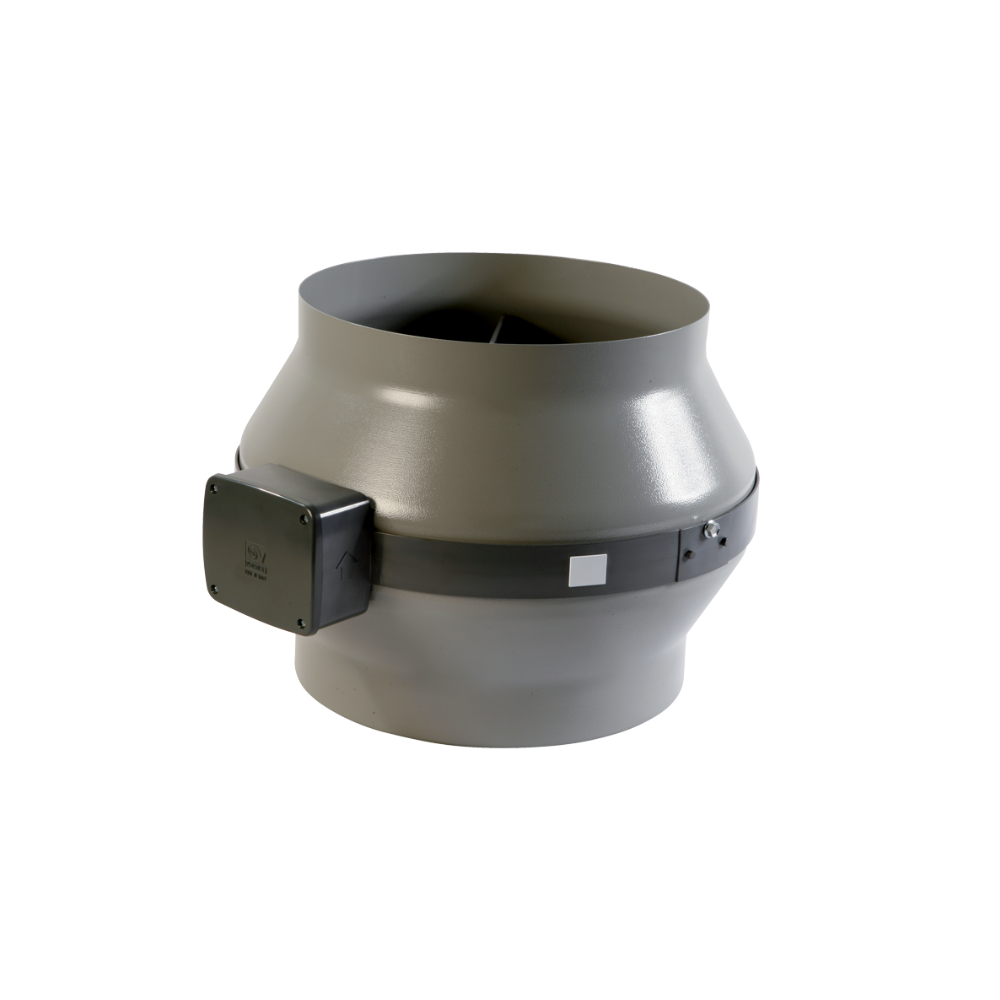

The Vortice CA 100 MD is a high-performance 100mm (4-inch) in-line centrifugal exhaust fan, purpose-built for residential and commercial ducted ventilation systems. Engineered with a durable, pickled and phosphated steel casing, this fan offers excellent resistance against aggressive atmospheric agents making it ideal for continuous operation in demanding Australian conditions.
Powered by a three-speed AC motor with ball bearings and a thermal overload cutout, the CA 100 MD ensures quiet and efficient airflow up to 260 m3/h, with low power consumption of just 43W at maximum speed. Its backward curved centrifugal impeller maximises pressure performance while maintaining stable airflow through longer duct runs.
Installation is made easy with zinc-coated steel wall-mount brackets, and operation can be integrated with remote sensors for temperature, humidity, smoke, and presence offering a smart solution for dynamic airflow control.
Features
- Robust Construction: Pickled & phosphated steel body with polyester powder coating for corrosion resistance
- High Performance: Delivers up to 260 m3/h airflow at only 43W power consumption
- Smart Control Ready: Compatible with sensors for temperature, humidity, smoke, and motion
- Versatile 3-Speed Operation: AC motor with thermal cutout and backward curved centrifugal impeller
- Easy Installation: Zinc-coated wall brackets included
- Low Noise Levels: Designed for quiet ventilation in both residential and commercial settings
Specifications
Specifications
| Model | CA 100 MD |
|---|---|
| Brand | Vortice |
| Nominal Diameter | 100MM (4" Inch) |
| Max Air Flow | 260 m³/h |
| Power Consumption | 43W (Max Speed) |
| Voltage | 220–240V |
| Motor Type | AC with Thermal Overload Protection |
| Fan Speeds | 3-Speed |
| RPM Range | 880 – 2135 RPM |
| Sound Pressure at 3m | Up to 67 dB(A) |
| IP Rating | IP44 |
| Installation Type | In-line Duct Mount (Wall Bracket Included) |
| Material | Steel (Powder-Coated) |
| Weight | 2.97 kg |
| Max Operating Temperature | 50°C |
What's in the box
What's in the box
[1] x Vortice In-Line Centrifugal Exhaust AC Fan with Metal Casing - CA 100 MD | 100MM (4" Inch)
Downloads
Downloads
Specification Sheet - Click Here
Product Manual - Click Here
