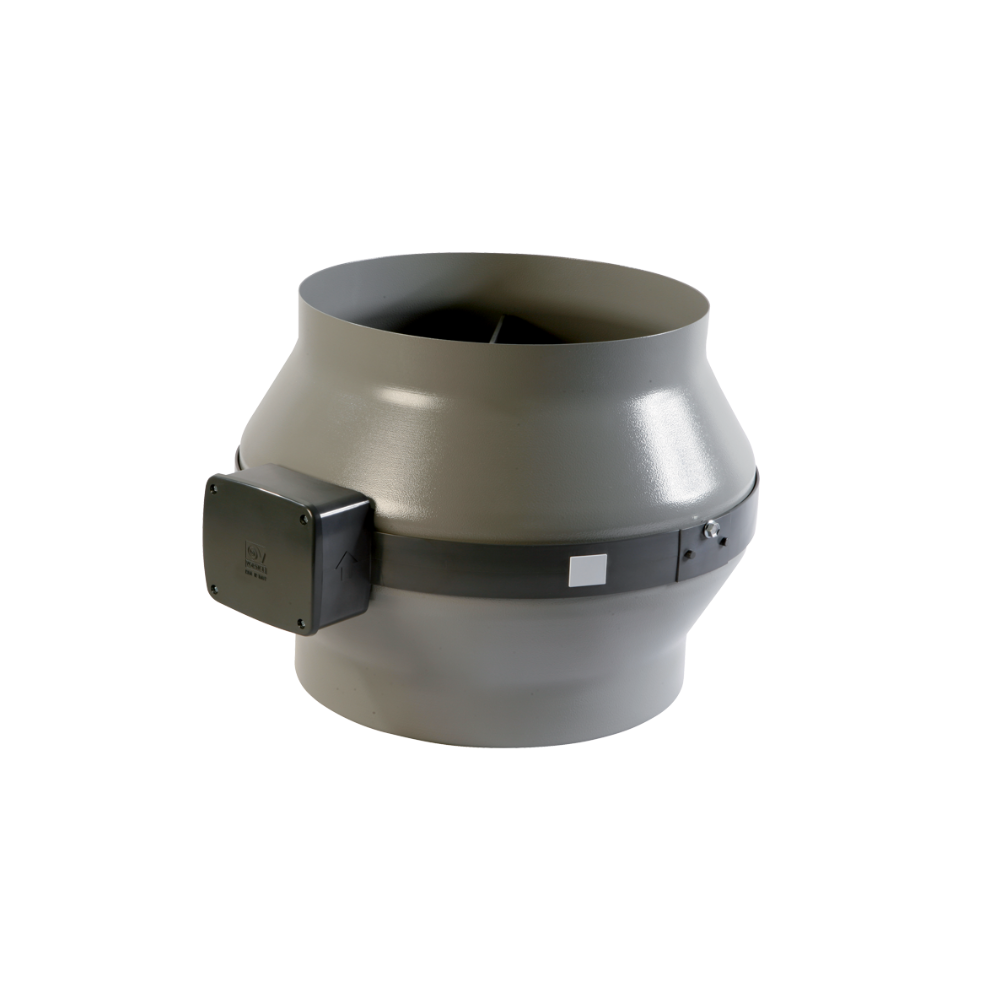

Vortice In-Line Centrifugal Exhaust AC Fan with Metal Casing - CA 200 MD | 200MM (8" Inch)
Air Flow 1050 M³/H | Power Consumption 155W | IP44
Vortice In-Line Centrifugal Exhaust AC Fan with Metal Casing - CA 2...
Product Overview
| Airflow (M³/H) | 1050 |
| Power | 155 |
| Motor Type | AC |
| Noise Level | 49.6 dBA at 3M |
| IP Rating | IP44 |
| Run On Timer | No |
Description
Description
The Vortice CA 200 MD is a high-performance in-line centrifugal exhaust fan built for reliability and durability in commercial and industrial ventilation systems. Designed with a pickled and phosphated steel housing and finished with a polyester powder coating, this fan resists corrosion and harsh environmental exposureideal for Australian conditions.
Featuring a nominal diameter of 200mm, the unit delivers a maximum airflow of 1050 m3/h at only 155W, making it an energy-efficient solution. Its 2-speed AC motor, equipped with a thermal overload cutout and ball bearings, drives a backward curved centrifugal impeller for strong static pressure and quiet performance.
For enhanced functionality, the fan supports remote sensor control for temperature, humidity, smoke, and presence, making it an intelligent option for demand-based ventilation systems. Zinc-coated wall mounting brackets are included, and airflow speed can be adjusted with optional Vortice speed controls (sold separately).
Ideal for installation in ducted exhaust systems, this fan is perfect for commercial kitchens, warehouses, mechanical rooms, and industrial facilities seeking robust airflow with low noise and high efficiency.
Features
Features
- Durable pickled and phosphated steel body with polyester powder coating
- High airflow capacity: up to 1050 m³/h
- IP44 protection - suitable for demanding environments
- Two-speed AC motor with backward curved centrifugal impeller
- Motor includes thermal overload protection and ball bearings
- Remote controllable via sensors (temperature, humidity, smoke, presence)
- Mountable with zinc-coated steel wall brackets
- Compatible with Vortice fan speed controllers
Specifications
Specifications
| Model | CA 200 MD |
|---|---|
| Brand | Vortice |
| Voltage | 220–240V |
| Frequency | 50 Hz |
| Nominal Diameter | 200 mm |
| Max Airflow | 1050 m³/h |
| Airflow at 1st Speed | 820 m³/h |
| Max Power Consumption | 155 W |
| Power at 1st Speed | 115 W |
| Max Current | 0.70 A |
| Min Current | 0.60 A |
| IP Rating | IP44 |
| Insulation Class | II |
| Max Ambient Temp | 50°C |
| Max Pressure | 471 Pa |
| Sound Level (Max) | 49.6 dB(A) at 3m |
| Speed Control | Available (optional) |
| Weight | 6 kg |
| Mounting | Wall Brackets Included |
What's in the box
What's in the box
- [1] x Vortice In-Line Centrifugal Exhaust AC Fan with Metal Casing - CA 200 MD | 200MM (8" Inch)
Downloads
Downloads
- Specification Sheet - Click Here
- Product Manual - Click Here
