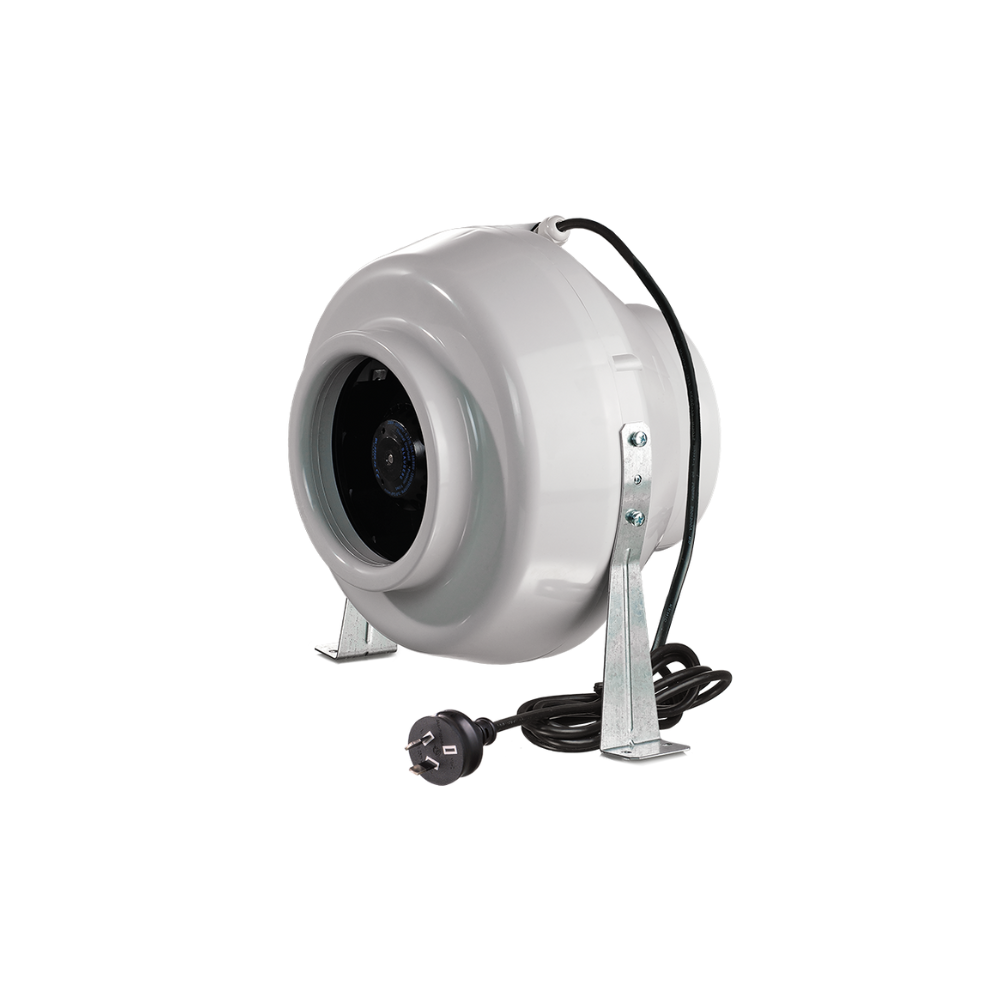

Blauberg Centro Centrifugal AC Fan - 200MM (8" Inch) | w/ Power & Cord
Air Flow 780 M³/H | Power Consumption 107W | IPX4
Description
Description
The Blauberg Centro 200 is a compact and powerful inline centrifugal fan designed for 200mm ducted ventilation systems. Built with a durable plastic casing and equipped with a centrifugal impeller with backward-curved blades, this fan ensures stable airflow up to 780 m3/h while maintaining quiet, energy-efficient performance.
Ideal for domestic, hydroponic, and commercial ventilation setups, the Centro 200 is powered by a reliable AC motor and supports installation in any orientation. With its IPX4-rated enclosure and demand-control capability, it's suitable for high-humidity environments such as grow rooms, kitchens, cafes, and utility rooms.
Features
- High Airflow Output: Moves up to 780 m3/h, ideal for medium-sized duct systems.
- Efficient Centrifugal Design: Backward-curved blades generate high static pressure and low noise.
- Versatile Mounting: Can be installed in any positionhorizontal, vertical, or angled.
- AC Motor: Reliable, variable-speed drive ensures consistent performance over time.
- Plastic Housing: Lightweight and corrosion-resistant casing for long-lasting indoor use.
- Demand-Based Control: Local demand control typology allows responsive ventilation operation.
- Quiet Performance: Sound power level rated at just 68 dB(A).
- Moisture Protection: IPX4 enclosure for safe use in damp or humid environments.
Specifications
Specifications
Parameter | Value | Unit |
---|---|---|
Duct Size | 200 | mm |
Motor Type | AC | - |
Impeller Type | Backward-Curved Centrifugal | - |
Voltage Range | 220–240 | V |
Frequency | 50/60 | Hz |
Power Input | 107 | W |
Current | 0.47 | A |
Max Airflow | 780 | m³/h |
Sound Power Level | 68 | dBA |
Operating Temp Range | -25 to +50 | °C |
Weight | 3.0 | kg |
Ingress Protection | IPX4 (Fan), IP44 (Motor) | - |
Mounting Position | Any | - |
Drive Type | Variable Speed | - |
Heat Recovery System | None | - |
What's in the box
What's in the box
[1] x Blauberg Centro Centrifugal AC Fan - 200MM (8" Inch) | w/ Power & Cord
Downloads
Downloads
Specification Sheet - Click Here
Product Manual - Click Here
