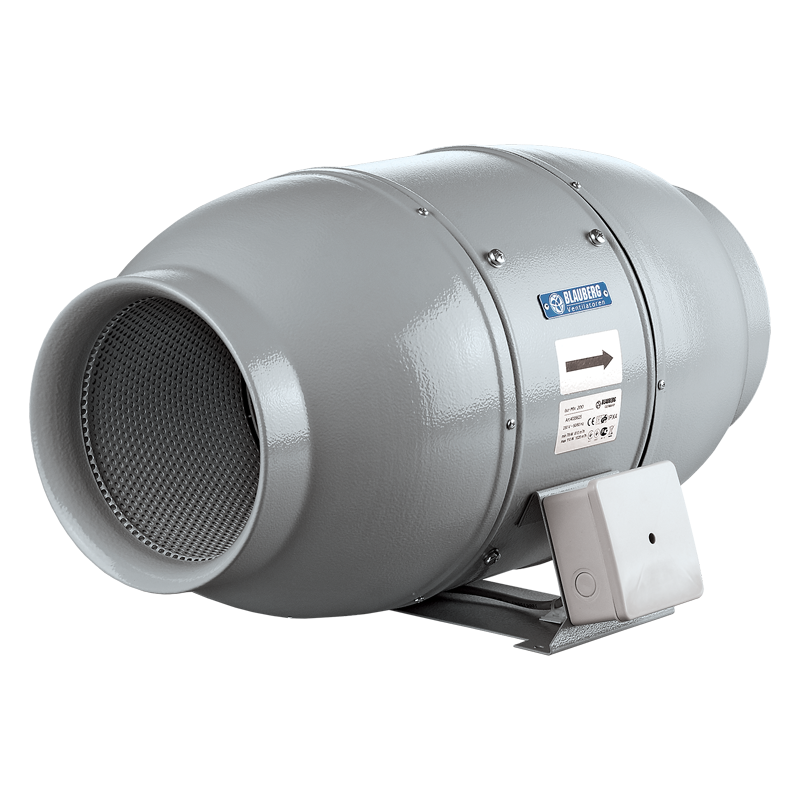

Blauberg Sound Insulated Iso-Mix Inline Exhaust AC Silent Fan - 150MM (6" Inch) | 2 Speed

The Blauberg Iso-Mix 150MM Sound Insulated AC Fan is expertly designed for supply and extract ventilation systems that require low noise, high pressure, and reliable airflow. Ideal for domestic and commercial applications, this dual-speed inline fan delivers powerful performance with minimal acoustic impact, thanks to its 50mm mineral wool sound insulation and perforated inner lining for wide-frequency noise absorption.

Its mixed-flow impeller, precision diffuser, and aerodynamic vanes generate up to 550 m3/h airflow with sound levels as low as 26 dBA, making it perfect for quiet zones. Housed in a polymer-coated steel casing, the fan is IPX4 rated for moisture resistance and can be installed on walls, floors, or ceilings. The fan includes a 2-speed external switch, 1.2m lead with plug, and manual reset thermal overload protection for peace of mind and compliance with AS/NZS standards.

Compact yet powerful, the Blauberg Iso-Mix 150MM offers flexible mounting in tight spacesideal from intake to the end of duct systems.

Features

• Two-speed airflow control: 410 - 550 m3/h
• Noise-insulated steel casing with 50mm mineral wool layer
• Low sound pressure levels: only 26 - 33 dBA @ 3m
• Durable AC motor with sealed ball bearings (up to 40,000 hours)
• Integrated thermal overload protection with manual reset
• Includes 1.2m lead, plug, and external 2-speed switch
• Versatile mounting - floor, wall, ceiling, or inline duct
• IPX4 ingress protection for damp or humid environments

[1] x Blauberg Sound Insulated Iso-Mix Inline Exhaust AC Silent Fan - 150MM (6" Inch) | 2 Speed

Specification Sheet - Click Here

Product Manual - Click Here
