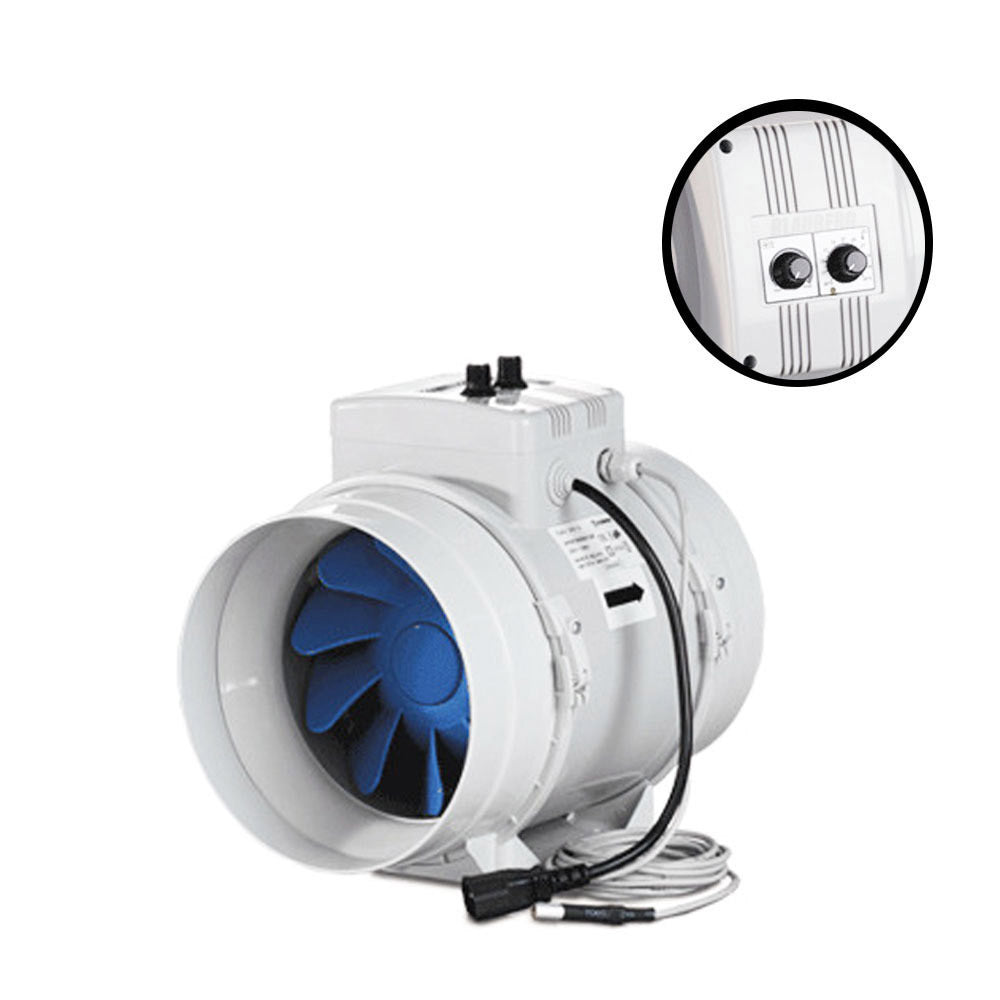

Blauberg Turbo G Mixed Flow Inline AC Exhaust Fan - 250MM (10" Inch) | with Thermostat
Air Flow 1360 M³/H | Power Consumption 177W | IPX4
Description
Description
The Blauberg Turbo G Mixed Flow Fan is the best ventilation solution for premises requiring permanent temperature control as greenhouses, orangeries, etc.
Complete with 4 metre wired thermo probe for accurate temperature readings.
Operating the fan speed controller and thermostat:
- Set your desired grow room temperature on the thermostat (e.g. 20 degrees celsius)
- Set the desired speed you wish the fan to run (e.g. medium speed)
When your grow room temperature drops below the set temperature on the thermostat (20 degrees celsius), the fan will operate at the selected speed (medium). When the temperature rises above the selected temperature, the fan will increase its speed to maximum until the temperature drops again to the desired level.
This means that when the area cools down, the fan will then also slow down reducing overcooling.
Features:
These Blaubergs mixed flow fans offer a range of features including;
- Casing made of low flammable polypropylene
- Single-phase motor on ball bearings
- Equipped with thermal overload protection with automatic restart
- Automatic speed control depending on indoor temperature with thermostat
Specifications
Specifications
Unit of Measurement | Turbo 250 G |
---|---|
Connected air duct size (mm) | 250 |
Phases | 1 |
Minimum supply voltage (V) | 230 |
Maximum supply voltage (V) | 230 |
Power supply frequency (Hz) | 50/60 |
Rated power (W) | 125 / 177 |
Unit current (A) | 0.54 / 0.79 |
Maximum airflow (m³/h) | 1110 / 1400 |
Sound pressure level LpA at 3m (dB(A)) | 44 / 51 |
Weight (kg) | 7.8 |
Transported air temperature (max °C) | 60 |
Ingress protection rating | IPX4 |
Ingress protection rating of the drive | IPX4 |
What's in the box
What's in the box
[1] x Blauberg Turbo G Mixed Flow Inline AC Exhaust Fan - 250MM (10" Inch) | with Thermostat
Downloads
Downloads
Specification Sheet - Click Here
Product Manual - Click Here
