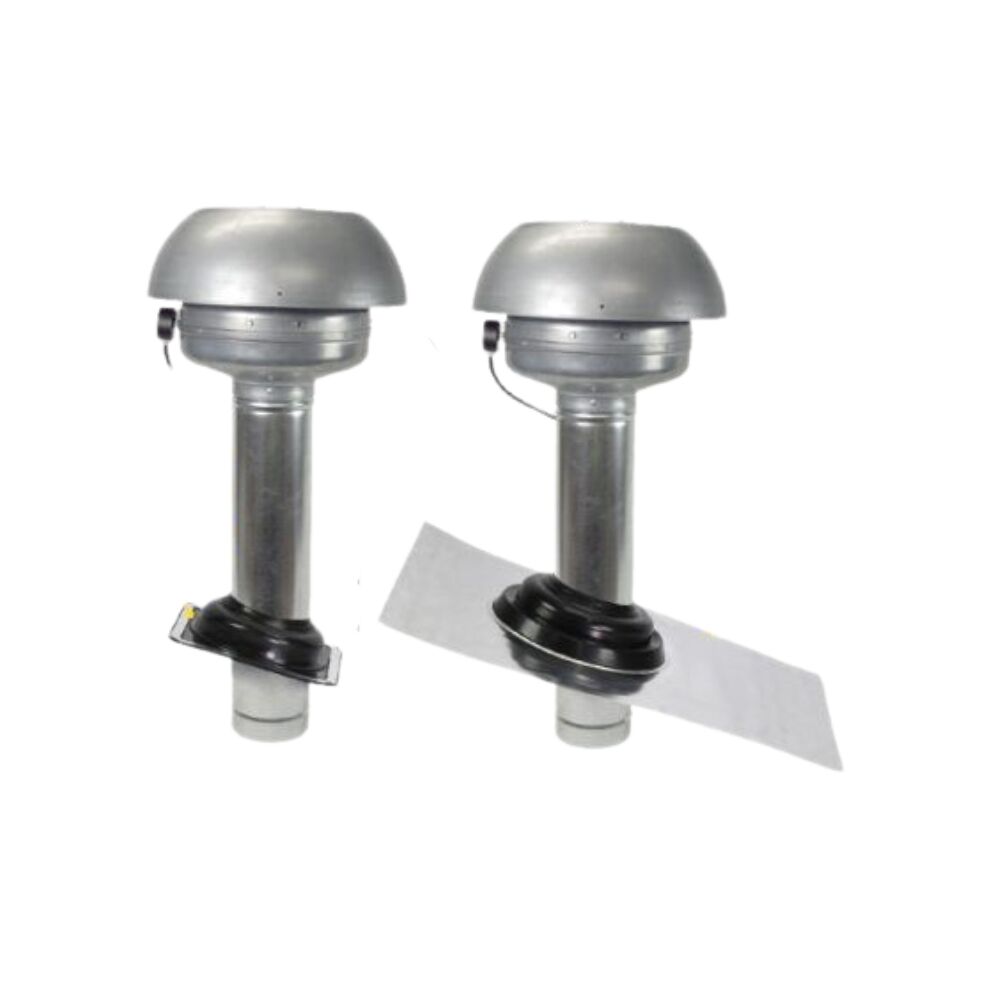

Fantech Ezifit Thru Roof Mounted Supply Air Fan - 150MM (6" Inch)
Air Flow 461 M³/H | Power 110W | w/ G2 Dust Filter
Fantech Ezifit Thru Roof Mounted Supply Air Fan - 150MM (6" Inch)
Description
Description
The Fantech Ezifit Thru Roof Supply Air Fan is the perfect solution for delivering clean, filtered air into your home or commercial space. Built from robust galvanised steel, this high-performance unit ensures reliable and quiet operation, even for long duct runs or multiple outlet points.

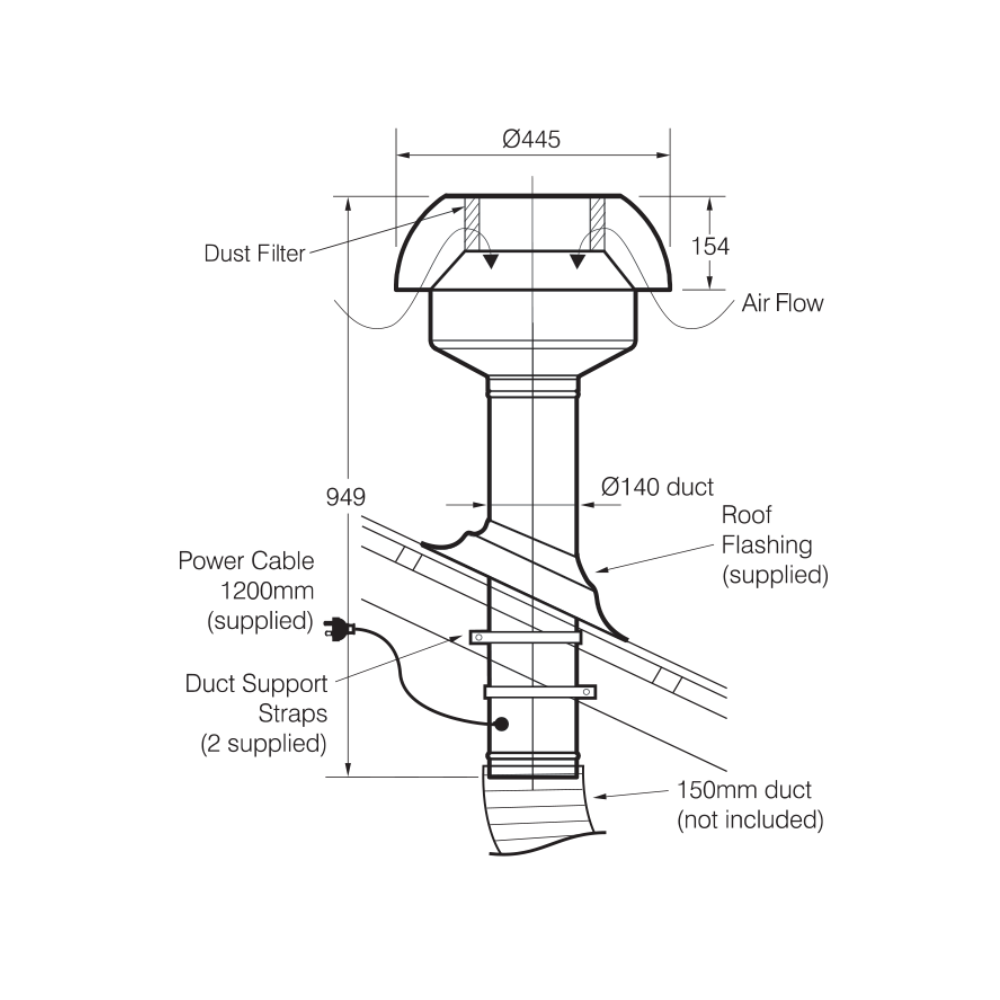

Designed to suit all roof profiles - both tile and metal deck - it comes complete with roof flashing, a 150mm duct connection, and a G2 dust filter that can be washed or replaced. The continuous-rated motor with thermal protection provides dependable performance, while the plug-and-play 3-pin lead makes installation fast and simple for both DIY users and HVAC professionals.
Features
- High airflow performance 461 m3/h for multiple outlets
- Compatible with tile and metal deck roofs
- Fitted with a washable/replacement G2 dust filter
- Durable galvanised steel construction
- Quiet operation with correct installation
- Continuous-rated motor with thermal overload protection
- Easy installation roof flashing & plug-and-lead included
- Speed controllable with an optional electronic controller
- Optional custom colour finish available
Specifications
Specifications
| Specifications | ECE152SM | ECE152ST |
|---|---|---|

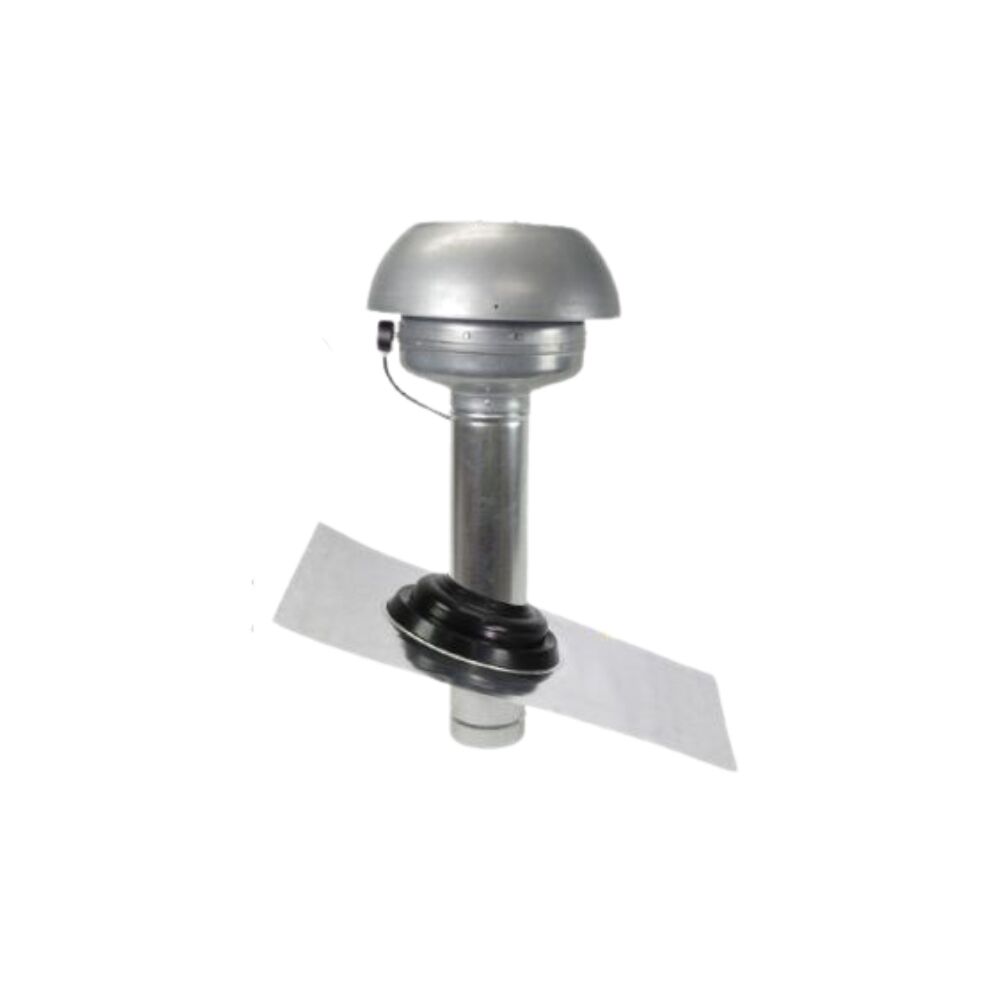

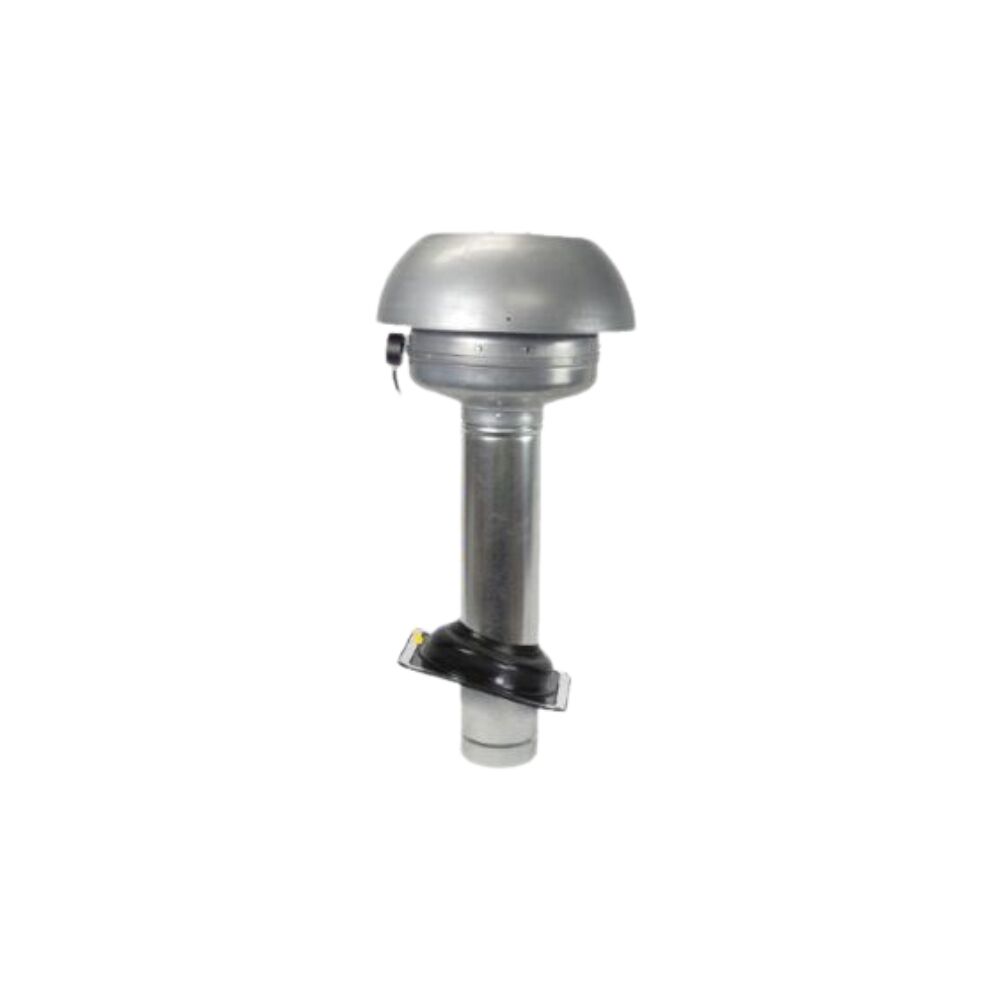

| Roof Flashing | Metal Deck Roof | Tile Roof |
| Air Flow (m³/h) | 461 | 461 |
| Air Flow (L/s) | 128 | 128 |
| Fan Speed (RPM) | 2460 | 2460 |
| Noise Level dB(A) @ 3m | 51 | 51 |
| Power (W) | 110 | 110 |
| Voltage (V) | 240 | 240 |
What's in the box
What's in the box
- [1] x Fantech Ezifit Thru Roof Mounted Supply Air Fan - 150MM (6" Inch) | Tile Roof / Metal Deck Roof
Downloads
Downloads
Specification Sheet - Click Here
