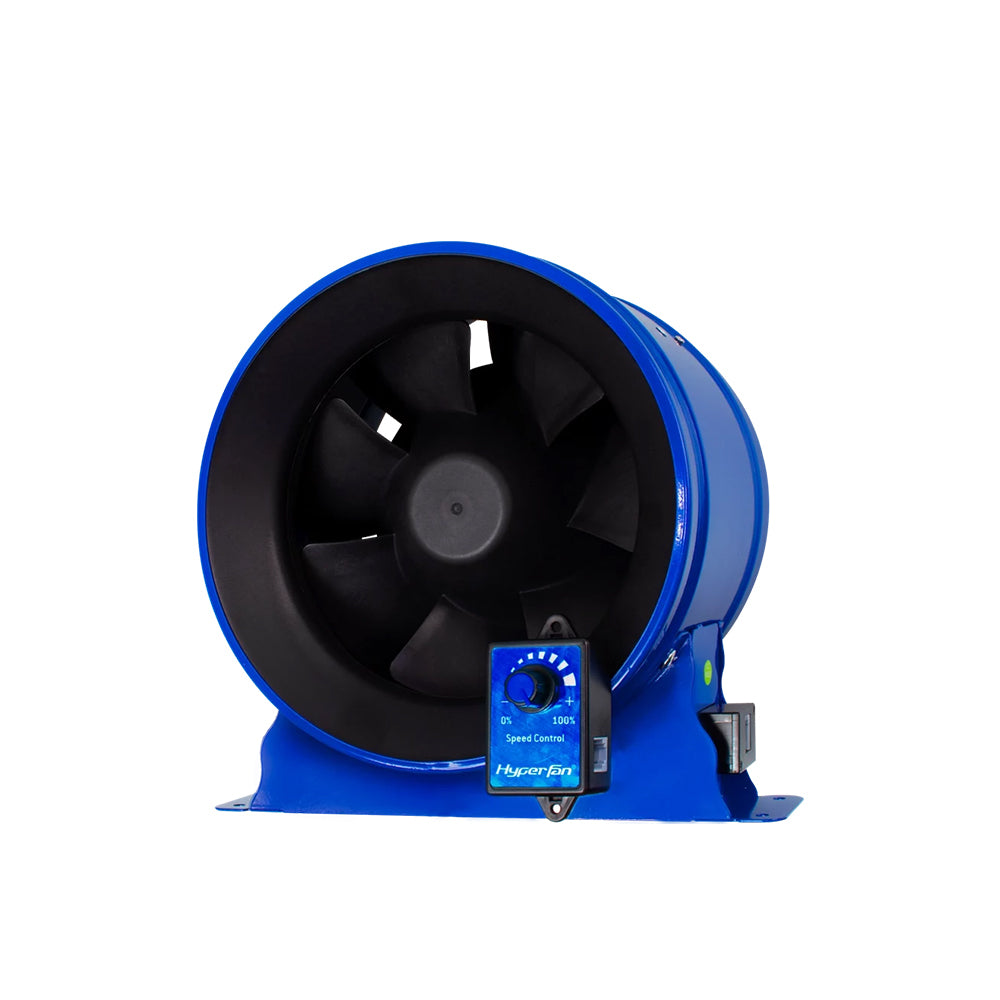

Phresh Hyperfan EC Fan v2 w/ Controller - 150MM (6" Inch) | 560 M3/H | IPX2
Phresh Hyperfan EC Fan v2 w/ Controller - 150MM (6" Inch) | 56...
Description
Description
Experience the next evolution in hydroponic ventilation with the Hyperfan V2the original and best digital multiphase fan. Engineered for superior performance, this advanced fan delivers higher efficiency, greater airflow, and improved static pressure while consuming half the electricity of traditional AC fans.
Key Features:
- Unmatched Efficiency Uses 50% less energy compared to conventional AC fans.
- Powerful Performance Enhanced motor and innovative design provide increased airflow and higher static pressure.
- Precision Speed Control True 0%-100% speed adjustment when used with compatible controllers.
- Aerodynamic Engineering Featuring laminar blade technology, inspired by aircraft design, for optimized airflow.
- Whisper-Quiet Operation Soft-start circuitry and self-lubricating ball bearings ensure smooth, quiet performance.
- Advanced Control Compatibility Operates on a 0-10V signal, making it compatible with a wider range of controllers for enhanced airflow management.
Upgrade your ventilation system with the Hyperfan V2where power, efficiency, and control come together for optimal growing conditions.
Specifications
Specifications
| Unit of Measurement | 6" - 150 mm | 8" - 200 mm | 10" - 250 mm | 12" - 315 mm |
|---|---|---|---|---|
| Max Air Flow | 560 m³/h | 1230 m³/h | 1840 m³/h | 3100 m³/h |
| RPM | 5000 | 4000 | 3600 | 3200 |
| Max Watts | 95 W | 175 W | 250 W | 320 W |
| Weight | 1.9 kg | 4.6 kg | 7.4 kg | 10.5 kg |
| Noise | 66 dB(A) | 69 dB(A) | 72 dB(A) | 73 dB(A) |
| Fan Pressure | 560 Pa | 610 Pa | 730 Pa | 830 Pa |
| Diameter | 150 mm | 200 mm | 250 mm | 315 mm |
| Width | 204 mm (including mounting bracket) | 248 mm (including mounting bracket) | 314 mm (including mounting bracket) | 364 mm (including mounting bracket) |
| Length | 141 mm | 170 mm | 205 mm | 302 mm |
| Housing | Powder Coated Steel | Powder Coated Steel | Powder Coated Steel | Powder Coated Steel |
| Climate Rating | Mixed flow - Laminar blade | Mixed flow - Laminar blade | Mixed flow - Laminar blade | Mixed flow - Laminar blade |
| IPX Rating | IPX2 | IPX2 | IPX2 | IPX2 |
What's in the box
What's in the box
[1] x Phresh Hyperfan EC Fan v2 w/ Controller - 150MM (6" Inch) | 560 M3/H | IPX2
Downloads
Downloads
Specification Sheet - Click Here
