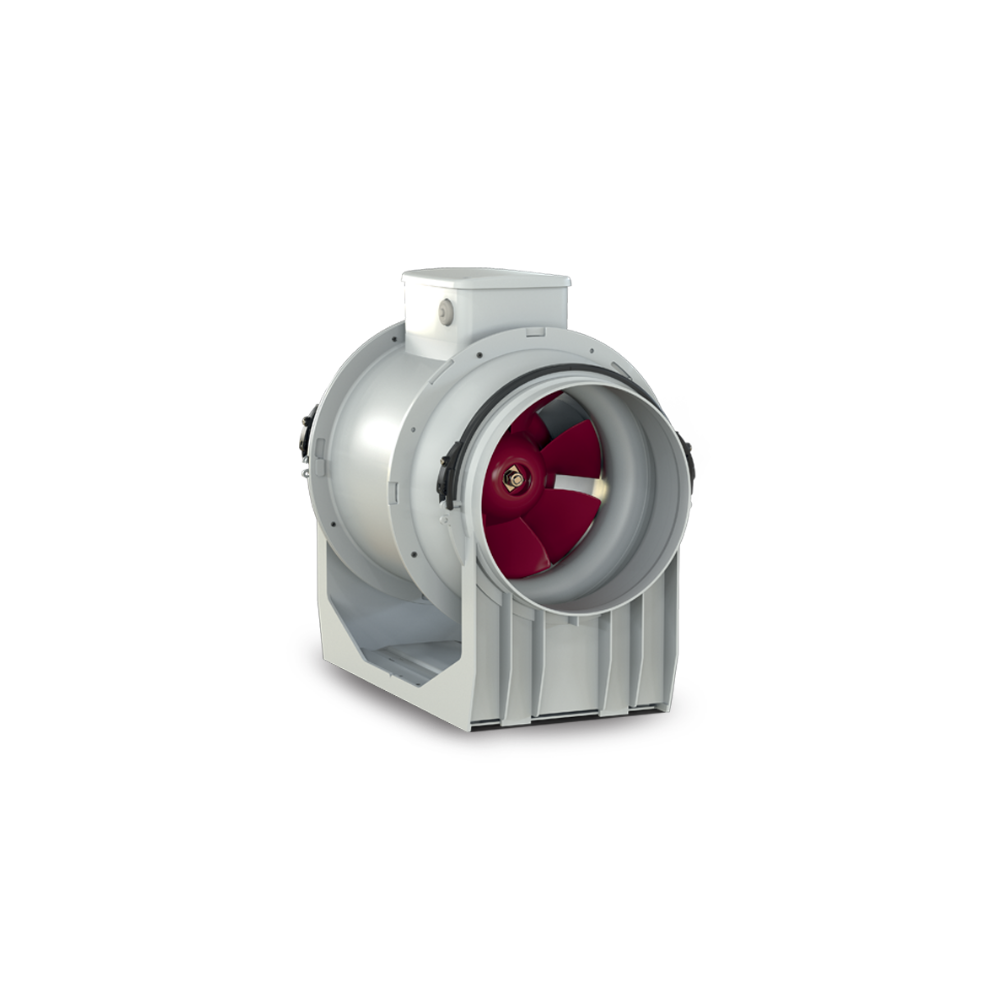

Vortice Lineo Inline Mixed Flow AC Fan - Lineo 250 | 250MM (10" Inch)
Air Flow 1470 M³/H | Power Consumption 150W | IPX5
Vortice Lineo Inline Mixed Flow AC Fan - Lineo 250 | 250MM (10"...
Product Overview
| Airflow (M³/H) | 1470 |
| Power | 150 |
| Motor Type | AC |
| Noise Level | 44.1 dBA at 3M |
| IP Rating | IPX5 |
| Run On Timer | No |
Description
Description
The Vortice Lineo Inline Mixed Flow AC Fan - Lineo 250 is a high-capacity ventilation solution designed for heavy-duty residential, commercial, and industrial applications in Australia. Built with a nominal diameter of 250mm and delivering up to 1470 m3/h airflow, this mixed-flow fan offers powerful and efficient extraction, making it ideal for large bathrooms, kitchens, workshops, grow rooms, and commercial exhaust systems.
Constructed from fire-resistant E2 class plastic resin in accordance with ISO EN 11925-2:2010 standards, the housing provides enhanced safety for areas near electrical and motor components. The thermally protected induction motor, mounted on ball bearings, ensures long-lasting reliability and quiet performance, while the centrifugal impeller optimises airflow with minimal noise. With an IPX5 water resistance rating when installed in ductwork, the Lineo 250 is perfect for humid or demanding environments. Adjustable speed control via compatible Vortice speed regulators allows tailored performance for energy savings and precise airflow control.
Whether for continuous operation in a commercial space or targeted high-volume extraction in a residential project, the Vortice Lineo 250 delivers dependable, high-performance ventilation with ease of installation and maintenance.
Features
Features
- High-Capacity Airflow - Delivers up to 1470 m³/h at maximum speed for powerful ventilation.
- Durable Fire-Resistant Housing - Made from E2 class plastic resin to ISO EN 11925-2:2010 standards.
- 200–250mm Nominal Diameter - Fits standard duct systems with high-volume airflow requirements.
- Thermally Protected Motor - Induction motor with ball bearings for extended service life.
- Water Resistant to IPX5 - Safe for installation in moisture-prone environments when ducted.
- Adjustable Speed Control - Compatible with Vortice speed control devices.
- Low Noise Levels - Only 44.1 dB(A) breakout sound at 3m on maximum speed.
- Professional-Grade Build - Designed for continuous operation in commercial settings.
Specifications
Specifications
| Model | Vortice Lineo 250 |
|---|---|
| Nominal Diameter | 250 mm |
| Voltage | 220-240 V |
| Frequency | 50-60 Hz |
| Max Airflow | 1470 m³/h |
| Airflow (Low Speed at 60Hz) | 675 m³/h |
| Power Consumption (Max) | 150 W |
| Power Consumption (Low) | 100 W |
| Current (Max) | 0.65 A |
| Noise Level @ 3m (Max) | 44.1 dB(A) |
| Max Pressure | 368.7 Pa |
| Insulation Class | Class II |
| IP Rating | IPX5 |
| Max Operating Temperature | 50°C |
| Weight | 5.3 kg |
What's in the box
What's in the box
- [1] x Vortice Lineo Inline Mixed Flow AC Fan - Lineo 250 | 250MM (10" Inch)
Downloads
Downloads
- Specification Sheet - Click Here
- Product Manual - Click Here
