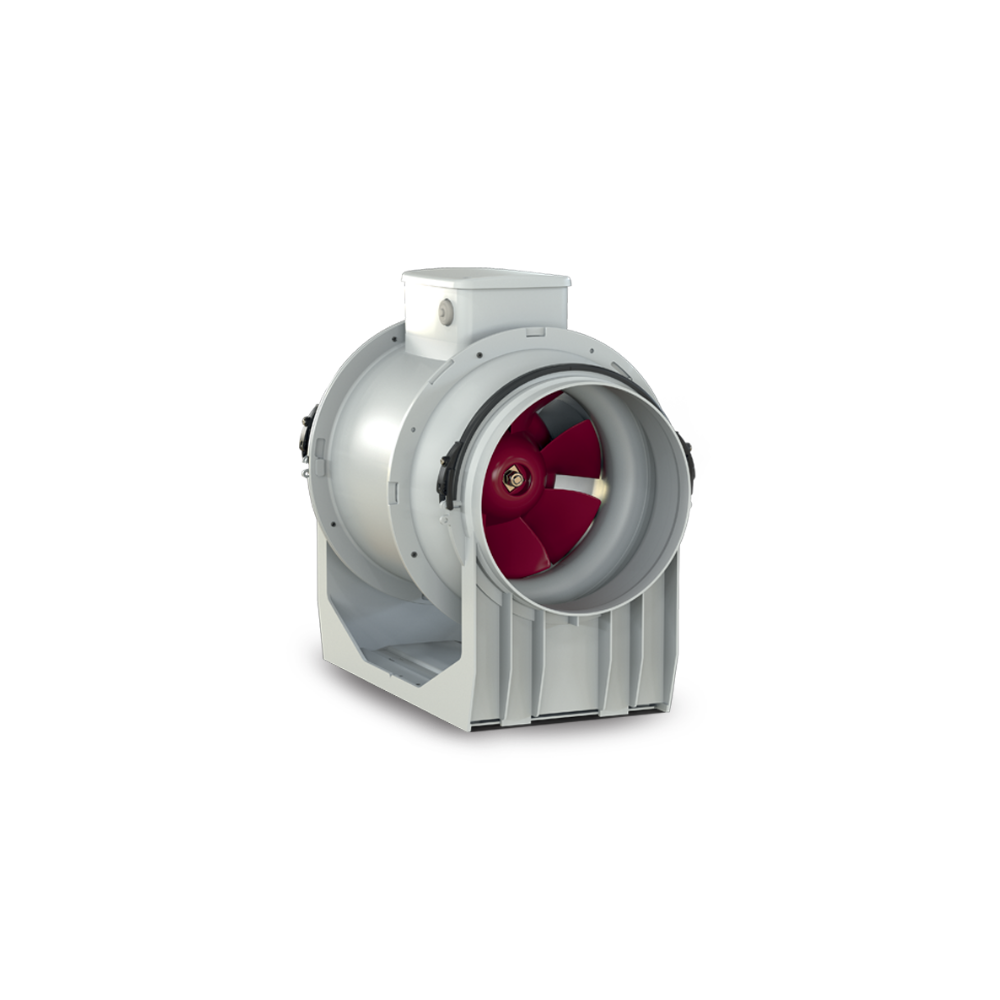

Vortice Lineo Inline Mixed Flow EC Fan - Lineo 200 ES | 200MM (8" Inch)
Air Flow 1100 M³/H | Power Consumption 90W | IP45
Vortice Lineo Inline Mixed Flow EC Fan - Lineo 200 ES | 200MM (8&qu...
Product Overview
| Airflow (M³/H) | 1100 |
| Power | 90 |
| Motor Type | EC |
| Noise Level | 65 dBA at 3M |
| IP Rating | IP45 |
| Run On Timer | No |
Description
Description
The Vortice Lineo 200 ES Inline Mixed Flow EC Fan delivers exceptional airflow performance and energy efficiency for demanding ventilation applications in residential, commercial, and industrial environments. Featuring a 200mm nominal diameter and a high-quality EC (brushless) motor mounted on ball bearings, this unit achieves a maximum airflow of 1100 m3/h with low power consumption and extended service life.
The robust fire-resistant housing (E2 class, ISO EN 11925-2:2010) ensures maximum safety, while its IP45 water resistance rating (IPX5 in duct installations) guarantees reliable operation even in moisture-prone or challenging environments. Designed for adaptability, it offers speed control via potentiometer (0 - 10V) or two-speed switch, enabling precise ventilation adjustment. Equipped with a thermal fuse overheating protection device, the Vortice Lineo 200 ES ensures safe, continuous operation for a variety of ducted air movement systems.
Features
- Powerful EC Motor - Brushless technology for high efficiency, long lifespan, and thermal protection.
- Large 200mm Diameter - Delivers high airflow rates up to 1100 m3/h.
- Durable Fire-Resistant Construction - E2 class resin housing meets ISO EN 11925-2:2010 standards.
- Moisture-Resistant Design - IP45 rating (IPX5 in duct) for reliable use in humid environments.
- Flexible Speed Control - Adjustable via potentiometer (0 - 10V) or preset two-speed switch.
- Quiet Operation - Low noise levels starting at 35.1 dB(A) at 3m on low speed.
- Thermal Safety Fuse - Protects against overheating for continuous safe use.
Features
Features
- Powerful EC Motor - Brushless technology for high efficiency, long lifespan, and thermal protection.
- Large 200mm Diameter - Delivers high airflow rates up to 1100 m³/h.
- Durable Fire-Resistant Construction - E2 class resin housing meets ISO EN 11925-2:2010 standards.
- Moisture-Resistant Design - IP45 rating (IPX5 in duct) for reliable use in humid environments.
- Flexible Speed Control - Adjustable via potentiometer (0 - 10V) or preset two-speed switch.
- Quiet Operation - Low noise levels starting at 35.1 dB(A) at 3m on low speed.
- Thermal Safety Fuse - Protects against overheating for continuous safe use.
Specifications
Specifications
| Parameter | Value |
|---|---|
| Nominal Diameter | 200mm |
| Max Airflow | 1100 m³/h |
| Voltage | 220-240V |
| Frequency | 50-60Hz |
| Max Power | 90W |
| Max Current | 0.80A |
| Insulation Class | Class II |
| IP Rating | IP45 (IPX5 in duct) |
| Max Ambient Temperature | 50°C |
| Weight | 4.6 kg |
| RPM | 2680 (max) |
| Noise Level at 3m | 44.5 dB(A) at max speed |
| Housing Material | Fire-resistant plastic resin (E2 class) |
What's in the box
What's in the box
- [1] x Vortice Lineo Inline Mixed Flow EC Fan - Lineo 200 ES | 200MM (8" Inch)
Downloads
Downloads
- Specification Sheet - Click Here
- Product Manual - Click Here
