Fantech Rapid Response 200 Ultra Quiet Ceiling Exhaust Fan with Run on Timer
Air Flow 216 M³/H | Power Consumption 30W | IPX4
Fantech Rapid Response 200 Ultra Quiet Ceiling Exhaust Fan with Run...
Description
Description
The Fantech Rapid Response 200 with run-on timer (3-15 minute adjustable) is a premium, ultra-quiet ceiling exhaust fan designed for effective removal of odours, steam, and damp air in small spaces like toilets, powder rooms, laundries, and cupboards. Engineered with advanced impeller and housing technology, this compact unit delivers powerful airflow while maintaining whisper-quiet performance at just 29 dB(A).
The integrated LED light offers tri-colour temperature settingswarm white (3000K), neutral white (4200K), and cool white (6000K)allowing customisation to match your interior lighting.
Dimesions
All dimensions in mm
Features
- Ultra Quiet Operation Low noise level at only 29 dB(A)
- High Airflow Efficiency Delivers 216 m3/h airflow
- Advanced Impeller & Housing Design Powerful performance with minimal noise
- Retrofit Compatible Fits standard 8 round cut-outs
- Integrated Non-Return Backdraft Damper Prevents air backflow
- Flexible Grille Options Round or square grilles in black or white
- Tri-Colour LED Lighting Warm (3000K), Neutral (4200K), Cool (6000K)
- Easy Installation High-strength swing clips & removable spigot
- Suits 100mm and 150mm Duct Sizes
- Rated for Continuous Run

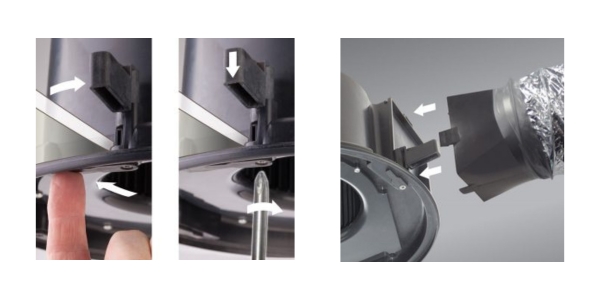

Installation
Fan Body
1. Rotate swing clips to hold the fan body in place.
2. Tighten screws so clips clamp onto ceiling board.
Long clip-in spigot makes installation & duct connection easier.
Specifications
Specifications
| Model No. | Description | Air Flow (m³/hr) | Air Flow (L/sec) | Fan Speed (RPM) | Noise @ 3m dB(A) | Fan Power (W) | LED Power (W) | Voltage (V) | Run-On Timer |
|---|---|---|---|---|---|---|---|---|---|
| RESPF8-T | Fan Body with Run-On Timer | 216 | 60 | 950 | 29 | 30 | - | 230-240 | Yes |
| RESPF8-T + RESPG8-SQWH-TRILED | Fan Body with Square LED Grille | 216 | 60 | 950 | 29 | 30 | 12 | 230-240 | Yes |
| RESPF8-T + RESPG8-RNWH-TRILED | Fan Body with Round LED Grille | 216 | 60 | 950 | 29 | 30 | 9 | 230-240 | Yes |
What's in the box
What's in the box
[1] x Fantech Rapid Response 200 Ultra Quiet Ceiling Exhaust Fan with Run on Timer
Downloads
Downloads
Specification Sheet - Click Here
