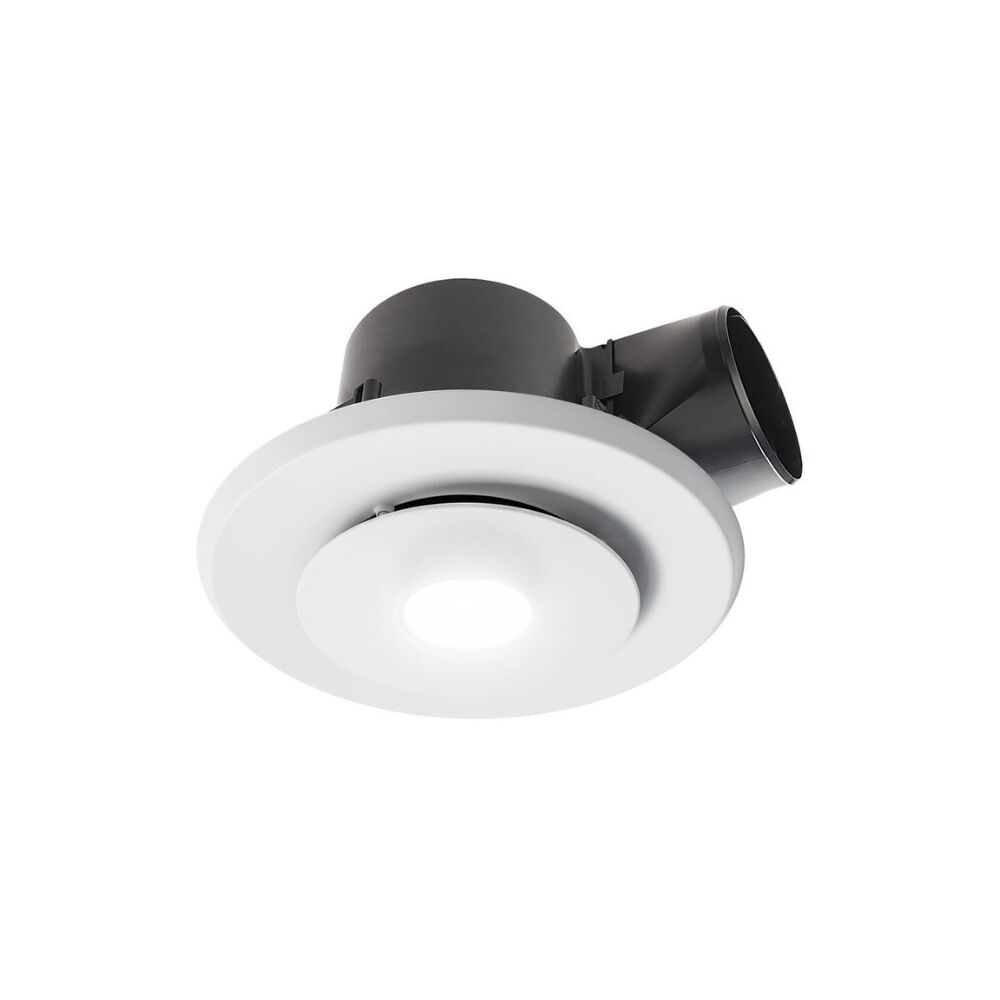

Fantech Rapid Response 250HP Ultra Quiet Ceiling Exhaust Fan

The Fantech Rapid Response 250HP is one of the most powerful and quiet ceiling-mounted exhaust fans in its class, delivering exceptional airflow and low-noise performance for high-moisture environments such as bathrooms and ensuites. Designed with an advanced impeller and housing structure, this model ensures maximum extraction with minimal air resistance, operating at just 37 dB(A) while moving 349 m3/h of air.

This unit is ideal for both new installations and retrofits, fitting directly into a standard 10 ceiling cut-out. It comes equipped with a low-resistance non-return backdraft damper, preserving thermal efficiency and preventing airflow reversal. The sealed-for-life ball bearing motor ensures long-term reliability, while high-strength swing clips and a removable spigot make for a quick and secure installation.

Choose from round or square grilles in a modern low-sheen finish (sold separately), with square grilles offering rotatable alignment to suit any ceiling orientation.

For enhanced control, a run-on timer model (RESPF150T) is also available, allowing adjustable operation between 315 minutes after the fan is switched off.

Features

• Ultra Quiet Operation Runs at just 37 dB(A) for silent performance
• High Airflow Extraction Moves up to 349 m3/h (97 L/s), ideal for wet areas
• Aerodynamic Impeller Design Boosts efficiency while reducing airflow resistance
• Fits Standard 10 Cut-Out Makes retrofitting quick and hassle-free
• Non-Return Damper Prevents backdraft and improves ventilation system performance
• Easy Installation High-strength swing clips and removable spigot included
• Ball Bearing Motor Sealed for life, built for continuous run applications
• Compatible Grilles Available Choose round or rotatable square fascias (sold separately)
• Optional Run-On Timer Version RESP150T model includes adjustable 315 minute delay
• Built to Last Durable construction with IPX4 splash resistance

Dimesions

RESPF150 comes with a spigot to suit a 150mm duct. All dimensions in mm.

Features

• Ultra Quiet Operation Low noise level at only 29 dB(A)
• High Airflow Efficiency Delivers 216 m3/h airflow
• Advanced Impeller & Housing Design Powerful performance with minimal noise
• Retrofit Compatible Fits standard 8 round cut-outs
• Integrated Non-Return Backdraft Damper Prevents air backflow

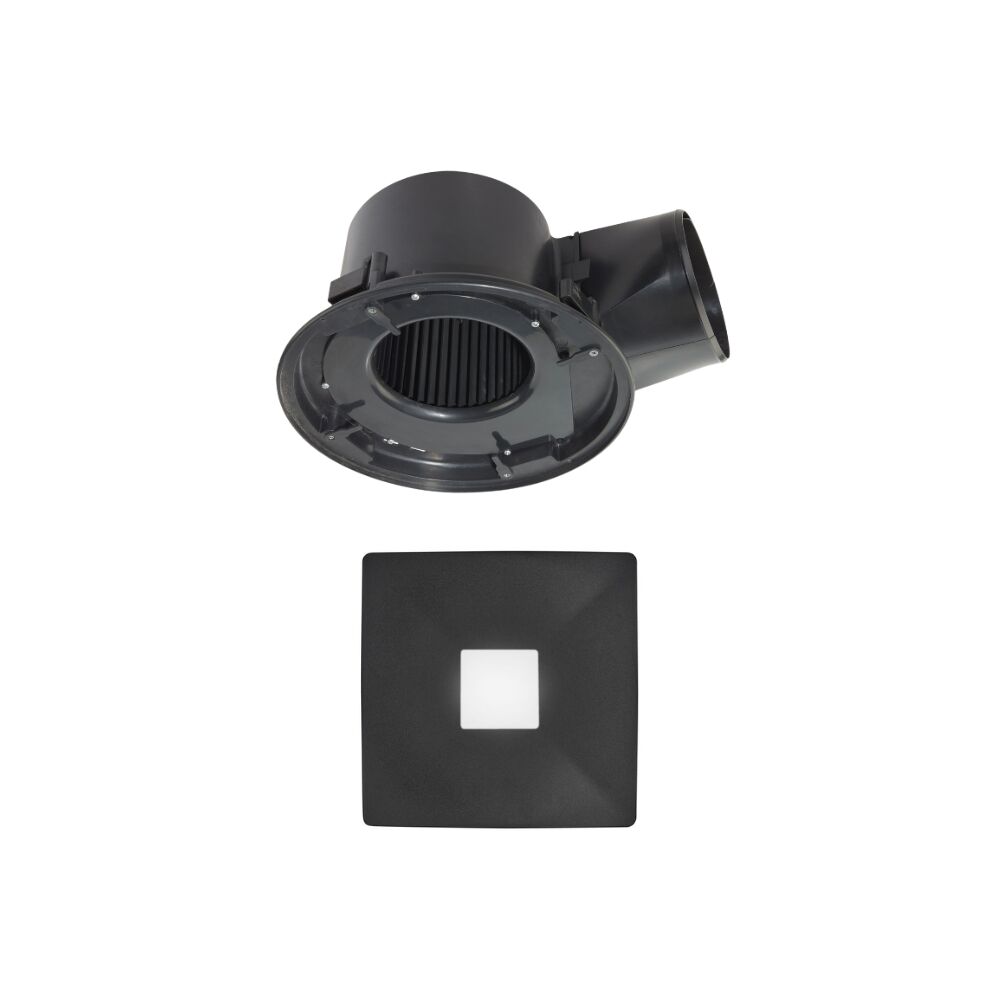

• Flexible Grille Options Round or square grilles in black or white
• Tri-Colour LED Lighting Warm (3000K), Neutral (4200K), Cool (6000K)
• Easy Installation High-strength swing clips & removable spigot
• Suits 100mm and 150mm Duct Sizes
• Rated for Continuous Run

Installation

Fan Body

1. Rotate swing clips to hold the fan body in place.
2. Tighten screws so clips clamp onto ceiling board.

Long clip-in spigot makes installation & duct connection easier.

[1] x Fantech Rapid Response 250HP Ultra Quiet Ceiling Exhaust Fan

Specification Sheet - Click Here
