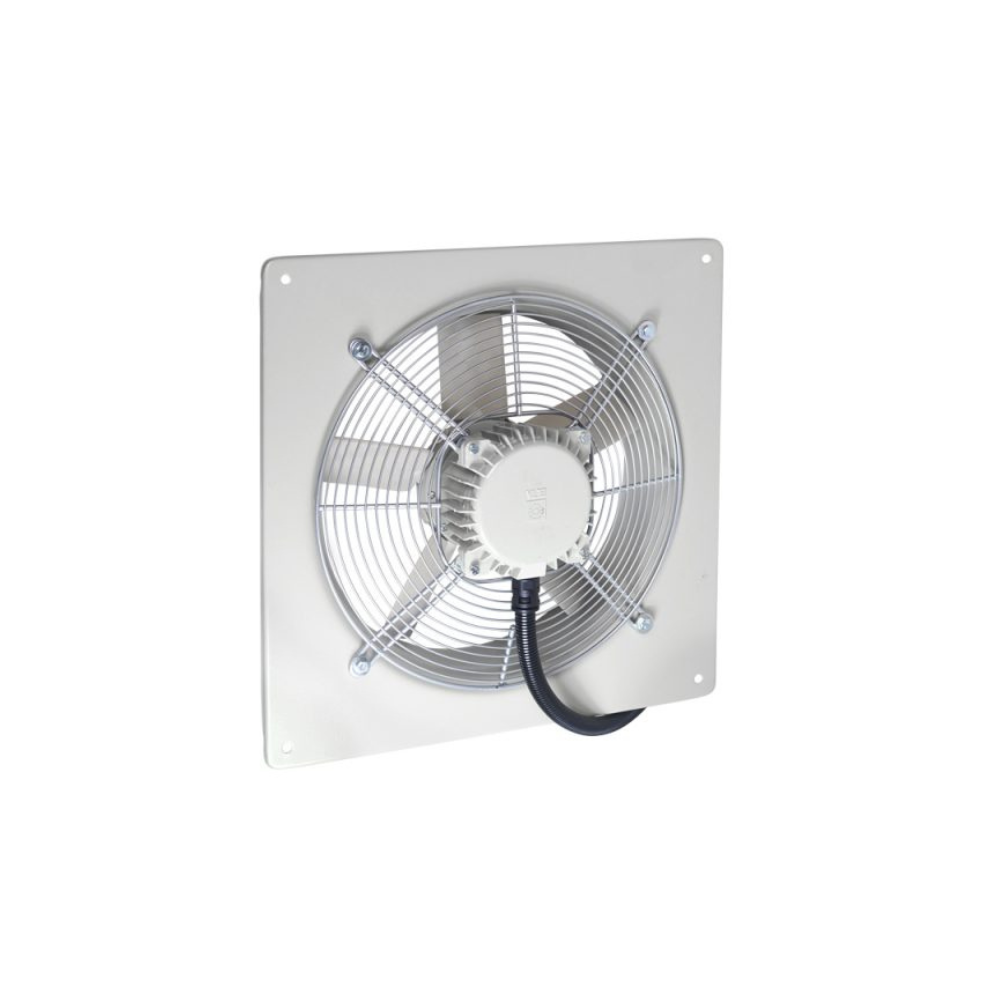

Fantech Compact 2000 Wall Mounted Square Plate Axial Exhaust Fans - 1 Phase | CPE0354F

The Fantech CPE0354F Compact 2000 Axial Exhaust Fan provides reliable ventilation for commercial and industrial spaces. With a 350MM (14" Inch) diameter and maximum airflow of 3348 M3/H, it is ideal for warehouses, workshops, factories, and processing facilities. Built from galvanised steel with a durable polyester epoxy paint finish, this fan delivers long-lasting performance even in harsh environments. Its single phase motor is speed controllable for energy efficiency, while the inlet guard is included as standard for safety. Designed for easy installation, the unit comes with a flying lead, junction box and 20mm flexible conduit. Rated IP55, the fan can be mounted in any position, ensuring flexibility in system design.

• Strong Airflow - Moves up to 3348 M³/H for efficient ventilation.
• Durable Build - Galvanised steel construction with epoxy coating.
• Energy Saving - Single phase motor allows speed control.
• Quiet Operation - Noise level of 49 dB(A) @ 3m.
• Safety Standard - Inlet guard supplied as standard.
• Quick Installation - Supplied with flying lead, junction box and flexible conduit.
• Flexible Mounting - Can be installed in any orientation.

• Product Code: CPE0354F

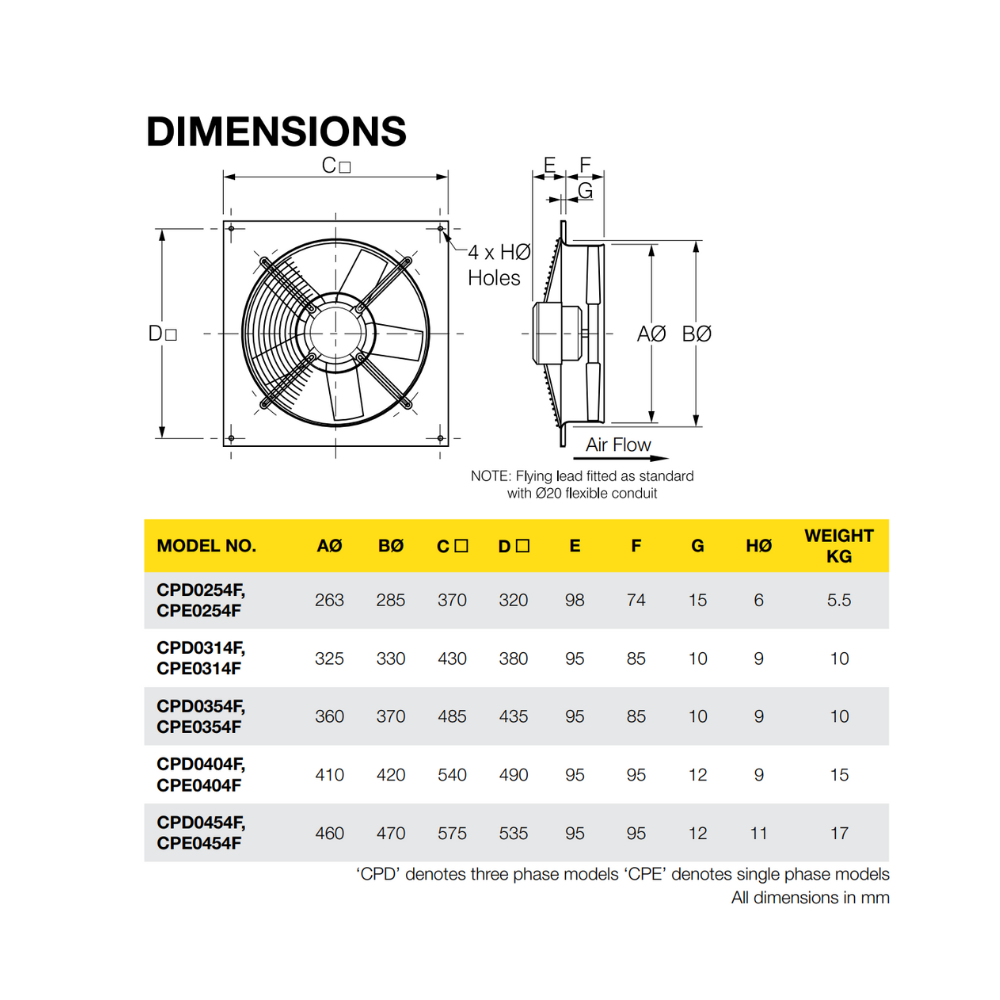

• Flange Size: 350MM (14" Inch)
• Air Flow: 3348 M³/H
• Speed: 22 rps
• Power: 0.09 kW
• Current: 0.9 Amps
• Noise Level: 49 dB(A) @ 3m
• Max Pressure: 76 Pa
• Ingress Protection: IP55
• Mounting: Wall Mounted, Any Position

• [1] x Fantech Compact 2000 Wall Mounted Square Plate Axial Exhaust Fans - 1 Phase | CPE0354F

• Specification Sheet - Click Here
