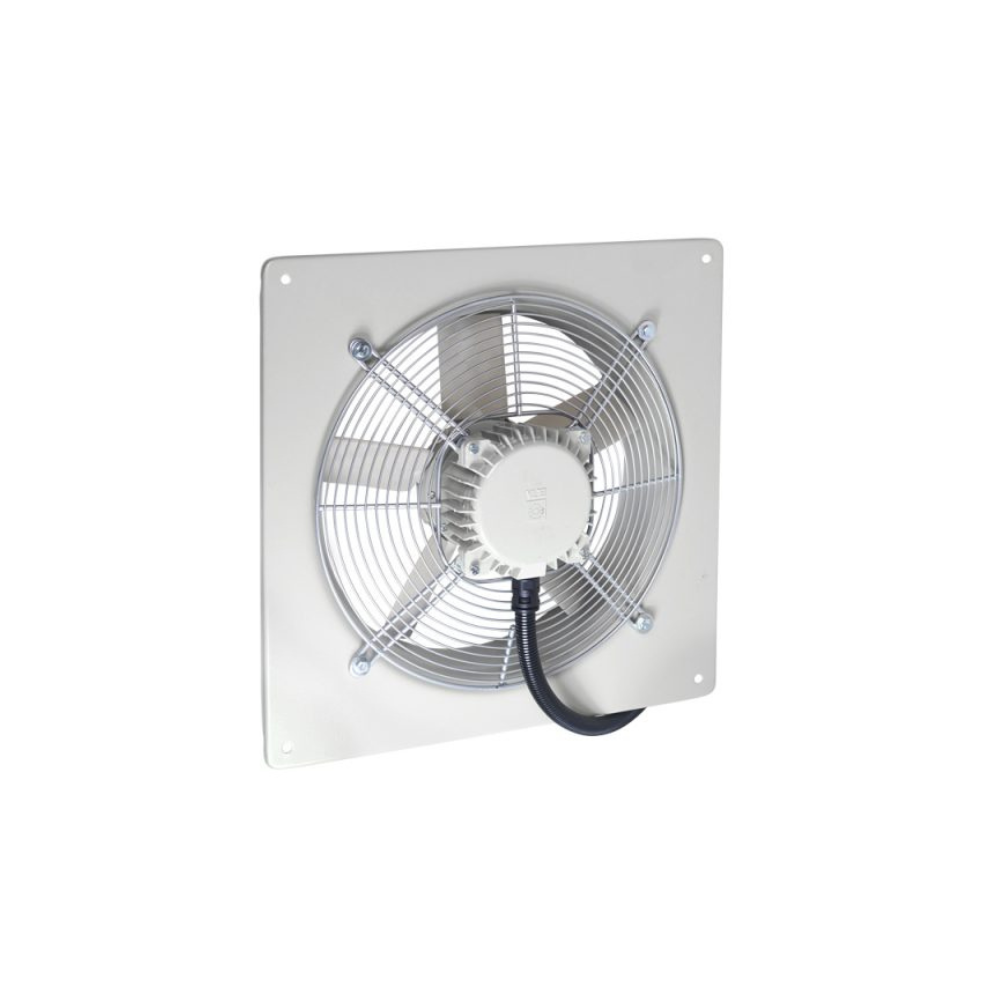

Fantech Compact 2000 Wall Mounted Square Plate Axial Exhaust Fans - 1 Phase | CPE454F

The Fantech CPE0454F Compact 2000 Axial Exhaust Fan is engineered for heavy-duty commercial and industrial ventilation applications. With a 450MM (18" Inch) diameter and an airflow capacity of 5940 M3/H, this fan is ideal for warehouses, factories, workshops, and other large facilities requiring efficient air extraction. Its galvanised steel construction and polyester epoxy paint finish deliver excellent durability in harsh conditions. The single phase motor is speed controllable for flexible airflow management and energy savings. Safety is ensured with an inlet guard fitted as standard, and installation is simple thanks to the flying lead, junction box and 20mm flexible conduit. Rated to IP55, the CPE0454F is suitable for a wide range of demanding environments and can be mounted in any position.

• Powerful Airflow - Provides up to 5940 M³/H for large-scale ventilation.
• Strong Build - Galvanised steel body with protective epoxy coating.
• Energy Control - Speed controllable single phase motor.
• Low Noise - Operates at 54 dB(A) @ 3m for quieter performance.
• Safe Operation - Inlet guard supplied as standard.
• Fast Installation - Supplied with flying lead, junction box and conduit.
• Flexible Positioning - Can be mounted in any orientation.

• Product Code: CPE0454F

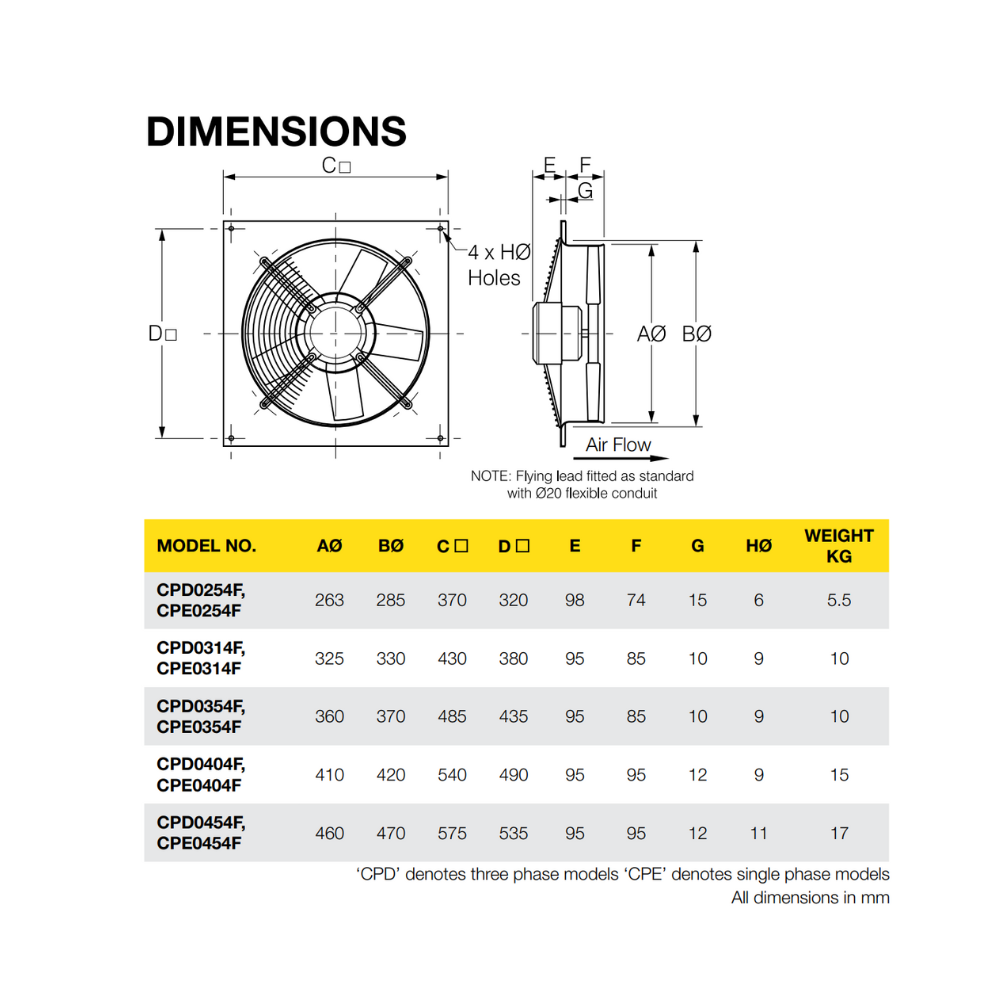

• Flange Size: 450MM (18" Inch)
• Air Flow: 5940 M³/H
• Speed: 22 rps
• Power: 0.25 kW
• Current: 1.8 Amps
• Noise Level: 54 dB(A) @ 3m
• Max Pressure: 108 Pa
• Ingress Protection: IP55
• Mounting: Wall Mounted, Any Position

• [1] x Fantech Compact 2000 Wall Mounted Square Plate Axial Exhaust Fans - 1 Phase | CPE454F

• Specification Sheet - Click Here
