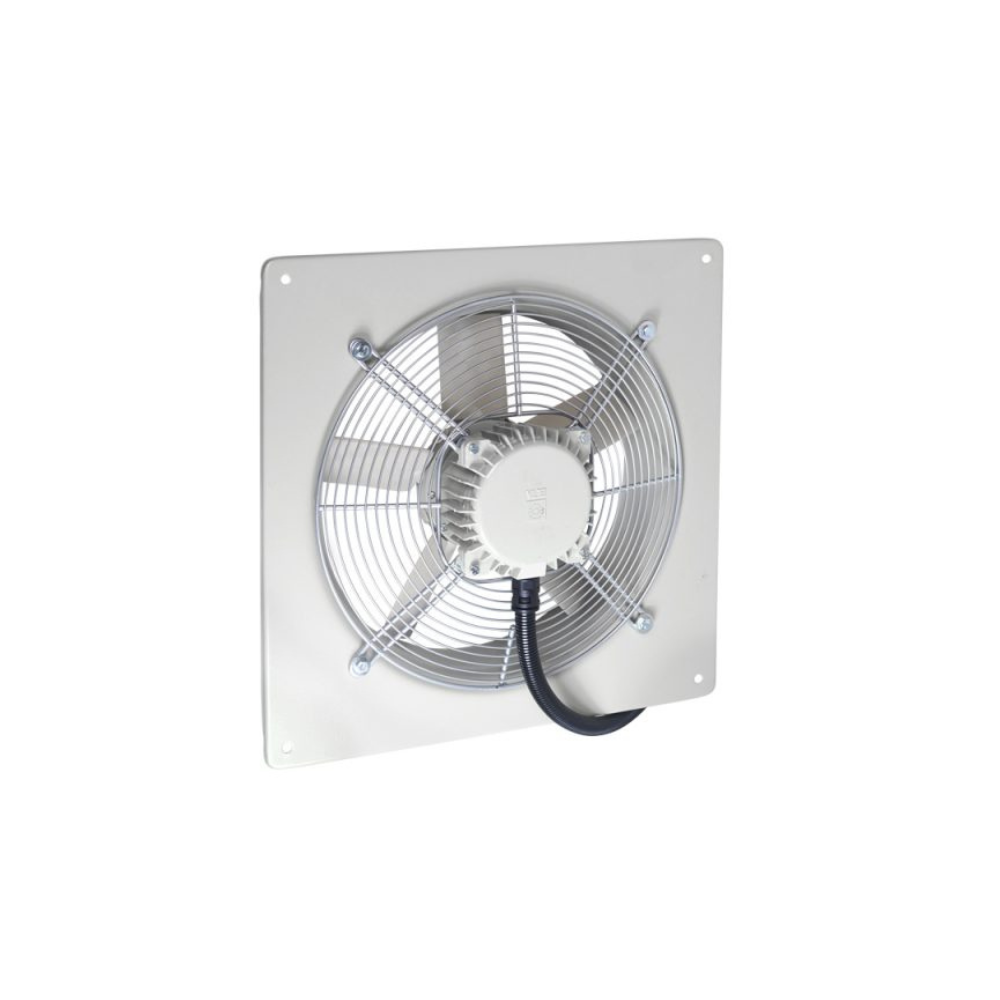

Fantech Compact 2000 Wall Mounted Square Plate Axial Exhaust Fans - 3 Phase | CPD0254F

The Fantech Compact 2000 CPD0254F is a heavy duty 250MM wall mounted square plate axial exhaust fan designed for commercial and industrial ventilation applications. Built with robust galvanised steel construction and finished in long lasting epoxy paint, it provides reliable performance in demanding environments.

This 3 phase exhaust fan delivers an impressive airflow of 972 M3/H while operating at a quiet 42 dB(A) noise level at 3 metres. It comes with an integrated inlet guard, a flying lead with junction box, and flexible conduit for straightforward installation. The CPD0254F is capable of operating in temperatures ranging from -200C up to 700C and can be mounted in any position.

Engineered for efficiency and durability, the CPD0254F is an excellent choice for factories, warehouses, workshops, and other facilities requiring reliable air extraction or supply.

• High performance airflow - 972 M³/H at 22 rps.
• Robust construction - Galvanised steel plate with epoxy paint finish.
• Low noise level - Operates at just 42 dB(A) @3m.
• Inlet guard - Supplied as standard for safe operation.
• Temperature tolerance - Suitable for -20°C to 70°C operation.
• Flexible installation - Can be mounted in any position.
• Easy to install - Comes pre-fitted with flying lead, junction box, and conduit.
• IP55 protection - Resistant to dust and water ingress.

• Product Code: CPD0254F
• Diameter: 250MM (10" Inch)
• Airflow: 972 M³/H
• Speed: 22 rps
• Power: 0.12kW
• Current: 0.5A
• Noise Level: 42 dB(A) @3m
• Max Pressure: 47 Pa
• Operating Temp Range: -20°C to 70°C
• Protection Rating: IP55

• [1] x Fantech Compact 2000 Wall Mounted Square Plate Axial Exhaust Fans - 3 Phase | CPD0254F

• Specification Sheet - Click Here
