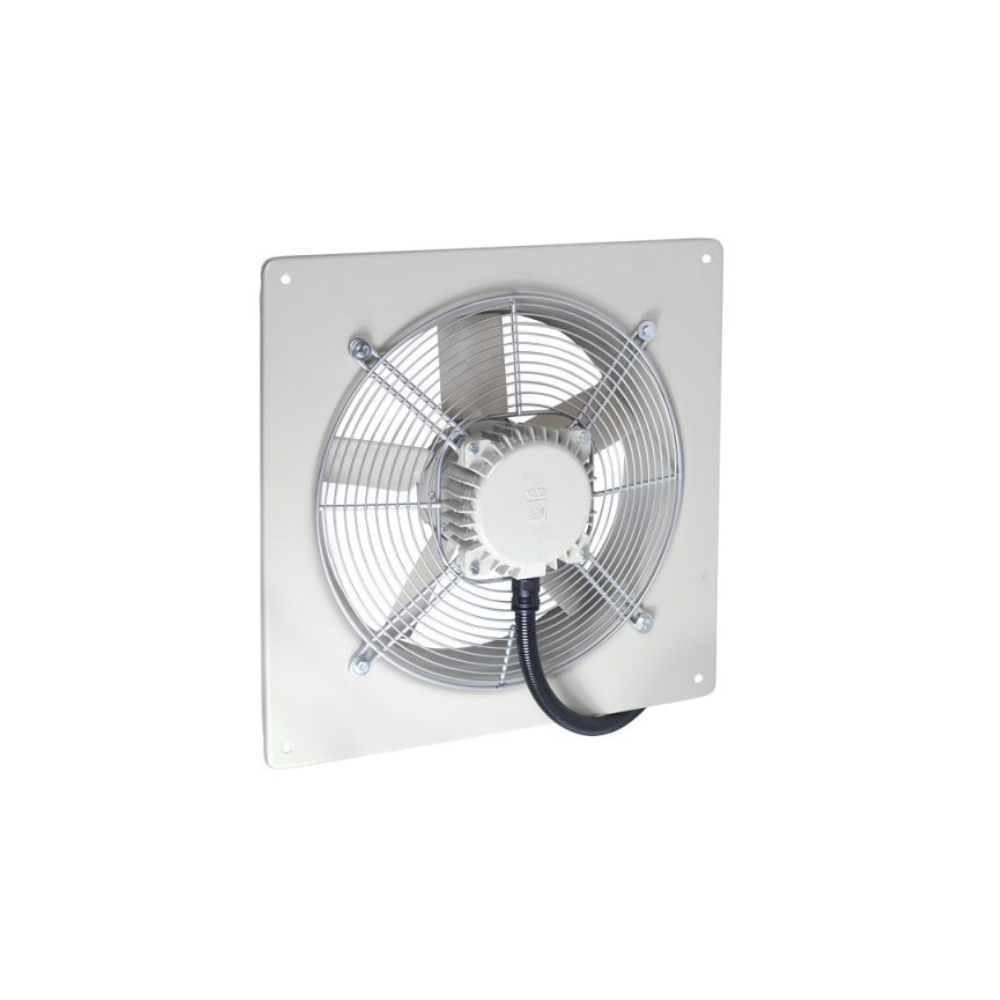

Fantech Compact 2000 Wall Mounted Square Plate Axial Exhaust Fans - 3 Phase | CPD454F

The Fantech Compact 2000 CPD0454F is a powerful 450MM wall mounted square plate axial exhaust fan designed for high performance industrial and commercial ventilation. Constructed from galvanised steel with a durable epoxy paint finish, it ensures strength, reliability, and long lasting operation in demanding environments.

Delivering an impressive airflow of 5940 M3/H at a noise level of just 54 dB(A), the CPD0454F is ideal for ventilating large industrial spaces such as warehouses, factories, workshops, and processing facilities. The 3 phase motor provides consistent performance, while the fan can be mounted in any position for maximum installation flexibility.

With an operating temperature range of -200C to 700C and an IP55 protection rating, this fan is engineered to perform reliably in tough conditions while keeping energy use efficient.

• Very high airflow - 5940 M³/H at 22 rps.
• Durable construction - Galvanised steel plate with epoxy paint coating.
• Low noise - 54 dB(A) @3m for quiet yet powerful performance.
• Inlet guard - Supplied as standard for added protection.
• Wide operating range - Suitable for -20°C to 70°C applications.
• Flexible installation - Can be mounted in any position.
• Easy to install - Comes with flying lead, junction box, and conduit pre-fitted.
• IP55 rating - Resistant to dust and water ingress.

• Product Code: CPD0454F

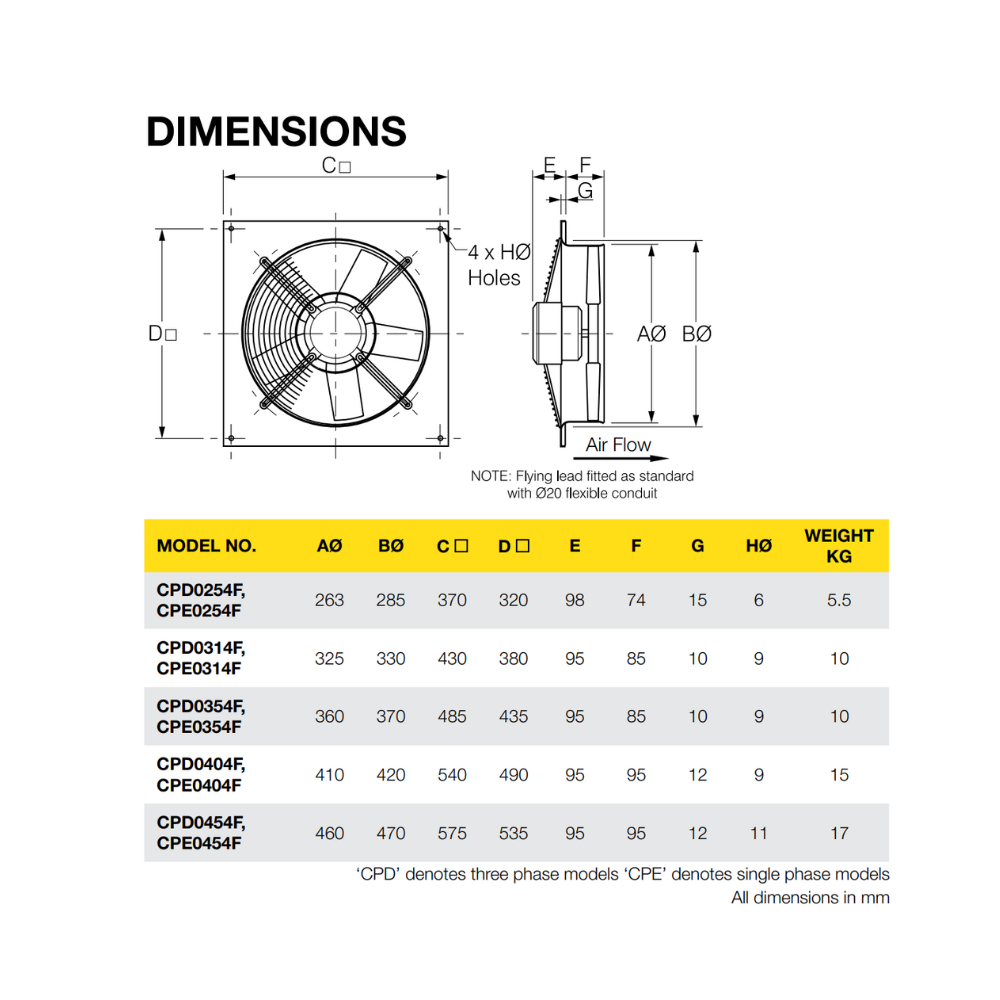

• Diameter: 450MM (18" Inch)
• Airflow: 5940 M³/H
• Speed: 22 rps
• Power: 0.37kW
• Current: 1.4A
• Noise Level: 54 dB(A) @3m
• Max Pressure: 108 Pa
• Operating Temp Range: -20°C to 70°C
• Protection Rating: IP55

• [1] x Fantech Compact 2000 Wall Mounted Square Plate Axial Exhaust Fans - 3 Phase | CPD454F

• Specification Sheet - Click Here
