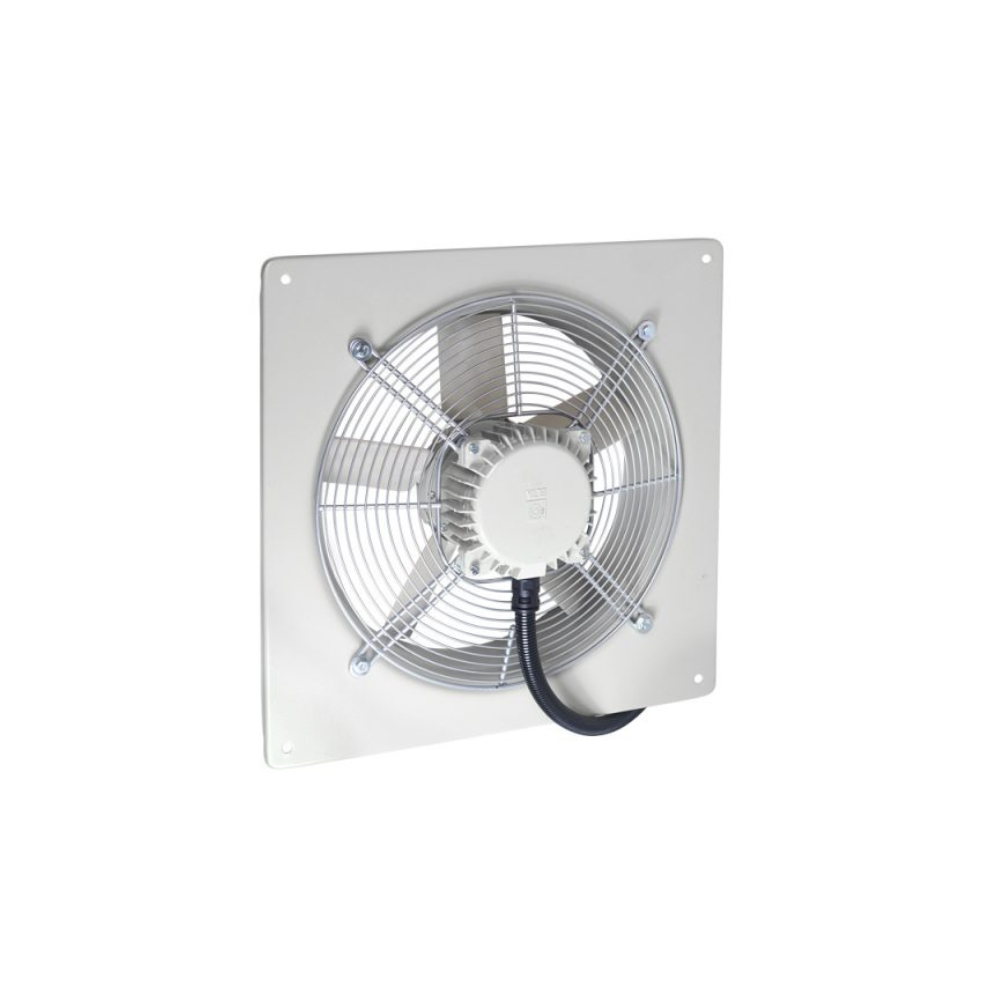

Fantech Compact 2000 Wall Mounted Square Plate Axial Exhaust Fans - 3 Phase | CDP0314F

The Fantech Compact 2000 CPD0314F is a durable 310MM wall mounted square plate axial exhaust fan engineered for commercial and industrial ventilation. Built from galvanised steel and finished with epoxy paint, it ensures long lasting strength and resistance in tough environments.

With a maximum airflow of 2232 M3/H and quiet operation at 45 dB(A), the CPD0314F provides efficient extraction or supply of air for medium to large spaces. It comes standard with an inlet guard and includes a flying lead, junction box, and flexible conduit to make installation quick and straightforward. Suitable for use in factories, warehouses, workshops, and other heavy duty applications, this 3 phase exhaust fan operates within a -200C to 700C temperature range.

Compact, reliable, and highly efficient, the CPD0314F is ideal for facilities needing consistent and dependable airflow.

• High capacity airflow - 2232 M³/H at 22 rps.
• Robust build - Galvanised steel construction with epoxy finish.
• Quiet operation - Runs at just 45 dB(A) @3m.
• Inlet guard - Supplied as standard for added safety.
• Wide operating range - Performs in -20°C to 70°C conditions.
• Flexible mounting - Can be installed in any orientation.
• Easy to install - Pre-fitted with flying lead, junction box, and conduit.
• IP55 protection - Resistant to dust and water ingress.

• Product Code: CPD0314F

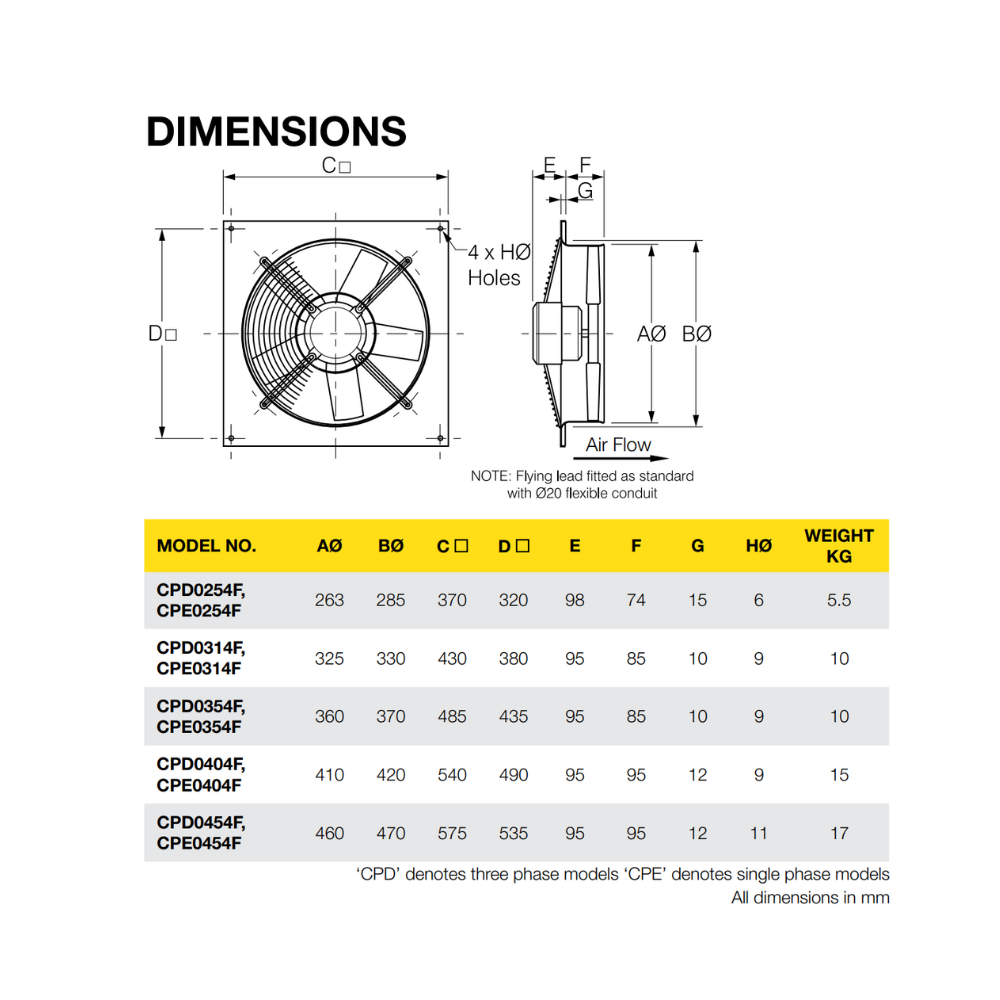

• Diameter: 310MM (12" Inch)
• Airflow: 2232 M³/H
• Speed: 22 rps
• Power: 0.12kW
• Current: 0.5A
• Noise Level: 45 dB(A) @3m
• Max Pressure: 56 Pa
• Operating Temp Range: -20°C to 70°C
• Protection Rating: IP55

• [1] x Fantech Compact 2000 Wall Mounted Square Plate Axial Exhaust Fans - 3 Phase | CDP0314F

• Specification Sheet - Click Here
