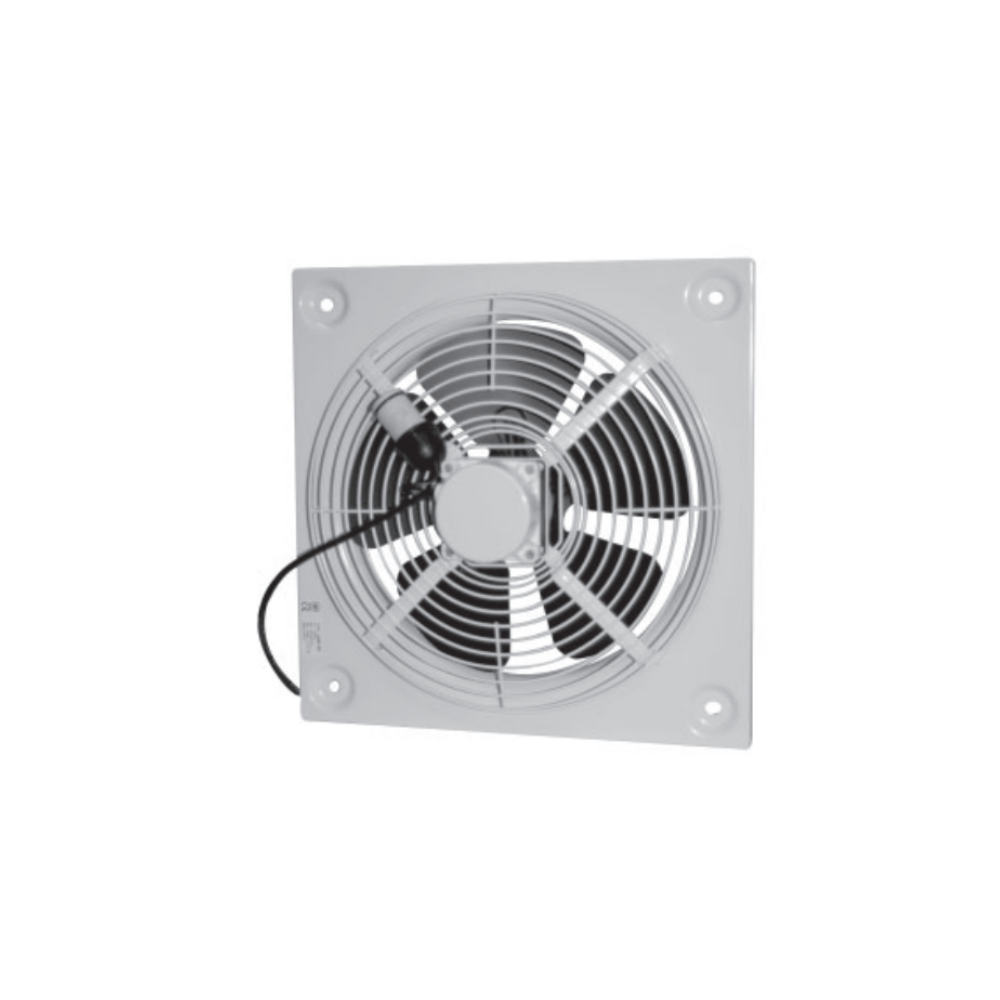

Fantech HXM Series Wall Mounted Square Plate AC Exhaust Fan - IP44 | 1 Phase | HXM-250

The Fantech HXM-250 is a durable wall mounted square plate exhaust fan engineered for general ventilation in commercial and light industrial applications. With a 250MM (10" Inch) fan diameter, it delivers up to 828 M3/H airflow, making it suitable for cafes, bars, retail spaces, wine cellars and workshops. Its galvanised steel construction with epoxy polyester coating provides long-lasting corrosion resistance. The finger-proof inlet guard and thermal motor protection ensure safe and reliable operation. The motor is speed controllable, giving installers and users the flexibility to balance airflow and noise performance. Rated IP44 with Class B insulation, the HXM-250 runs on 230V single phase supply and is an excellent choice for Australian conditions.

• 250MM (10" Inch) fan size - ideal for small to medium ventilation needs.
• Airflow up to 828 M³/H - efficient exhaust performance.
• Speed controllable motor - compatible with controllers for adjustable airflow.
• Safe operation - finger-proof inlet guard and thermal motor protection.
• Durable construction - galvanised steel plate with epoxy polyester coating.
• Insulation Class B - motor designed for reliability and continuous duty.
• Ingress Protection IP44 - suitable for demanding commercial settings.

• Model - HXM-250
• Fan Diameter - 250MM (10" Inch)
• Airflow - 828 M³/H
• Power - 30W
• Voltage - 230V 50Hz, 1 Phase
• Current - 0.1A
• Noise Level - 34 dB(A) @3m
• Speed - 1380 RPM
• Max Pressure - 34 Pa
• Insulation Class - Class B
• Ingress Protection - IP44
• Construction - Galvanised steel with epoxy polyester finish
• Motor Type - Capacitor run, speed controllable
• Mounting - Wall mounted square plate
• Max Ambient Temp - 40°C

• [1] x FFantech HXM Series Wall Mounted Square Plate AC Exhaust Fan - IP44 | 1 Phase | HXM-250

• Specification Sheet - Click Here
