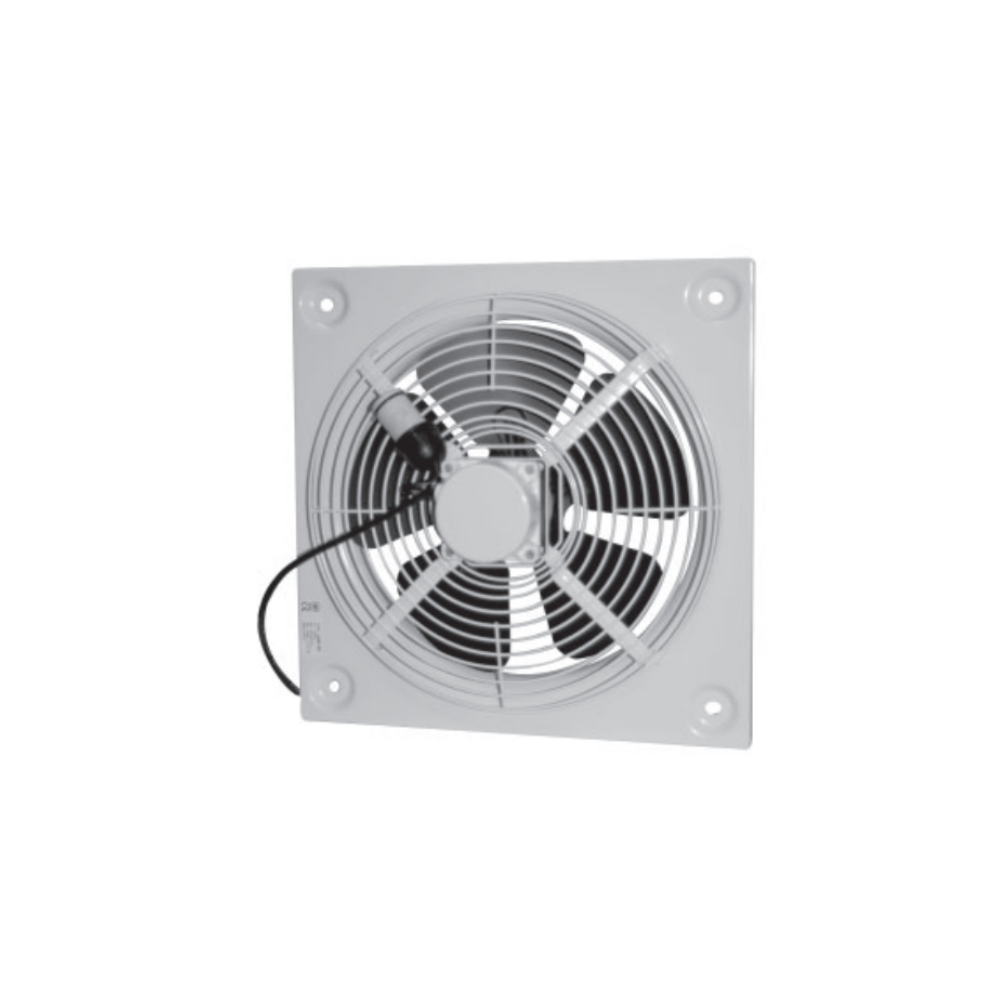

Fantech HXM Series Wall Mounted Square Plate AC Exhaust Fan - IP44 | 1 Phase | HXM-300

The Fantech HXM-300 is a versatile wall mounted square plate exhaust fan engineered for general ventilation across commercial and light industrial applications. With a 300MM (12" Inch) fan diameter, it delivers up to 1188 M3/H airflow, making it an excellent solution for cafes, bars, retail outlets, wine cellars and workshops. Constructed from galvanised steel with an epoxy polyester finish, it ensures durability and corrosion resistance. Safety features include a finger-proof inlet guard and thermal motor protection. Its speed controllable motor provides flexible airflow management. Rated IP44 with Class B insulation, the HXM-300 operates on 230V single phase supply, offering dependable performance for Australian environments.

• 300MM (12" Inch) fan size - designed for wall mounting in medium spaces.
• Airflow up to 1188 M³/H - powerful performance for commercial ventilation.
• Speed controllable motor - compatible with controllers for precise airflow control.
• Finger-proof inlet guard - enhances operational safety.
• Durable steel construction - galvanised plate with epoxy polyester coating.
• Thermal motor protection - prevents overheating during extended use.
• Insulation Class B - ensures reliable motor performance.
• Ingress Protection IP44 - resistant to dust and splashing water.

• Model - HXM-300
• Fan Diameter - 300MM (12" Inch)
• Airflow - 1188 M³/H
• Power - 41W
• Voltage - 230V 50Hz, 1 Phase
• Current - 0.2A
• Noise Level - 41 dB(A) @3m
• Speed - 1380 RPM

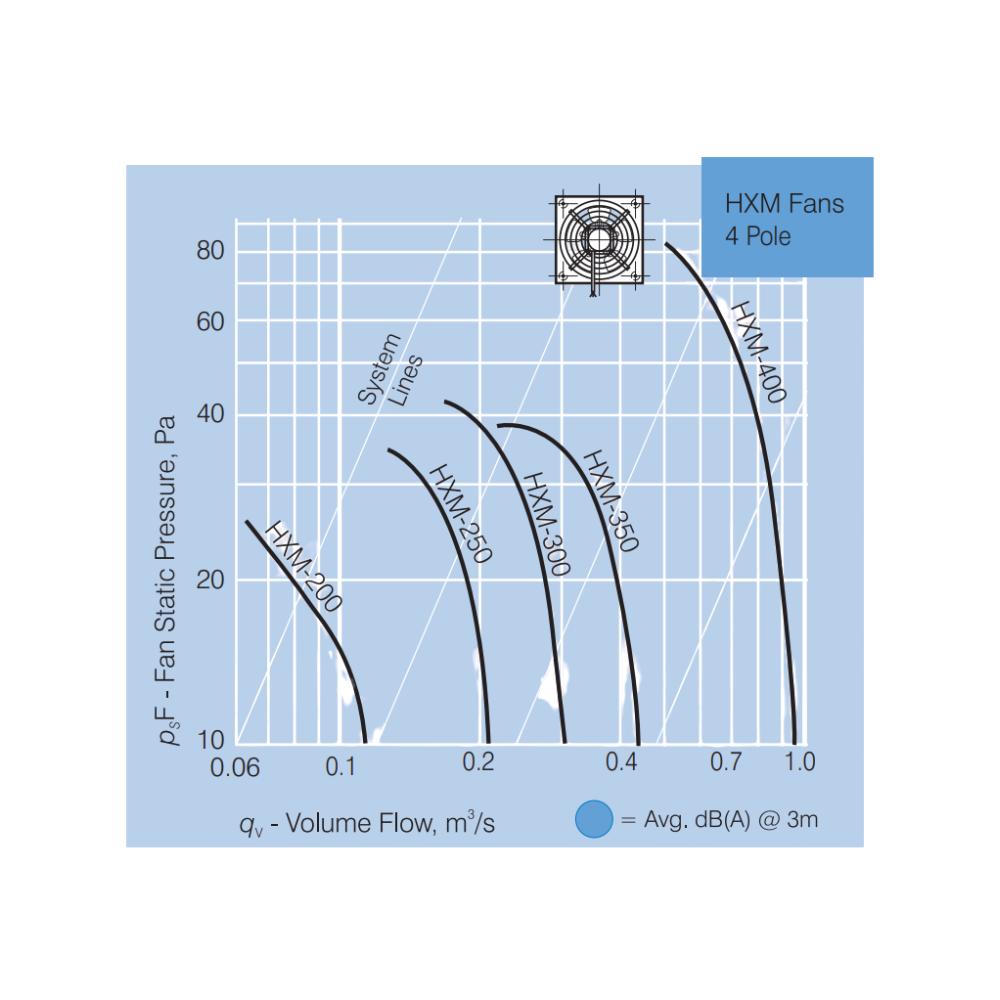

• Max Pressure - 42 Pa
• Insulation Class - Class B
• Ingress Protection - IP44
• Construction - Galvanised steel with epoxy polyester finish
• Motor Type - Capacitor run, speed controllable
• Mounting - Wall mounted square plate
• Max Ambient Temp - 40°C

• [1] x Fantech HXM Series Wall Mounted Square Plate AC Exhaust Fan - IP44 | 1 Phase | [Model: HXM-300]

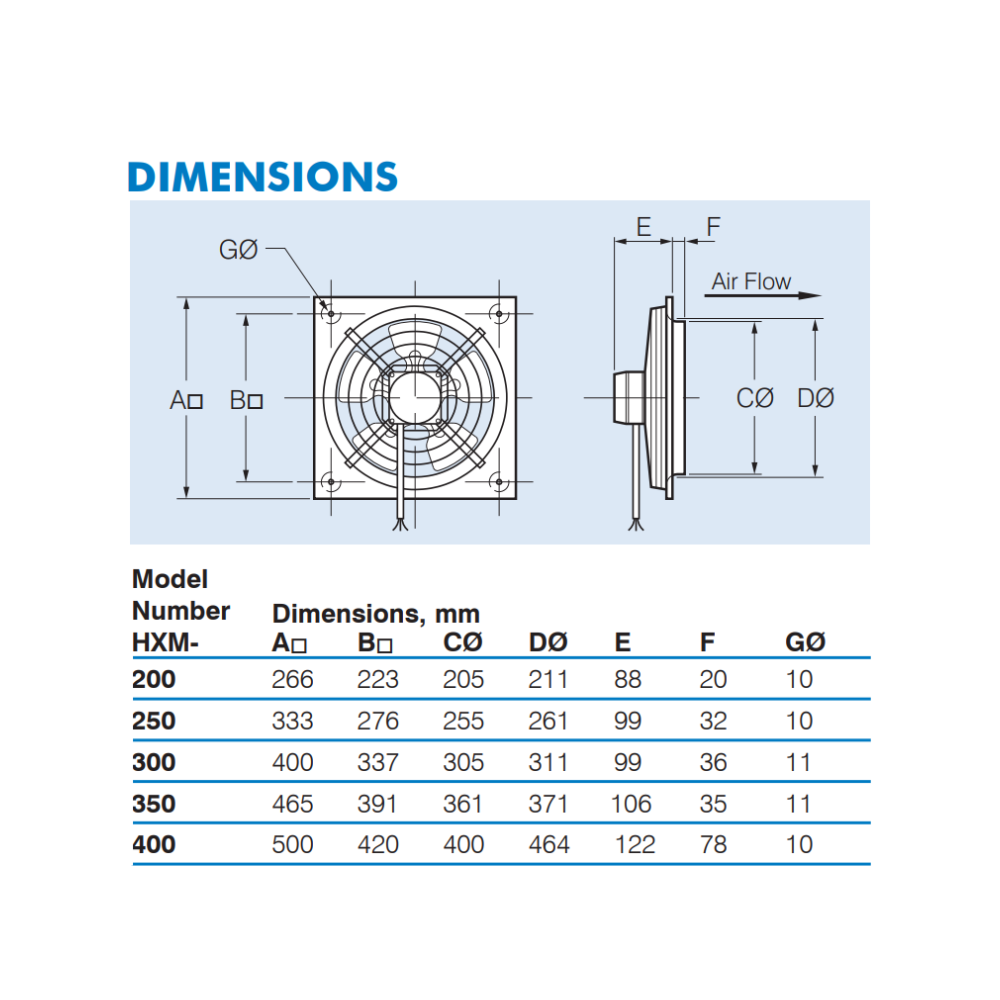

• Specification Sheet - Click Here
