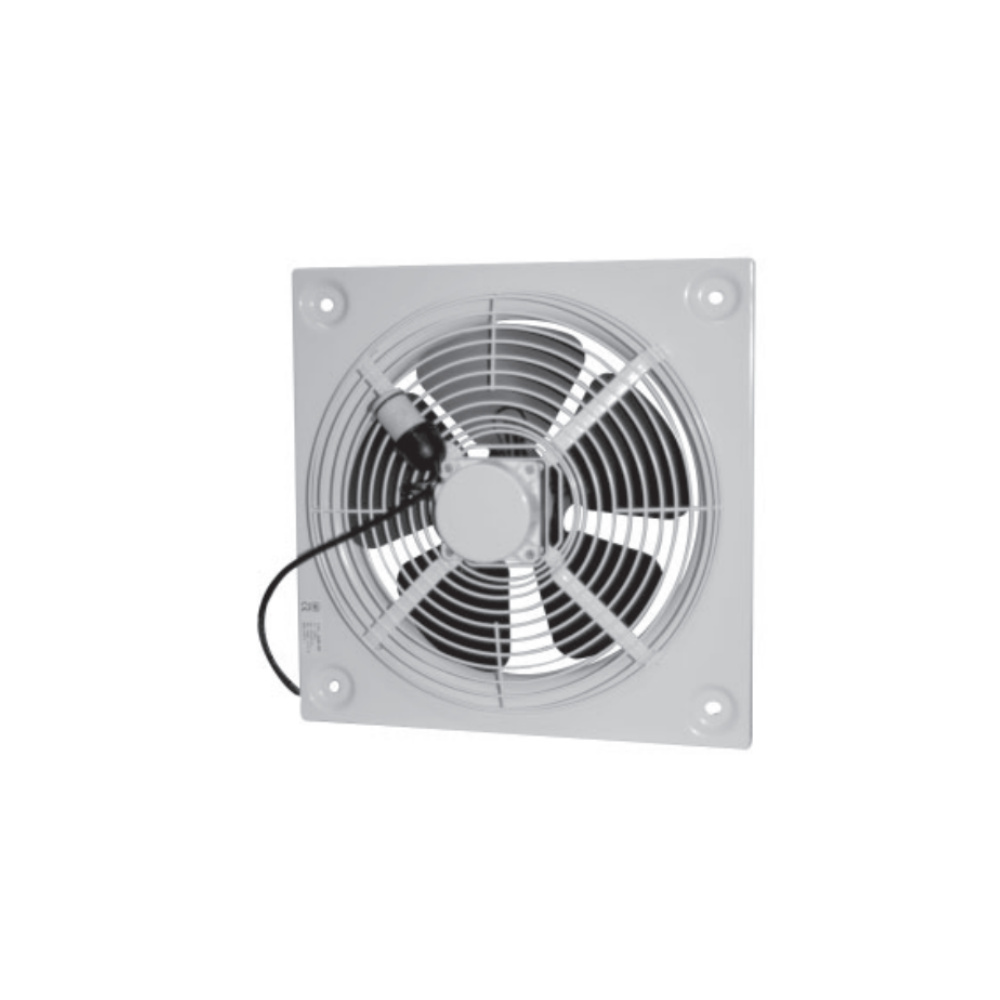

Fantech HXM Series Wall Mounted Square Plate AC Exhaust Fan - IP44 | 1 Phase | HXM-400

The Fantech HXM-400 is the largest in the HXM Series of wall mounted square plate exhaust fans, delivering powerful general ventilation for commercial and light industrial spaces. With a 400MM (16" Inch) fan diameter, it provides an impressive 3672 M3/H airflow, making it suitable for bars, cafes, wine cellars, retail outlets, workshops, and other larger environments. The unit features a robust galvanised steel plate with epoxy polyester finish for durability. Safety is ensured with a finger-proof inlet guard and thermal protection. This model incorporates a high-quality external rotor motor with Class F insulation, and remains speed controllable for adjustable airflow. Rated IP44, the HXM-400 runs on standard 230V single phase supply, delivering reliable ventilation in Australian conditions.

• 400MM (16" Inch) fan size - largest in the HXM series for maximum airflow.
• Airflow up to 3672 M³/H - powerful ventilation for larger commercial spaces.
• External rotor motor - reliable performance with Class F insulation.
• Speed controllable motor - adjustable airflow with compatible controllers.
• Finger-proof inlet guard - ensures safe operation.
• Durable build - galvanised steel plate with epoxy polyester finish.
• Thermal motor protection - safeguards motor during heavy-duty use.
• Ingress Protection IP44 - dust and splash resistant.

• Model - HXM-400
• Fan Diameter - 400MM (16" Inch)
• Airflow - 3672 M³/H
• Power - 150W
• Voltage - 230V 50Hz, 1 Phase
• Current - 0.7A
• Noise Level - 49 dB(A) @3m
• Speed - 1260 RPM

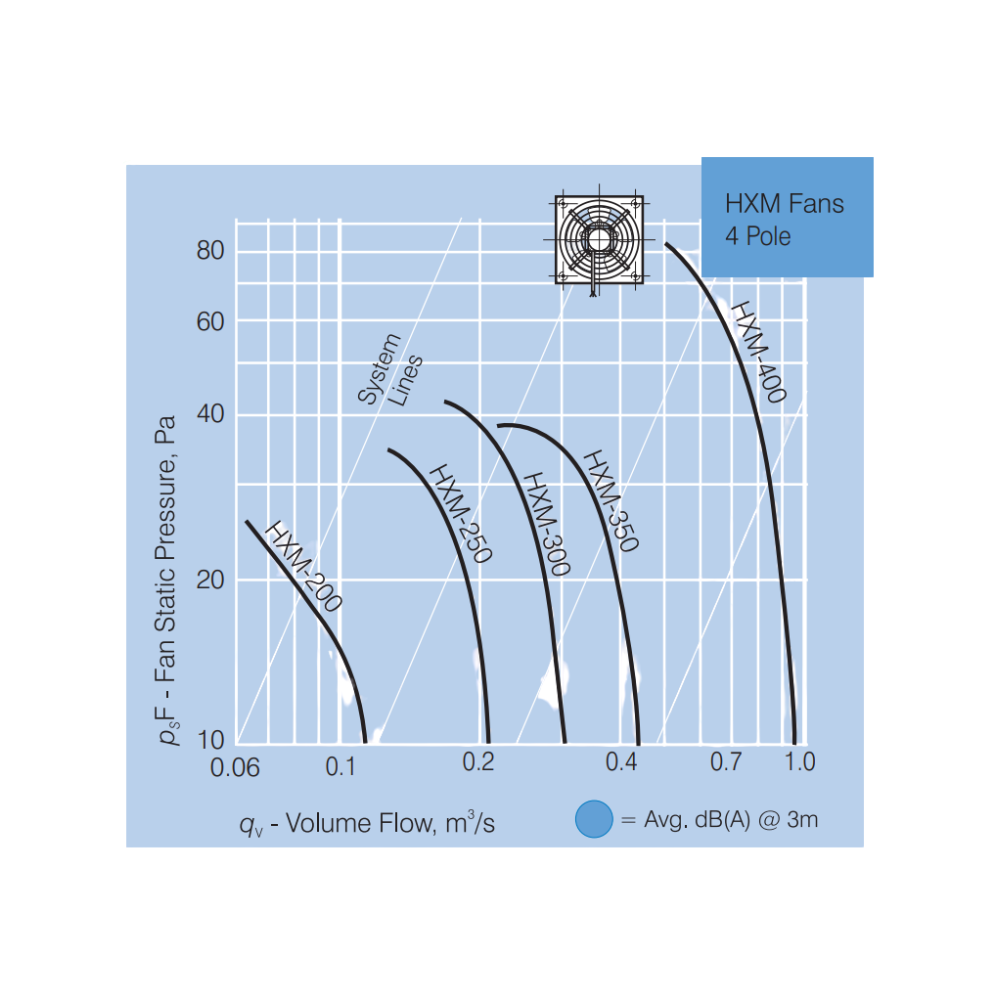

• Max Pressure - 82 Pa
• Insulation Class - Class F
• Ingress Protection - IP44
• Construction - Galvanised steel with epoxy polyester finish
• Motor Type - External rotor, speed controllable
• Mounting - Wall mounted square plate
• Max Ambient Temp - 40°C

• [1] x Fantech HXM Series Wall Mounted Square Plate AC Exhaust Fan - IP44 | 1 Phase | HXM-400

• Specification Sheet - Click Here
