Blauberg 1-Room Standard Heat Transfer Kit - 150MM Blauberg Exhaust Fan | 560 M3/H

Transform your homes heating efficiency and comfort with the Blauberg 1-Room Standard Heat Transfer Kit. This professional-grade system captures excess warmth from one room, such as a living area with a fireplace or heater, and distributes it quietly into another room, helping you create a balanced and comfortable living environment. Designed for both DIY homeowners and professional installers, the kit delivers the perfect combination of technical performance and user-friendly installation. The result is a cozier home, lower heating costs, and minimal disruption to your lifestyle.

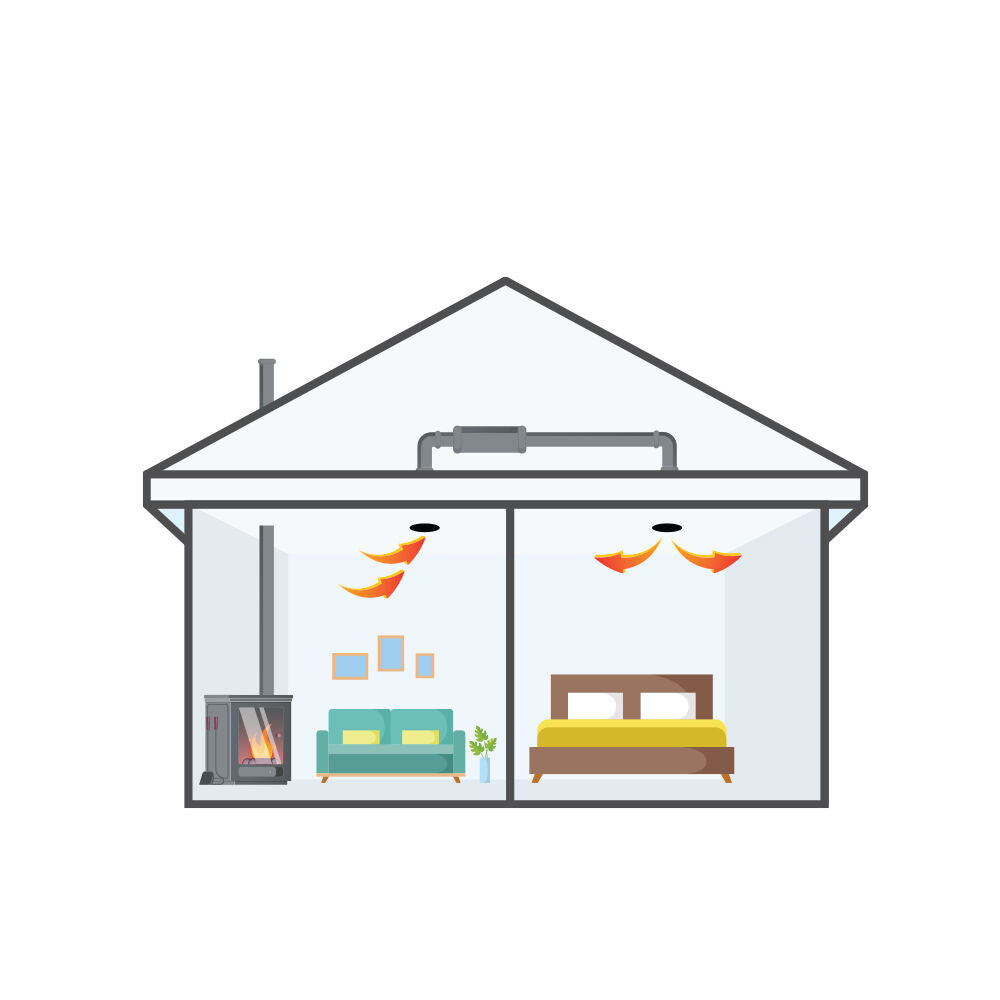

By reusing the warm air that would otherwise accumulate at the ceiling, this heat transfer system reduces the need for additional heaters, ultimately saving on energy bills. The system taps into the principle that warm air naturally rises capturing that trapped warmth and moving it efficiently where its needed most. Whether youre looking to heat a bedroom from your lounge or maintain a consistent temperature across spaces, this one-room kit is a cost-effective, reliable solution. Built from high-quality components including galvanized steel, stainless steel, and ABS plastic, this kit is made to perform reliably year after year, even in challenging Australian conditions.

Features & Benefits:

• Energy-Efficient Heat Redistribution - Slash heating costs by making better use of the warmth you already generate. The powerful inline fan draws warm air from one space and pushes it into another, reducing the burden on heaters and helping you save energy.
• Improved Room-to-Room Comfort - Experience even, consistent warmth throughout your home. Say goodbye to hot and cold spots redistributed air ensures that no room is left cold or uncomfortable.
• Quiet yet Powerful Operation - The Blauberg Turbo mixed-flow fan combines strong airflow with low-noise operation. Its aerodynamic blade design and sound-absorbing construction help maintain a quiet, peaceful environment while delivering an impressive 560 m3/h of airflow.
• High Build Quality & Durability - Every component is designed to last. The Blauberg fan features a tough galvanized steel housing, the adjustable ceiling grilles are molded from UV-stabilized ABS plastic, and the duct clamps are made from rust-resistant stainless steel. The insulated flexible duct is tear-resistant and fire-retardant, ensuring safe and reliable performance.
• Easy Installation (DIY-Friendly) - Everything you need for installation is included. The fan comes with a plug-and-play lead and an integrated mounting foot, making setup straightforward for DIY enthusiasts and professional installers alike. The adjustable grilles allow you to control airflow volume, while the flexible duct, hanging strap, and clamps ensure a neat, secure installation with minimal hassle.

For those who need the details, below are key technical specs of the Fantech 1-Room Heat Transfer Kit components:

• Blauberg Exhaust Fan: 150mm diameter mixed-flow in-line fan delivering up to 565 m3/h airflow. Powered by a 50W motor with two selectable speeds for customized performance. Includes a standard 240V AC plug and mounting foot for easy setup.
• Ducting: 152mm (6) inner diameter, 6m length fully extended. 50mm thick polyester acoustic insulation (R1.0 thermal rating) around a flexible duct core. Outer jacket is a flame-retardant, aluminised vapour barrier to contain fibres and prevent tears. Operating temperature range: -100C to +800C.
• Ceiling Grilles: 150mm nominal diameter to fit the duct. Adjustable butterfly valve design to open/close airflow as needed. Material: ABS plastic (UV-stabilised white). Mounting springs/clips are included on each grille for a snug fit in a ceiling cutout.
• Duct Clamps: 150mm (adjustable range) stainless steel, worm-drive type. Provide air-tight clamping for duct-to-fan and duct-to-grille connections.
• Mounting Strap: 25mm width PVC-coated fabric strap, 50m roll. Cut to length as needed to hang the duct and fan. Multiple perforations for easy fastening to joists or beams.

Note: Ensure there is a power source available in the roof space (the fan includes a standard plug). If hard-wiring is required, a licensed electrician should carry out the installation for safety.

Ready for a Cozier Home?

The Blauberg 1-Room Standard Heat Transfer Kit offers a smarter, more energy-efficient way to warm your home. By utilizing the heat youre already generating, this system helps reduce energy bills while making your home more comfortable and evenly heated. Whether youre upgrading an existing system or setting up a new heat transfer solution, this kit is simple to install, packed with durable components, and designed for long-term, low-maintenance operation.

Order today and start enjoying a warmer, more comfortable home while saving on your heating costs! If you have any questions about installation or selecting the right solution for your space, our friendly team is here to assist.

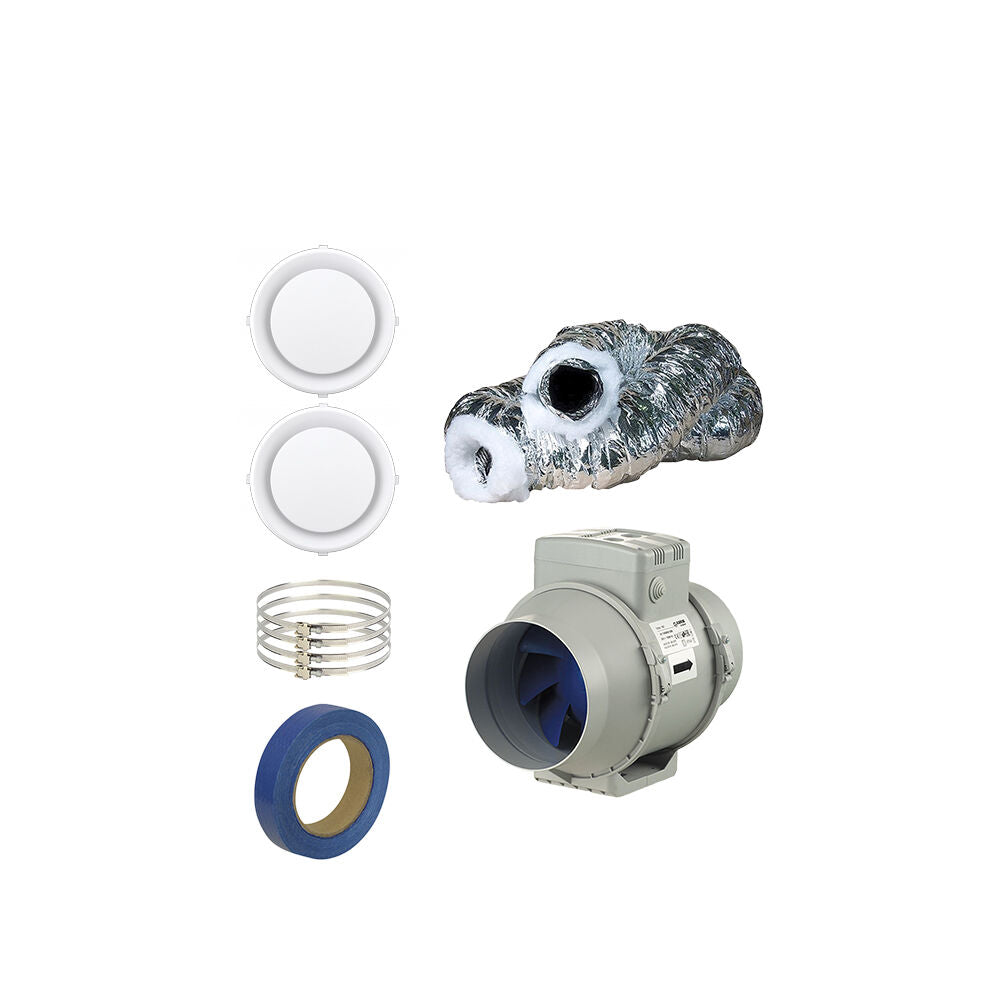

• [1] x Blauberg Turbo Mixed Flow AC Fan - 150MM (6" Inch) | 565 M3/H | 2 Speed | 50W
• [2] x Fantech IALG Ceiling Mounted Inlet Internal Grille - White | Adjustable - [Flange Size: 150MM]
• [1] x Polyester Insulated Flexible Acoustic Duct - 152MM (6" Inch) x 6M | R1.0 | 50MM Insulation
• [1] x Duct Hanging Strap Tape - 25MM x 50M | Blue
• [4] x Quick Fit Stainless Steel Duct Clamp for Rigid & Flexi Ducting - 152MM (6" Inch)

• Specification Sheet - Click Here
