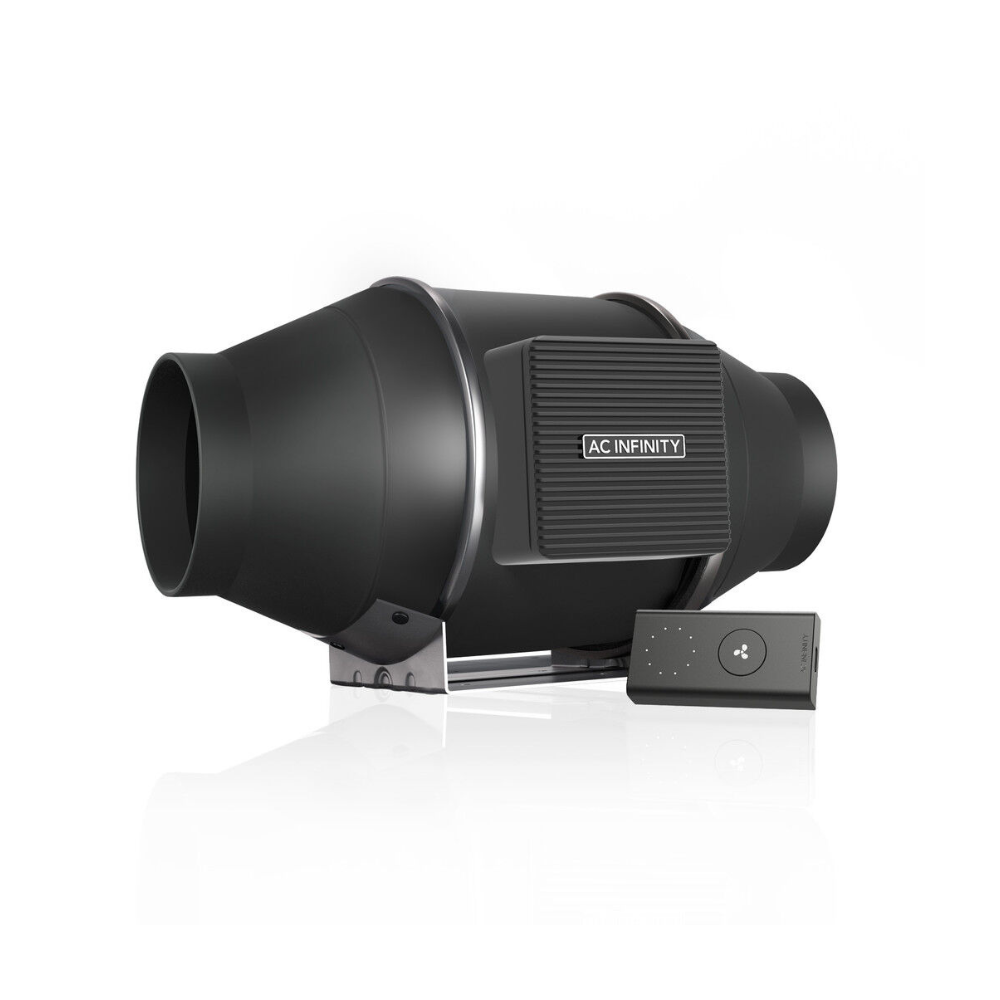

AC Infinity Inline Duct EC Fan Cloudline Pro S4 - 100MM (4" Inch)
Air Flow 348 M³/H | Power Consumption 28W | IP44
Description
Description
The AC Infinity Cloudline Pro S4 is a premium 100mm inline duct EC fan designed for ultra-quiet and energy-efficient air circulation. Engineered with a PWM-controlled EC motor, this fan delivers consistent airflow while reducing heat and noise output, making it ideal for grow tents, hydroponic setups, HVAC systems, AV closets, and other ventilation projects. With a high-performance mixed-flow design featuring stator blades and hydrodynamic wind circles, the Cloudline Pro S4 excels in maintaining airflow under static pressure conditions, ensuring reliable performance in complex ducting applications.
Equipped with a 10-speed wired controller, the unit provides precise control over noise and airflow levels. It is also compatible with UIS smart controllers, enabling advanced programming for temperature, humidity, and scheduling automation. Built with dual ball bearings rated for 67,000 hours of operation, this fan can be mounted in any orientation without affecting performance. The housing is IP44 rated, offering strong protection against dust and moisture, ensuring durability in Australian residential and commercial environments.
Whether youre a DIY grower or a professional installer, the Cloudline Pro S4 delivers industry-leading ventilation performance, whisper-quiet operation, and long-term reliability. It is the ideal choice for anyone seeking efficient, smart-controlled inline ventilation across diverse applications.
Features

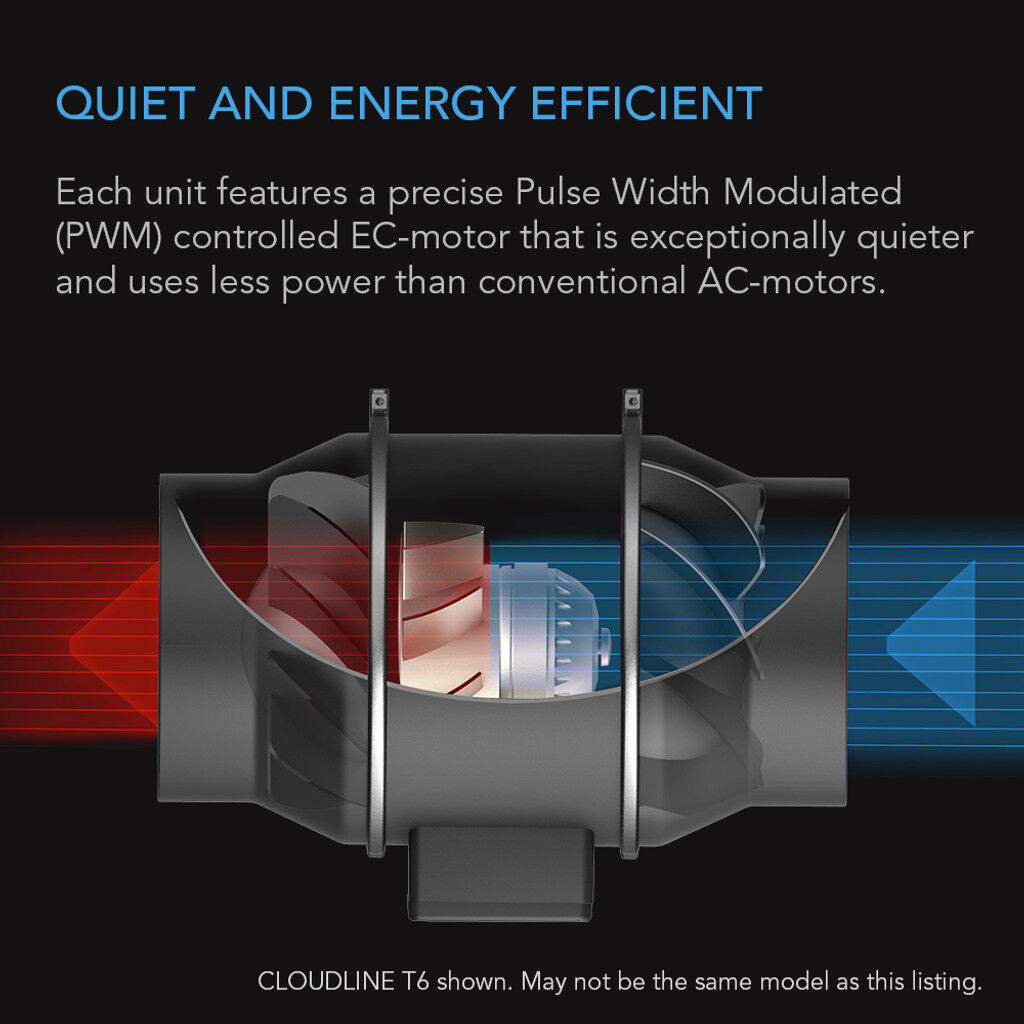

- Quiet EC Motor - PWM-controlled for energy efficiency, reduced noise, and smooth low-RPM operation

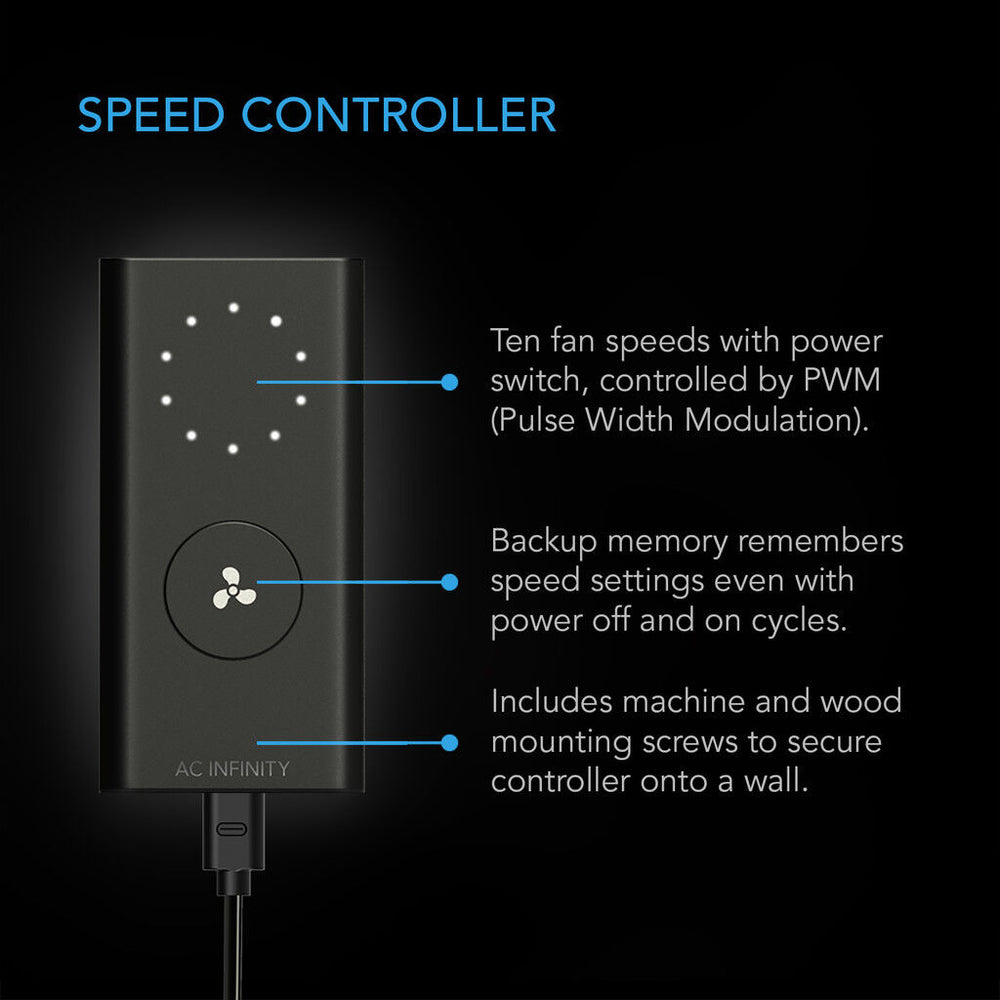

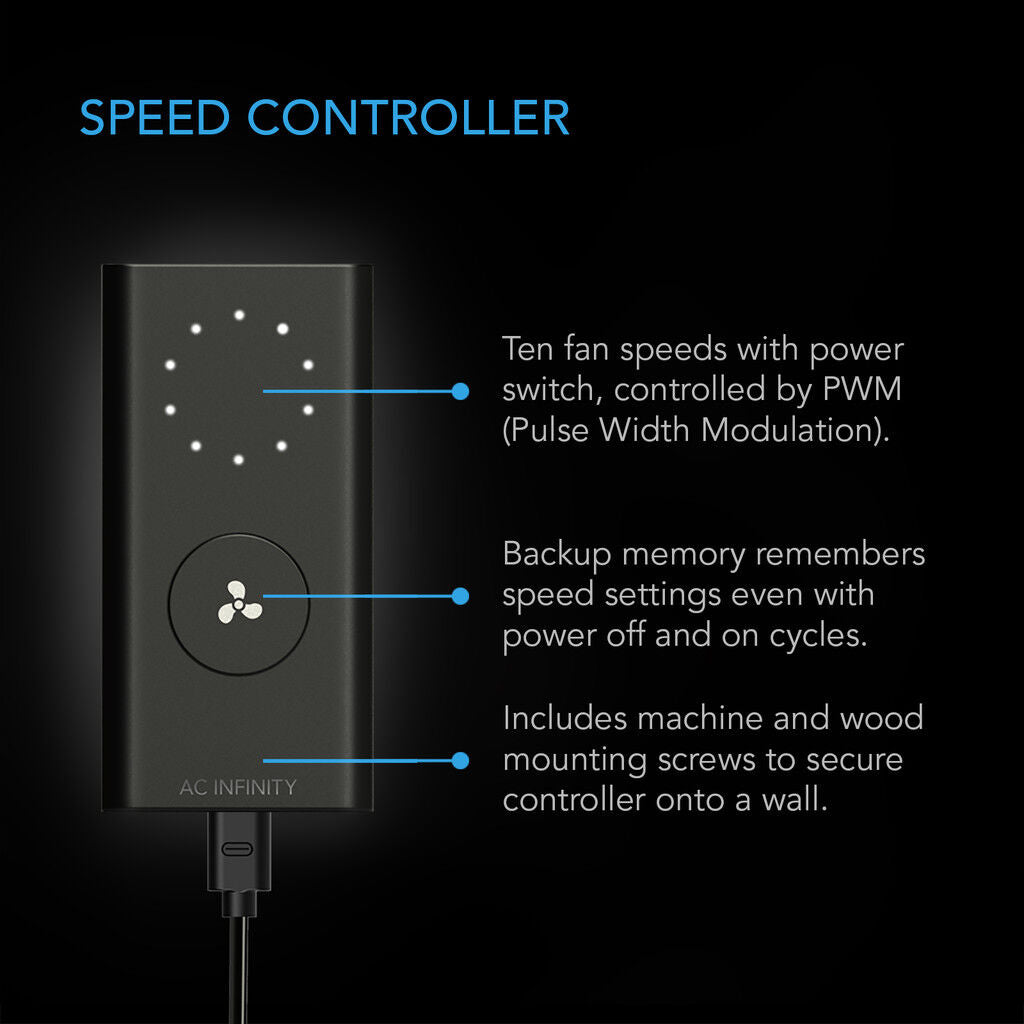

- 10-Speed Wired Controller - Precise airflow control with backup memory for last speed setting.
- Smart Control Compatibility - Connects with UIS ecosystem for automation via temperature, humidity, and scheduling.
- High-Performance Mixed Flow Design - Stator blades and hydrodynamic wind circles maintain airflow in high resistance ducting.
- Dual Ball Bearings - Rated for 67,000 hours; supports horizontal or vertical mounting
- IP44 Protection - Resistant to dust and water ingress for long-lasting reliability.

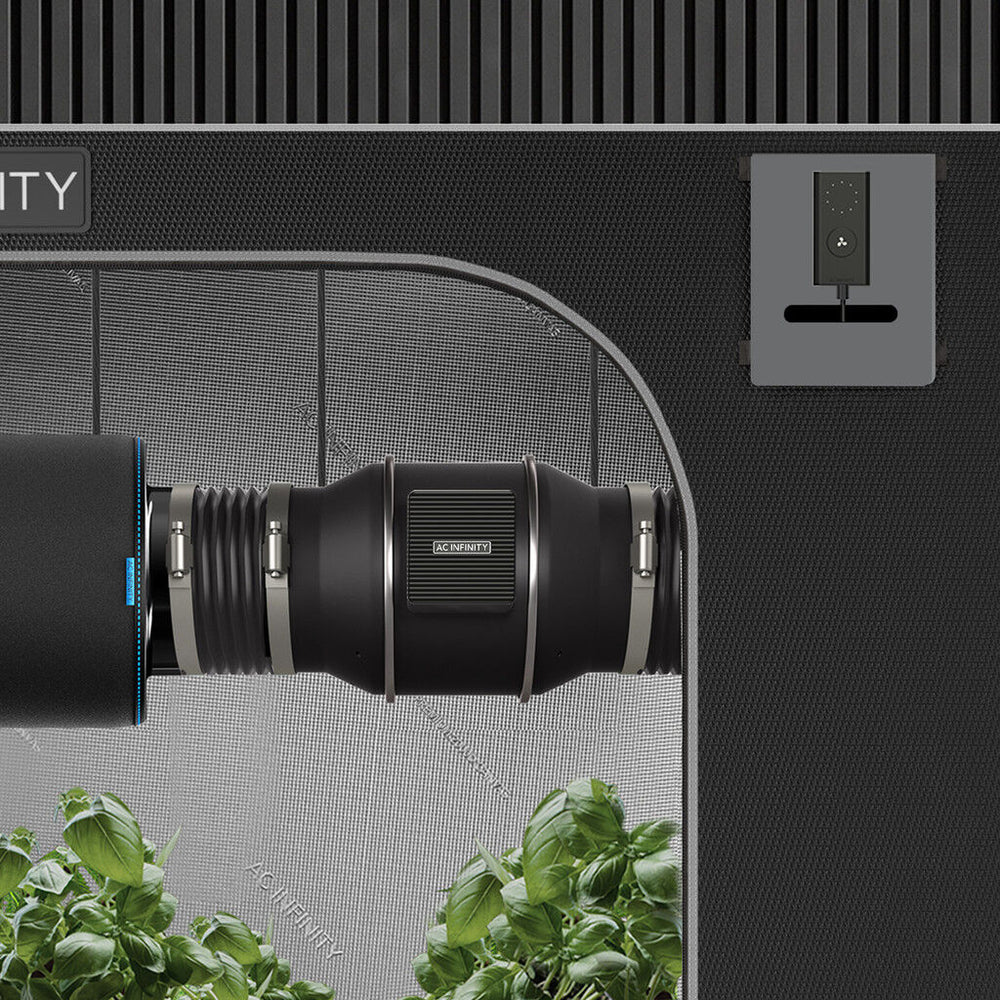

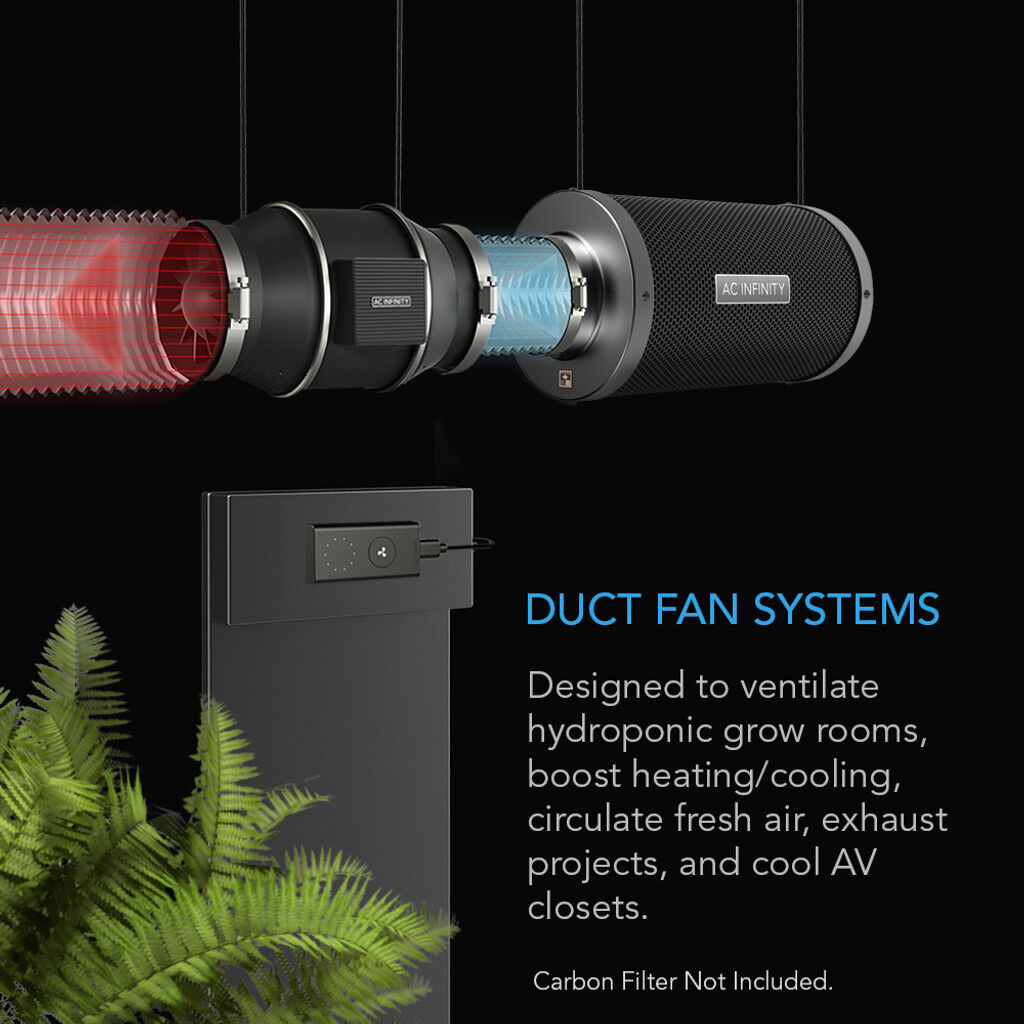

- Versatile Applications - Ideal for grow tents, HVAC, AV closets, bathrooms, attics, and general air circulation projects.

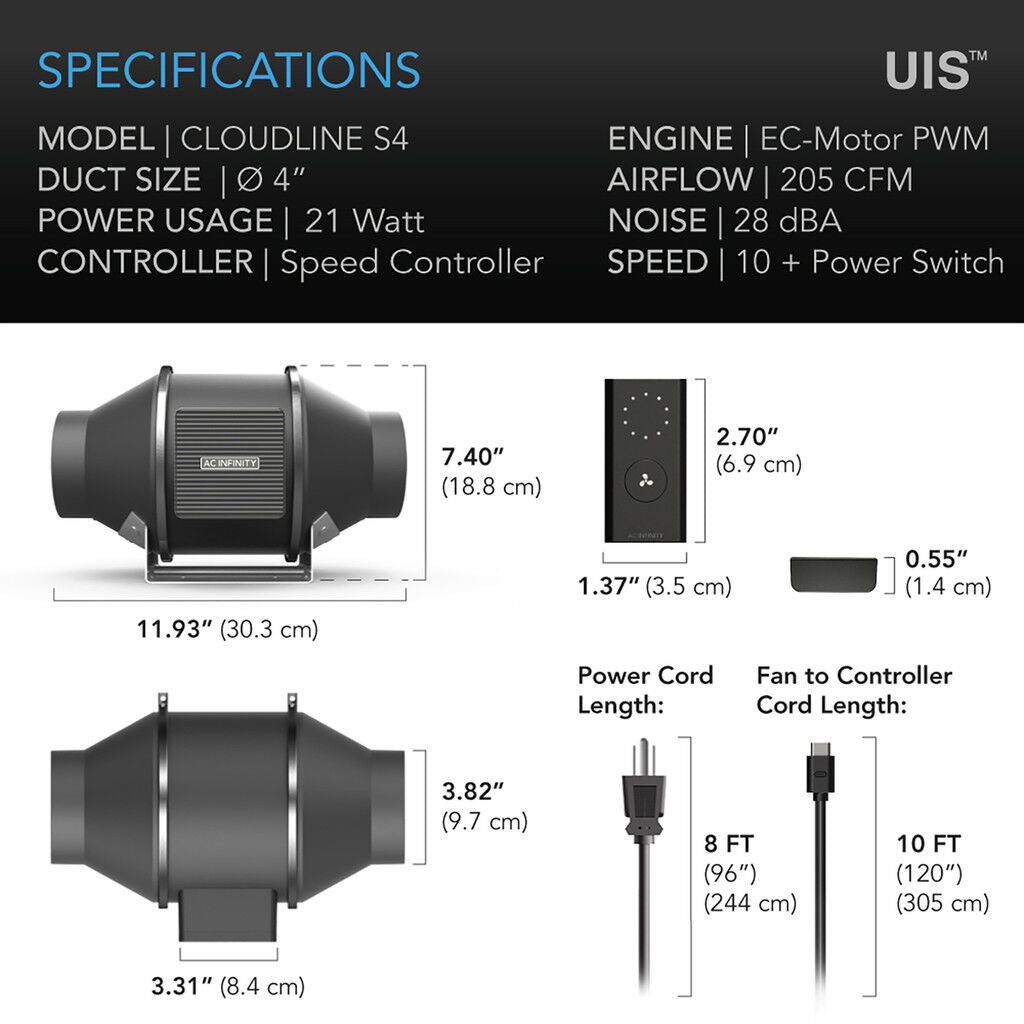

Specifications
Specifications
| Model | Cloudline Pro S4 |
|---|---|
| Duct Size | 100MM (4" Inch) |
| Air Flow | 348 M³/H (205 CFM) |
| Noise Level | 28 dBA |
| Motor Type | PWM-Controlled EC Motor |
| Speed Control | 10-Speed Wired Controller |
| Power Consumption | 28W (Avg. 21W) |
| Static Pressure | 223 Pa |
| Max Speed | 2800 RPM |
| Bearings | Dual Ball Bearings – 67,000 hrs life |
| Ingress Protection | IP44 |
| Voltage | 100–240V AC, 50/60Hz |
| Current | 0.4 A |
| Mounting | Horizontal or Vertical |
| Dimensions | 190 x 303 x 176mm |
| Controller Cord Length | 3.0m |
What's in the box
What's in the box
[1] x AC Infinity Inline Duct EC Fan Cloudline Pro S4 - 100MM (4" Inch) | 205 CFM | 21W | w/ Speed Controller
Downloads
Downloads
- Specification Sheet - Click Here
