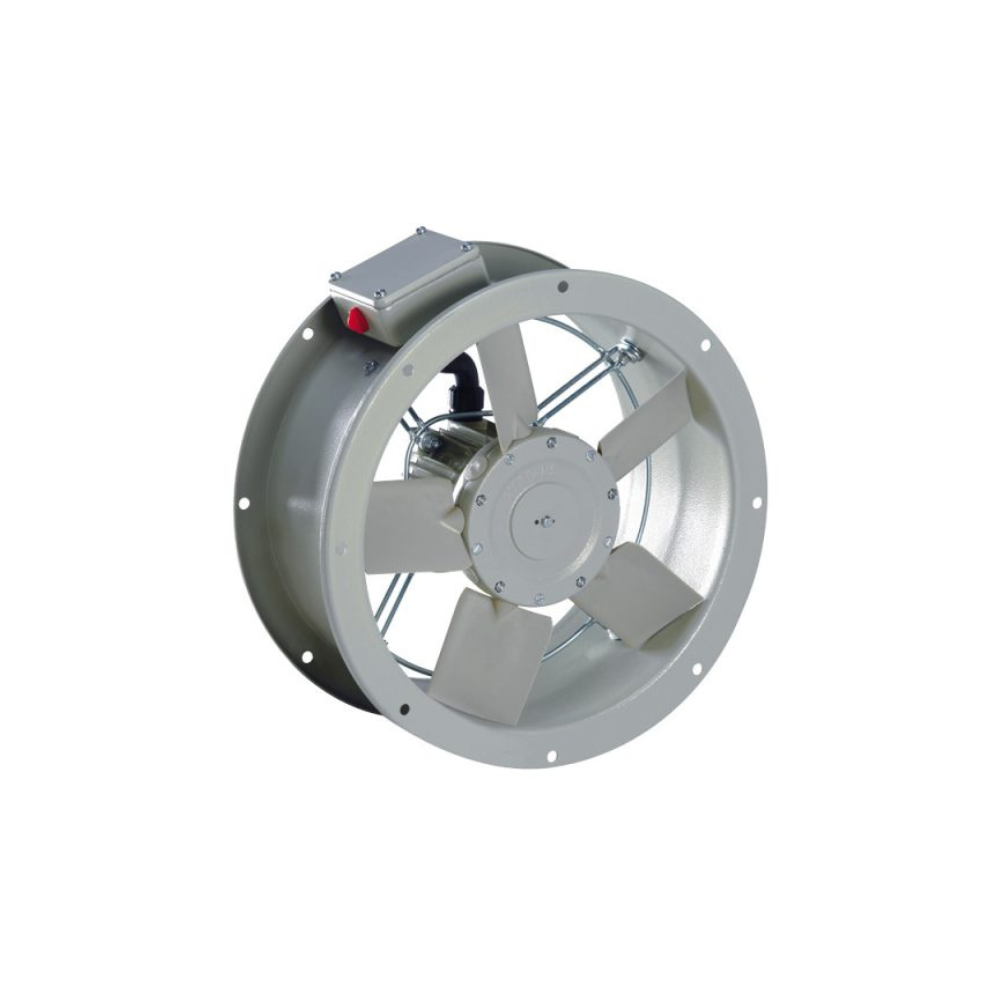

Fantech Short Case In-Line Duct Mounted Axial Fan - SCD404 | 400MM (16" Inch) | 4 Pole | 3 Phase

The Fantech Short Case In-Line Axial Fan SCD404 is a powerful and reliable duct-mounted fan designed for commercial and industrial ventilation systems. Equipped with a 400MM (16" Inch) 4 Pole 3 Phase motor, it delivers an impressive airflow of 4777 M3/H with a low sound level of 47 dB(A) @ 3m.

Constructed with a galvanised steel casing and a polyester epoxy finish, this fan offers long-lasting durability and protection against corrosion. The GRP impeller blades ensure strength and efficiency, while the IP55 enclosure provides excellent protection against dust and water ingress.

The SCD404 features a 2-speed star/delta motor, integral thermal protection, and sealed-for-life ball bearings for dependable, low-maintenance operation. It is suitable for ducted exhaust or supply air systems in applications such as factories, warehouses, workshops, and plant rooms.

Tested to ISO 5801:2004 for airflow and BS848 for noise performance, the Fantech Short Case Axial Fan range provides a compact, energy-efficient, and high-performing ventilation solution.

• Compact short case design - Allows easy installation in ducted systems.
• Robust construction - Galvanised steel casing with a durable epoxy coating.
• Efficient air movement - Delivers 4777 M³/H airflow for strong ventilation performance.
• 2-speed star/delta motor - Ideal for variable air control on 3 phase systems.
• Integral thermal protection - Ensures safe and reliable motor operation.
• Mountable in any position - Offers flexible installation options.
• GRP impeller blades - Lightweight and durable for optimal efficiency.
• IP55-rated enclosure - Dust and water-resistant design for tough environments.
• Compliant with ISO and BS standards - Fully tested for airflow and noise levels.

• Model: SCD404
• Air Flow: 4777 M³/H
• Power Consumption: 370W
• Motor Type: 3 Phase, 4 Pole
• Sound Level: 47 dB(A) @ 3m
• Operating Temperature: -20°C to +70°C

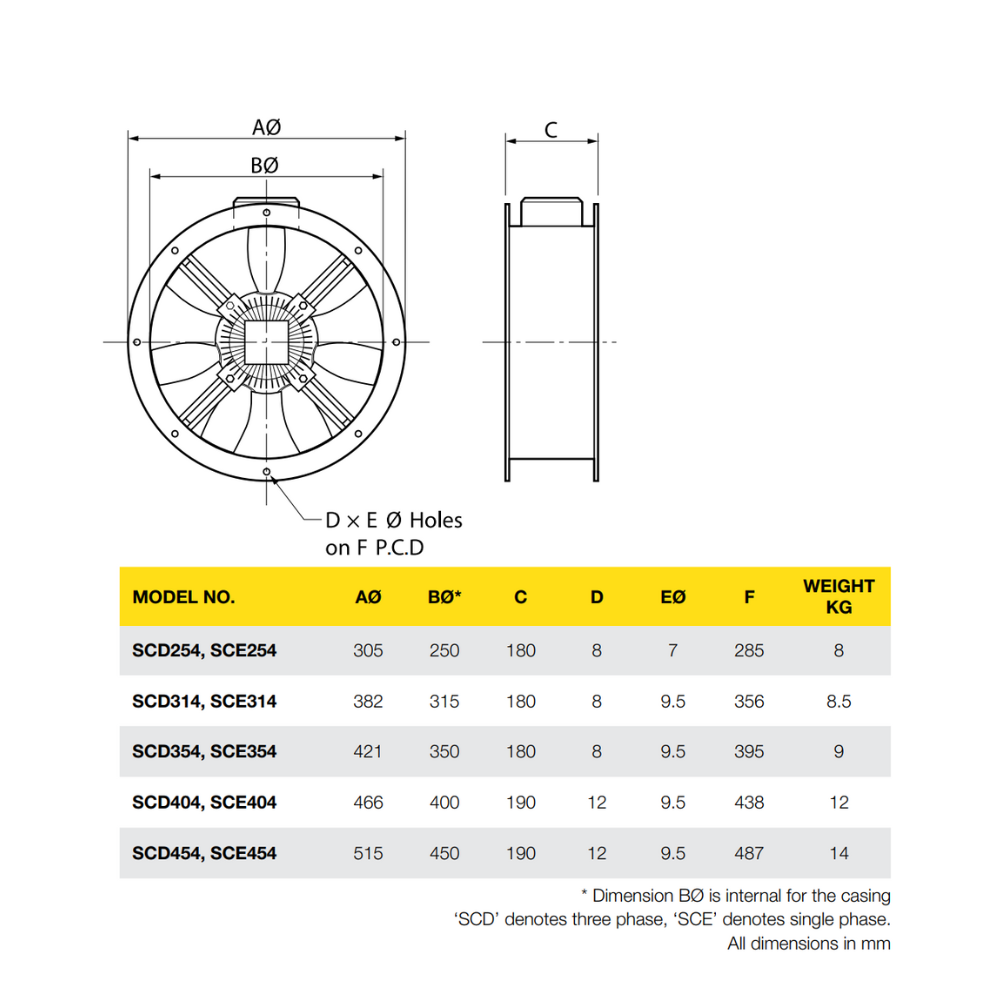

• Flange Size: 400MM (16" Inch)
• Casing Material: Galvanised Steel with Polyester Epoxy Finish
• Impeller: GRP (Glass Reinforced Plastic)
• Weight: 12.0 kg
• IP Rating: IP55
• Thermal Protection: Integral
• Bearings: Sealed-for-life ball bearings
• Mounting: Suitable for any position
• Standards: ISO 5801:2004, BS848: Part 2, 1985

• [1] x Fantech Short Case In-Line Duct Mounted Axial Fan - SCD404 | 400MM (16" Inch) | 4 Pole | 3 Phase

• Specification Sheet - Click Here
