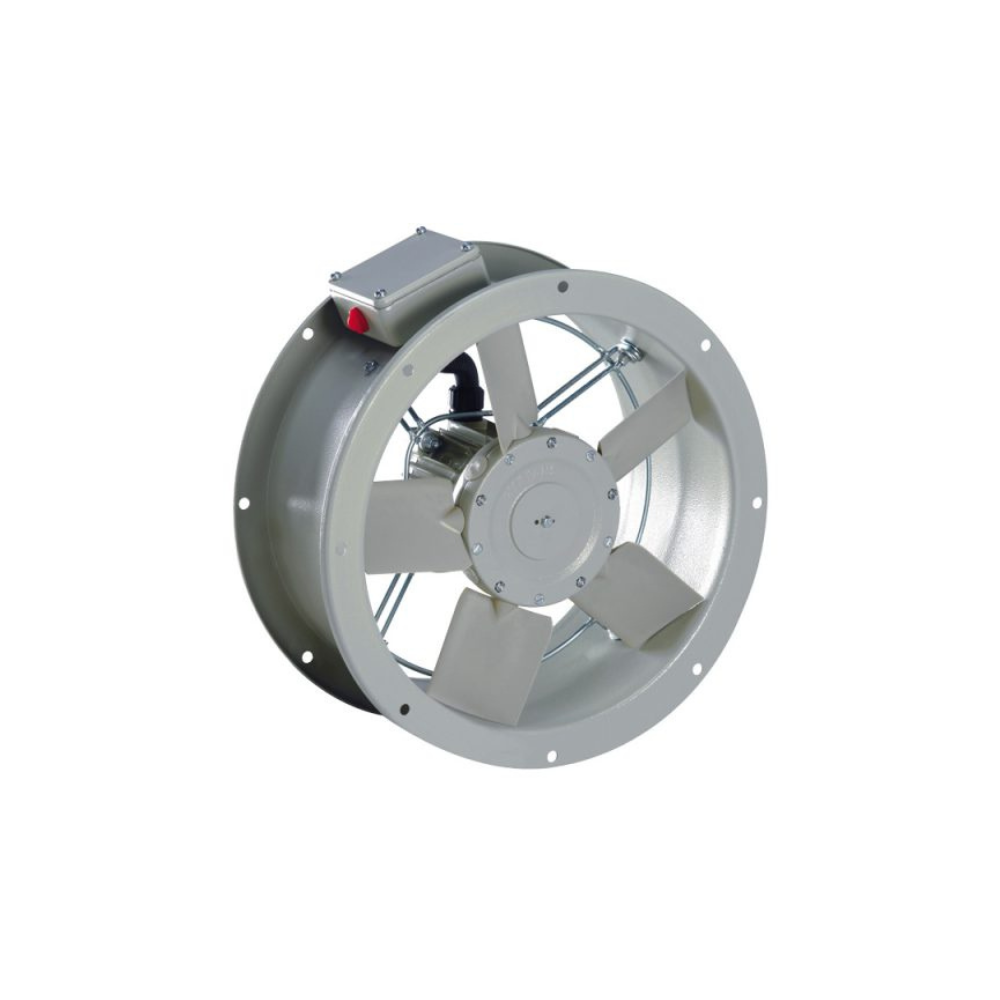

Fantech Short Case In-Line Duct Mounted Axial Fan - SCD404 | 400MM (16" Inch) | 4 Pole | 1 Phase

The Fantech Short Case In-Line Duct Mounted Axial Fan SCE404 delivers exceptional air movement performance for commercial and industrial ventilation systems. Featuring a compact short-case body with robust galvanised steel construction, this fan is engineered to provide efficient exhaust and supply air ventilation in demanding environments.

With a powerful airflow capacity of 4777 M3/H and a durable IP55-rated motor, the SCE404 axial fan is built to withstand harsh operating conditions from -200C to +700C. Despite its strong performance, it operates quietly at 47 dB(A) and consumes only 250W of power. Ideal for warehouses, workshops, commercial kitchens, factories and other ventilation applications across Australia, the SCE404 offers reliability, flexibility, and easy installation in any mounting position.

• Compact short case design - Allows easy installation in ducted systems.
• Robust construction - Galvanised steel casing with a durable epoxy coating.
• Efficient air movement - Delivers 4777 M³/H airflow for strong ventilation performance.
• 2-speed star/delta motor - Ideal for variable air control on 3 phase systems.
• Integral thermal protection - Ensures safe and reliable motor operation.
• Mountable in any position - Offers flexible installation options.
• GRP impeller blades - Lightweight and durable for optimal efficiency.
• IP55-rated enclosure - Dust and water-resistant design for tough environments.
• Compliant with ISO and BS standards - Fully tested for airflow and noise levels.

• Model: SCD404
• Air Flow: 4777 M³/H
• Power Consumption: 370W
• Motor Type: 3 Phase, 4 Pole
• Sound Level: 47 dB(A) @ 3m
• Operating Temperature: -20°C to +70°C

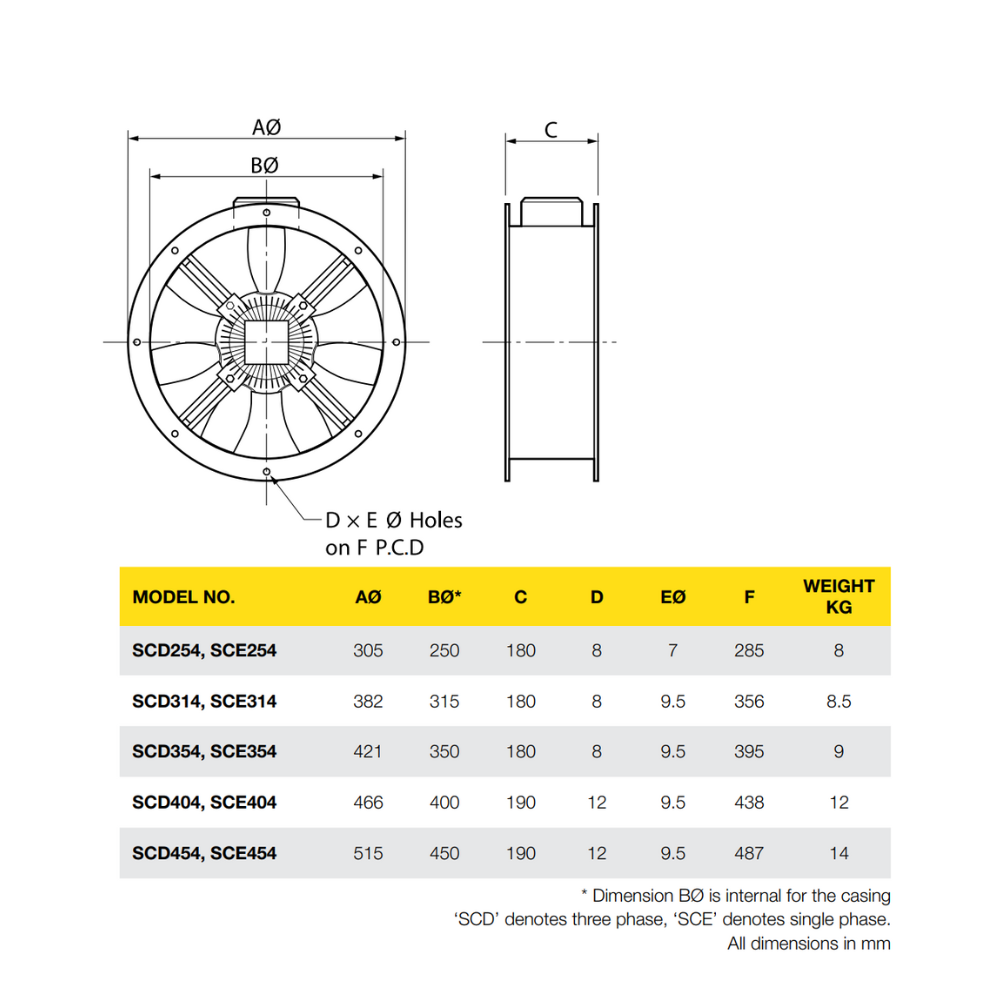

• Flange Size: 400MM (16" Inch)
• Casing Material: Galvanised Steel with Polyester Epoxy Finish
• Impeller: GRP (Glass Reinforced Plastic)
• Weight: 12.0 kg
• IP Rating: IP55
• Thermal Protection: Integral
• Bearings: Sealed-for-life ball bearings
• Mounting: Suitable for any position
• Standards: ISO 5801:2004, BS848: Part 2, 1985

• [1] x Fantech Short Case In-Line Duct Mounted Axial Fan - SCD404 | 400MM (16" Inch) | 4 Pole | 3 Phase
