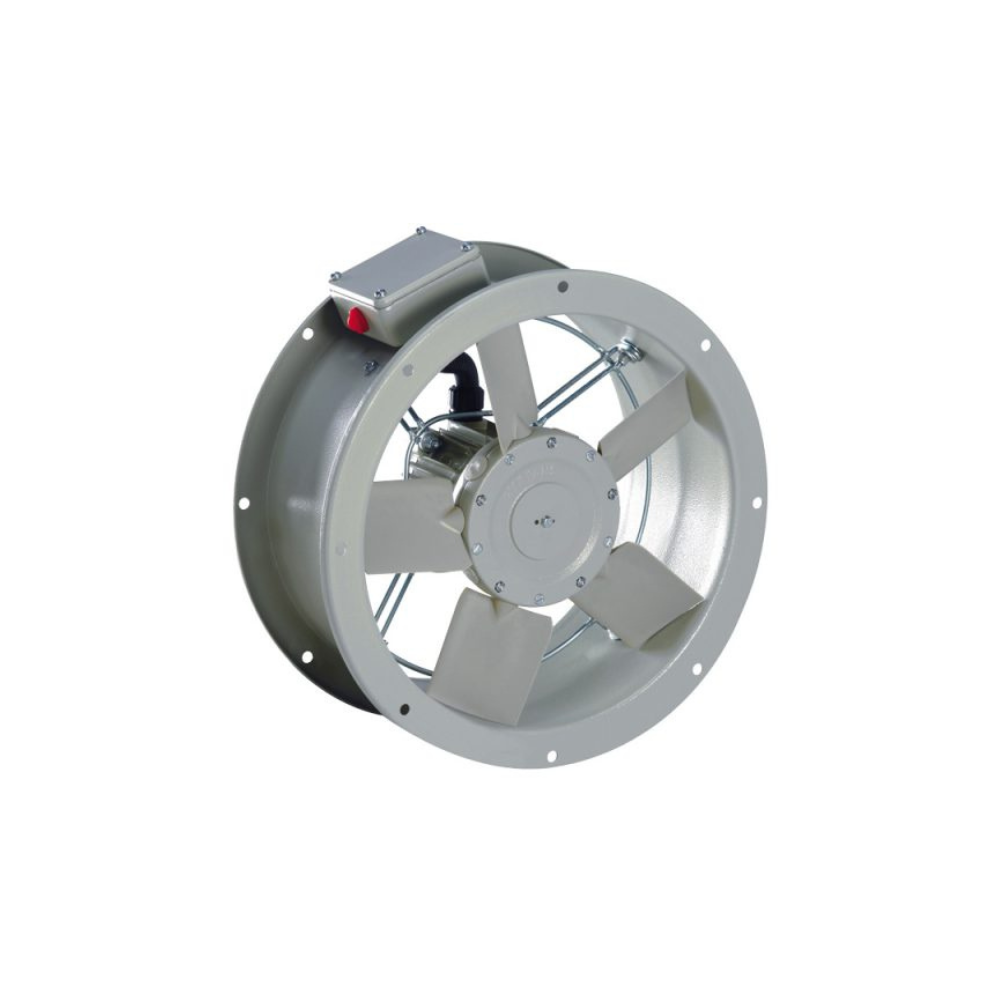

Fantech Short Case In-Line Duct Mounted Axial Fan - SCD454 | 450MM (18" Inch) | 4 Pole | 3 Phase

The Fantech Short Case In-Line Duct Mounted Axial Fan SCD454 is engineered for high-performance air movement in demanding commercial and industrial environments. This 450MM (18" Inch) 4-pole 3-phase axial fan delivers a powerful airflow of 5789 M3/H, ensuring reliable ventilation through ducted systems. Its galvanised steel casing with a durable polyester epoxy finish provides long-lasting corrosion resistance, while the light-weight but robust design makes it ideal for compact installations. Capable of operating in ambient temperatures from -200C to +700C, the SCD454 is a dependable solution for exhausting or supplying air across factories, warehouses, workshops, and other large spaces. IP55-rated motor protection ensures durability and performance even in harsh conditions.

• Compact short case design - Ideal for space-constrained ducted systems.
• Light-weight but robust construction - Ensures easy installation and long-term reliability.
• 2-speed star/delta 415V 3-phase motor - High efficiency and flexible operation.
• Galvanised steel casing with polyester epoxy finish for corrosion protection.
• GRP impeller blades - High strength with optional aluminium blades available.
• Speed controllable via variable speed drive or transformer control.
• IP55 motor enclosure - Suitable for demanding industrial environments.
• Operates in ambient temperatures from -20°C to +70°C.
• Mountable in any position with multiple compatible ancillary accessories.
• Integral thermal protection and tested to ISO 5801:2004 and BS848:1985 standards.

• Model: SCD454
• Fan Diameter: 450MM (18" Inch)
• Air Flow: 5789 M³/H
• Motor Type: 3 Phase, 4 Pole
• Speed: 23 rev/sec
• Power Consumption: 0.37 kW (370 W)
• Current: 1.40 A
• Average Sound Level: 50 dB(A) @ 3m
• Weight: 14 kg
• Operating Temperature: -20°C to +70°C
• Construction: Galvanised steel with polyester epoxy finish
• Impeller Blades: GRP (optional aluminium)
• Enclosure Rating: IP55
• Mounting: Any position
• Thermal Protection: Integral
• Standards: ISO 5801: 2004 / BS848 Part 2

• [1] x Fantech Short Case In-Line Duct Mounted Axial Fan - SCD454 | 450MM (18" Inch) | 4 Pole | 3 Phase

• Specification Sheet - Click Here
