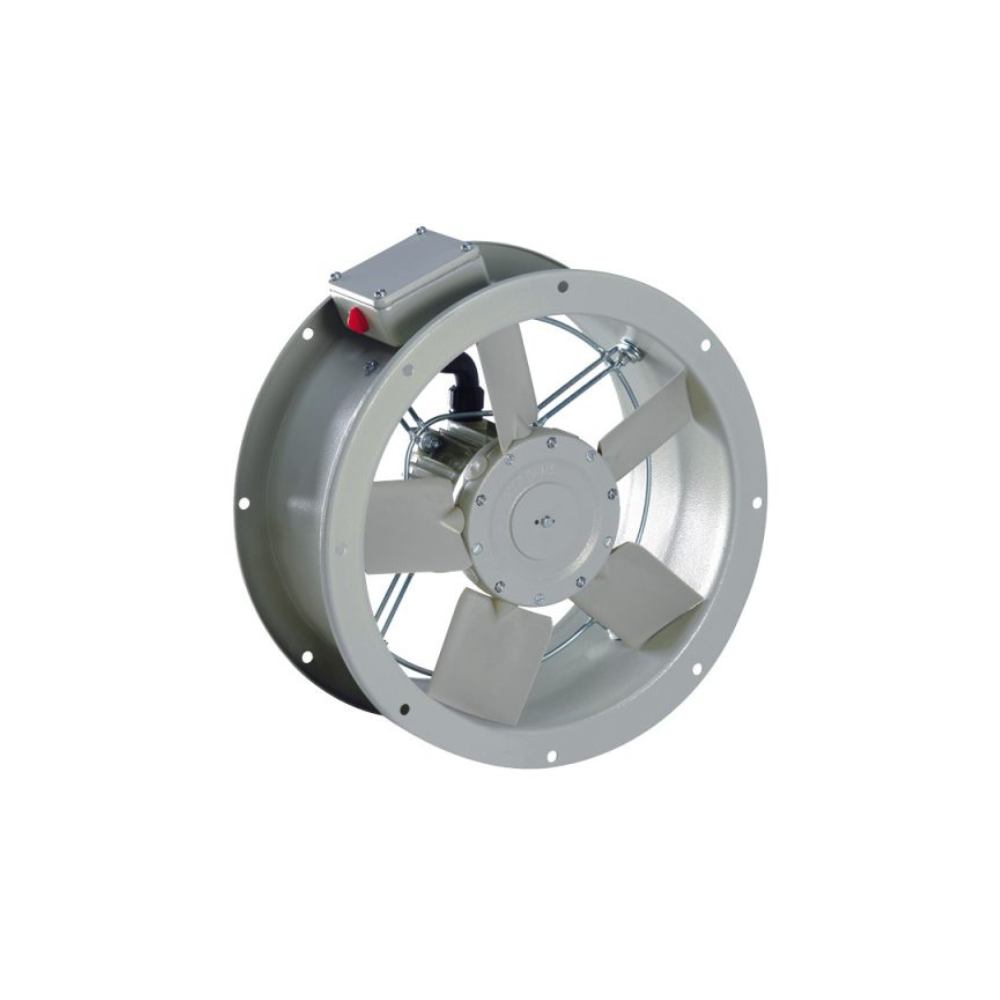

Fantech Short Case In-Line Duct Mounted Axial Fan - SCE354 | 350MM (14" Inch) | 4 Pole | 1 Phase

The Fantech Short Case In-Line Duct Mounted Axial Fan SCE354 offers powerful and reliable ventilation performance for commercial and industrial ducted systems. Its compact, short-case design and robust galvanised steel construction make it ideal for demanding air movement applications where space and performance are both critical.

Delivering a strong airflow of 2686 M3/H with a quiet noise level of 45 dB(A) and low power consumption of 90W, the SCE354 axial fan is built to last. It can operate in environments ranging from -200C to +700C and can be mounted in any position. This fans IP55 rating ensures protection against dust and water ingress, making it perfect for use in warehouses, factories, commercial kitchens and other ventilation systems across Australia.

• Compact Short Case Design - Ideal for installations where space is limited.
• Durable Galvanised Steel Construction - Finished with a polyester epoxy coating for long-term protection.
• Mountable in Any Position - Flexible installation options for all duct configurations.
• Wide Temperature Range - Operates efficiently between -20°C and +70°C.
• Pre-fitted Electrical Junction Box - Simplifies installation and maintenance.
• Speed-Controllable - Compatible with VA2.8 electronic speed controller (single phase).
• Accessory Options - Mounting feet, inlet cones, matching flanges and safety guards available.

• Model: SCE354
• Air Flow: 2686 M³/H
• Fan Speed: 23 Rev/Sec
• Noise Level: 45 dB(A) @ 3M
• Power: 90W
• Voltage: 230V
• Phase: 1 Phase
• Frequency: 50Hz

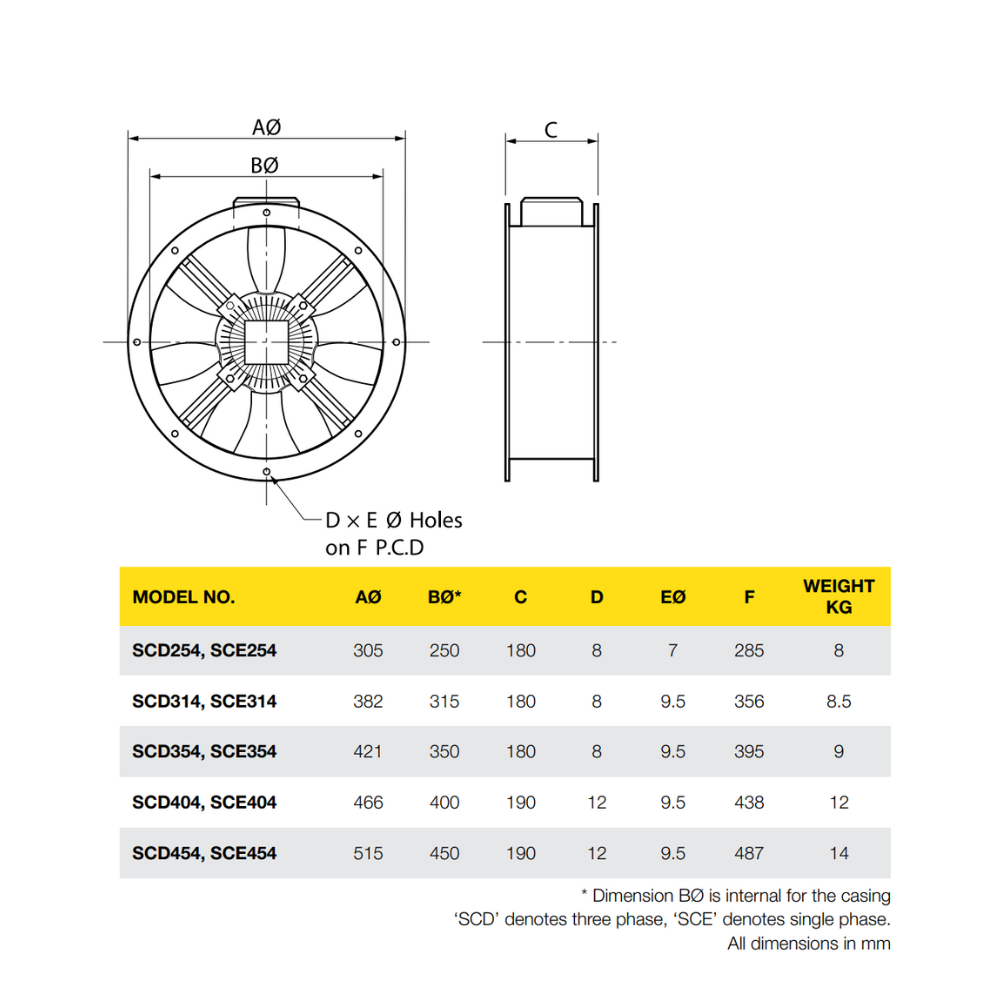

• Flange / Duct Size: 350MM (14" Inch)
• IP Rating: IP55
• Operating Temperature: -20°C to +70°C
• Weight: 9 KG

• [1] x Fantech Short Case In-Line Duct Mounted Axial Fan - SCE354 | 350MM (14" Inch) | 4 Pole | 1 Phase

• Specification Sheet - Click Here
