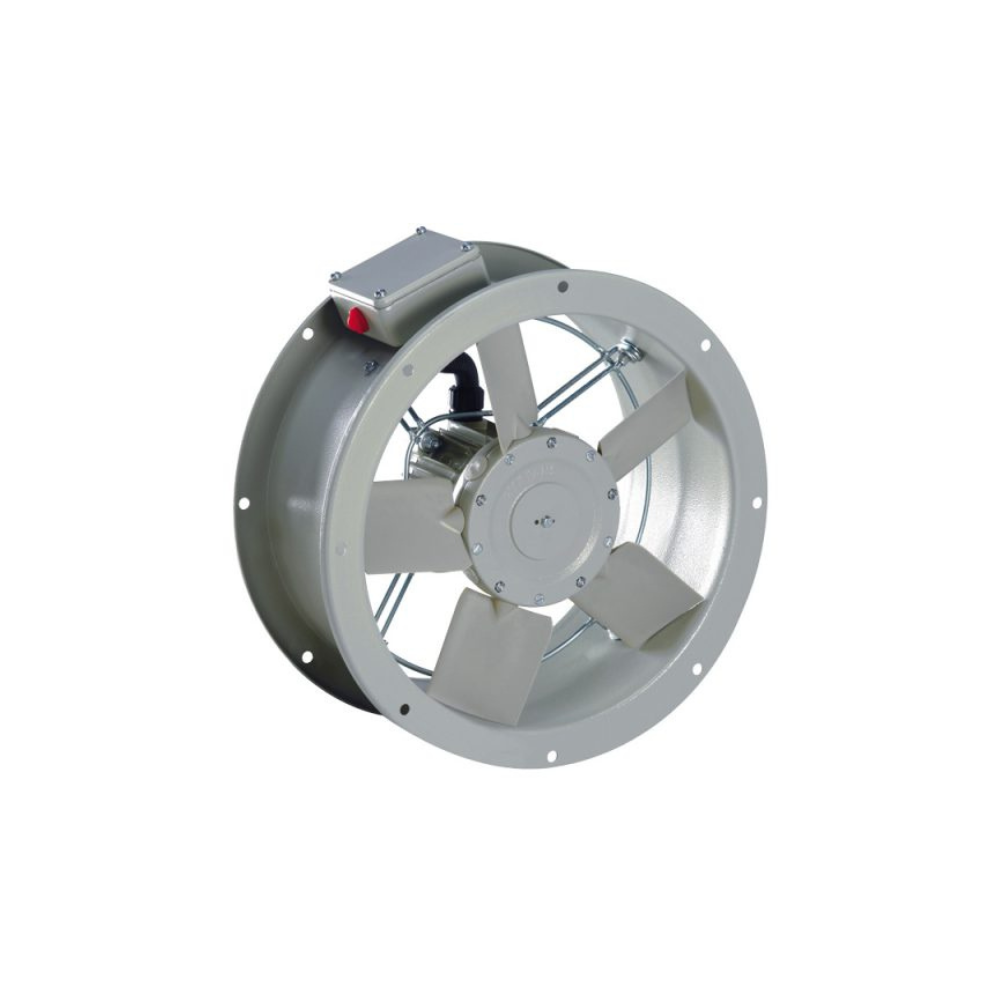

Fantech Short Case In-Line Duct Mounted Axial Fan - SCE454 | 450MM (18" Inch) | 4 Pole | 1 Phase

The Fantech Short Case In-Line Duct Mounted Axial Fan SCE454 is a high-performance ventilation unit designed for industrial and commercial air movement applications. With a robust galvanised steel housing and a compact short-case design, its ideal for ducted exhaust and supply air systems where space and durability are critical.

Delivering an impressive airflow of 5789 M3/H while consuming only 250W of power, the SCE454 axial fan combines efficiency, low noise operation (50 dB(A)), and longevity. This model operates across a wide ambient range from -200C to +700C and features an IP55-rated motor for protection against dust and moisture. It can be mounted in any position and is compatible with speed controllers for flexible airflow management. Perfect for factories, warehouses, commercial kitchens, and workshops across Australia, this fan ensures reliable airflow and performance in demanding environments.

• Compact short case design – Ideal for space-constrained ducted systems.
• Light-weight but robust construction – Ensures easy installation and long-term reliability.
• 2-speed star/delta 415V 3-phase motor – High efficiency and flexible operation.
• Galvanised steel casing with polyester epoxy finish for corrosion protection.
• GRP impeller blades – High strength with optional aluminium blades available.
• Speed controllable via variable speed drive or transformer control.
• IP55 motor enclosure – Suitable for demanding industrial environments.
• Operates in ambient temperatures from -20°C to +70°C.
• Mountable in any position with multiple compatible ancillary accessories.
• Integral thermal protection and tested to ISO 5801:2004 and BS848:1985 standards.

• Model: SCD454
• Fan Diameter: 450MM (18" Inch)
• Air Flow: 5789 M³/H
• Motor Type: 3 Phase, 4 Pole
• Speed: 23 rev/sec
• Power Consumption: 0.37 kW (370 W)
• Current: 1.40 A
• Average Sound Level: 50 dB(A) @ 3m
• Weight: 14 kg
• Operating Temperature: -20°C to +70°C
• Construction: Galvanised steel with polyester epoxy finish
• Impeller Blades: GRP (optional aluminium)
• Enclosure Rating: IP55
• Mounting: Any position
• Thermal Protection: Integral
• Standards: ISO 5801: 2004 / BS848 Part 2

• [1] x Fantech Short Case In-Line Duct Mounted Axial Fan - SCD454 | 450MM (18" Inch) | 4 Pole | 3 Phase

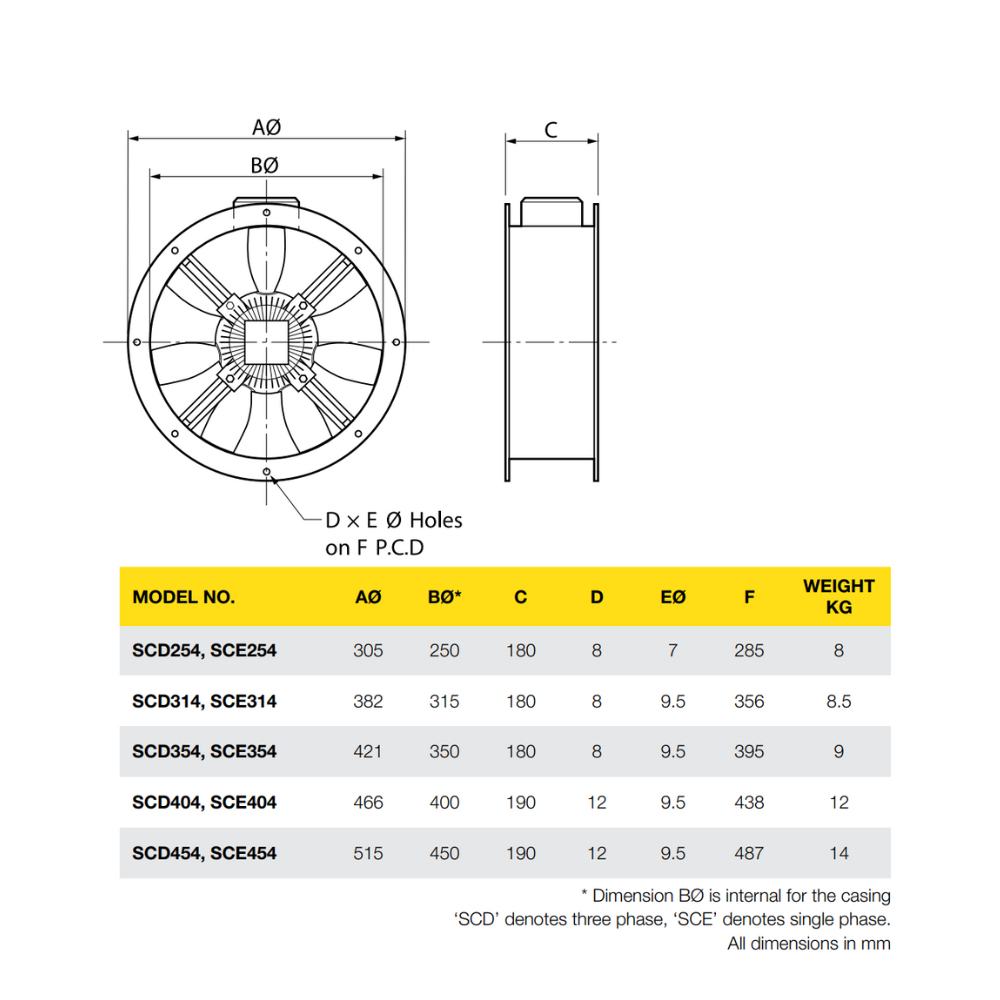

• Specification Sheet - Click Here
