Dantherm MVHR - HCH 8 | Residential Ventilation Unit
Horizontal heat recovery unit for homes up to 475m²
Dantherm MVHR - HCH 8 | Residential Ventilation Unit
Product Overview
Description
Description
The Dantherm HCH 8 is a premium, energy-efficient residential ventilation system designed to meet the demands of larger homes and passive-standard buildings across Australia. With an airflow capacity of up to 500 m3/h, this horizontal ventilation unit offers exceptional indoor climate control with high-efficiency heat recovery and integrated humidity sensor for demand-controlled performance.

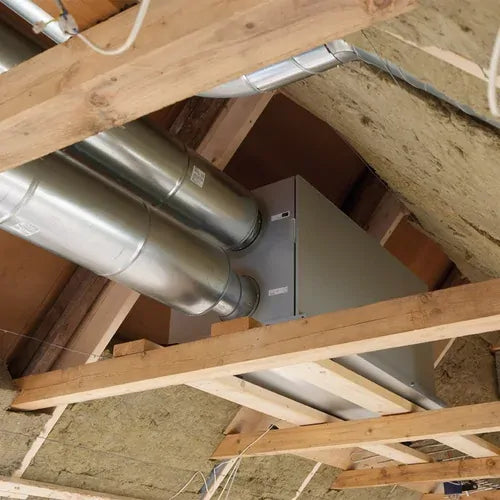

Purpose-built for attic or plant room installations, the HCH 8 is optimised for Australian conditions with an operating range of -200C to +500C and extremely low SPI values thanks to advanced EC motor technology. The system comes fully packaged with a built-in control panel and service-friendly layout, including end-mounted duct connections and front-facing access for easy maintenance.
Whether you're upgrading a ventilation system for a high-end residence or aiming for a more energy-conscious solution, the Dantherm HCH 8 delivers superior performance, reduced running costs, and peace of mind with reliable, quiet operation.
Features
- High-Efficiency Heat Recovery: Up to 92% efficiency with counter-flow heat exchangers.
- Demand-Controlled Ventilation: Integrated humidity sensor adjusts airflow automatically based on indoor conditions.
- Low Energy Consumption: EC fan motors provide powerful performance with extremely low SPI values.
- Optimised for Attics: Horizontal design with duct connections at both ends for easy loft or plant room installation.
- Weather Resilient: Operating temperatures range from -200C to +500C with preheating capabilities.

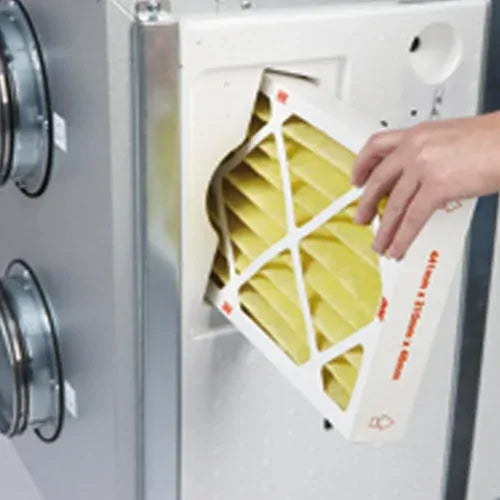

- Filter Flexibility: Comes standard with G4 filters and optional F7 (ePM1 > 50%) for enhanced air purification.
- Robust and Fire-Safe Cabinet: 40mm polystyrene-insulated galvanized metal housing with certified fire ratings.
Features
Features
Specifications
Specifications
| Specification | HCH 8 |
|---|---|
| Maximum Air Flow | 500 m³/h |
| Rated Flow @ 100 Pa | 500 m³/h |
| Recommended Operating Range | 80 - 500 m³/h |
| Thermal Efficiency | Up to 92% |
| Bypass Function | Yes |
| Filters | G4 (Optional: F7 / ePM1 > 50%) |
| Temperature Range (with preheater) | -20°C to +50°C |
| External/Internal Leakage (EN 13141-7) | <2% (Class A1) |
| Unit Dimensions (W x H x D) | 1180 x 600 x 780 mm |
| Duct Connection Size | 250 mm |
| Weight (Unit / With Packaging) | 70 kg / 84 kg |
| Cabinet Insulation | 40 mm Polystyrene |
| Insulation Rating | 0.78 W/m²·K |
| Fire Classification | DIN 4102 B1 / EN 13501 E |
| Power Supply | 1 x 230V / 50 Hz |
| Max Power Consumption | 246 W |
| Protection Class | IP20 |
What's in the box
What's in the box
[1] x Dantherm MVHR - HCH 8 | Residential Ventilation Unit
