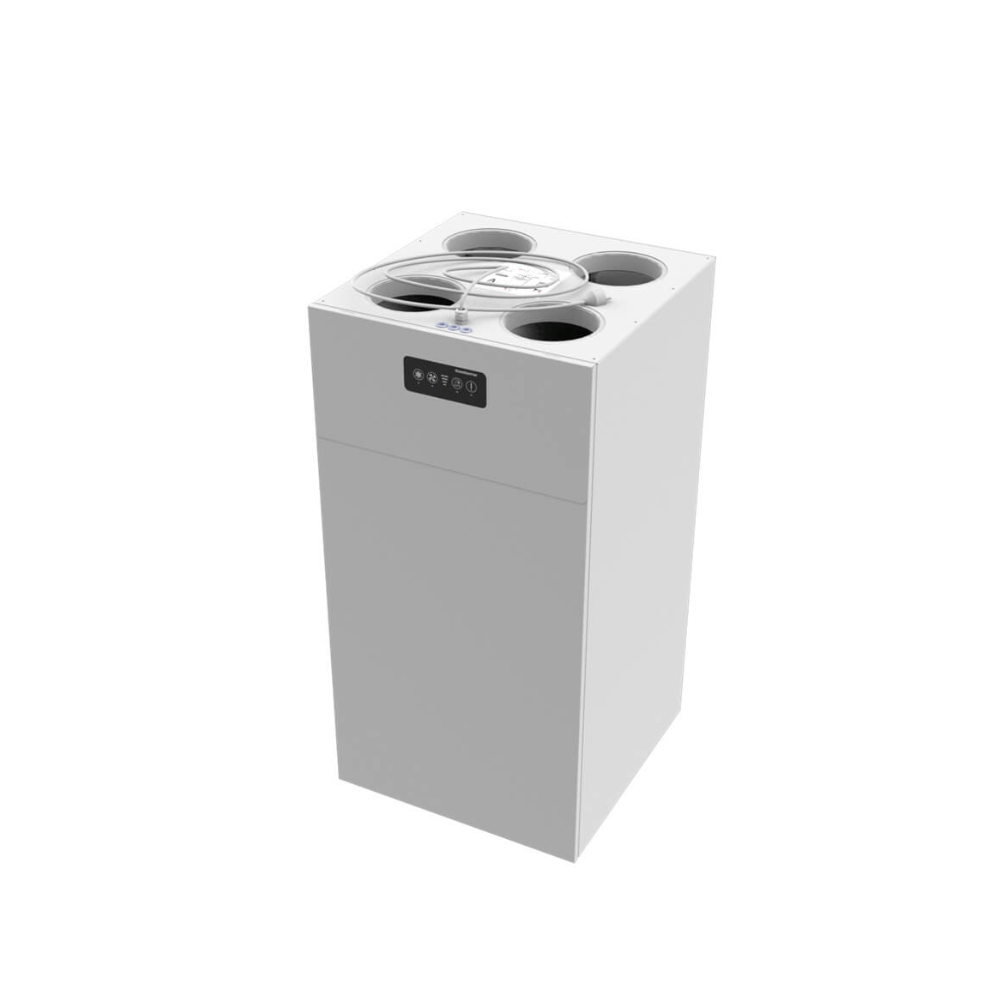

Dantherm MVHR - HCV 400 P1 | Residential Ventilation Unit

The Dantherm HCV 400 P1 is a high-performance residential heat recovery ventilation unit designed to deliver fresh, filtered air while recovering up to 92% of the heat from outgoing air. Designed to fit seamlessly into modern Australian homes, villas, and apartments, it fits perfectly in a 60 x 60 cm cupboard and includes all necessary parts for wall mounting.

This intelligent HRV system features demand-controlled ventilation with a built-in humidity sensor that automatically adjusts fan speeds based on real-time indoor moisture levels, helping reduce energy consumption. The summer mode allows for passive cooling through open windows, while the fireplace mode creates a temporary overpressure to support chimney function.

Equipped with highly efficient EC fans and a robust filtration system, the HCV 400 P1 ensures superior indoor air quality. With BMS Modbus connectivity, easy commissioning, and multiple ducting configurations, this unit is ideal for both new builds and retrofits.

Features

• High Thermal Efficiency: Achieves up to 92% heat recovery according to EN13141-7 standards.
• Demand-Controlled Ventilation: Integrated humidity sensor adapts airflow to reduce energy use during low-demand periods.
• Summer Mode: Automatically pauses supply fan to allow natural passive cooling through windows.
• Fireplace Mode: Creates a short-term positive pressure indoors to support chimney draft.
• Energy-Efficient EC Fans: Low specific power input (0.23 SFP) for quiet, low-cost operation.
• Flexible Installation: Ducts can be mounted at the top or bottom; fits standard 600 x 600mm cupboards.
• Built-in Modbus RTU: Supports integration into smart home and BMS systems via RS485.

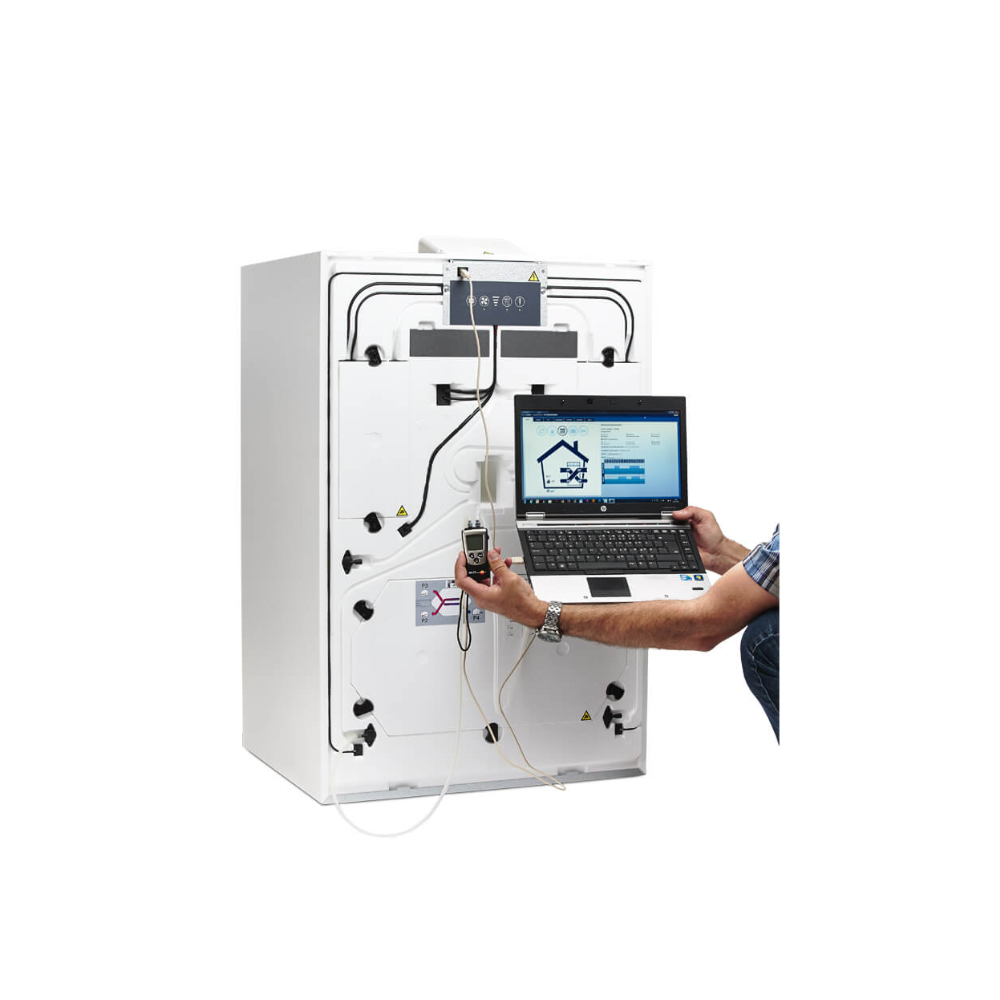

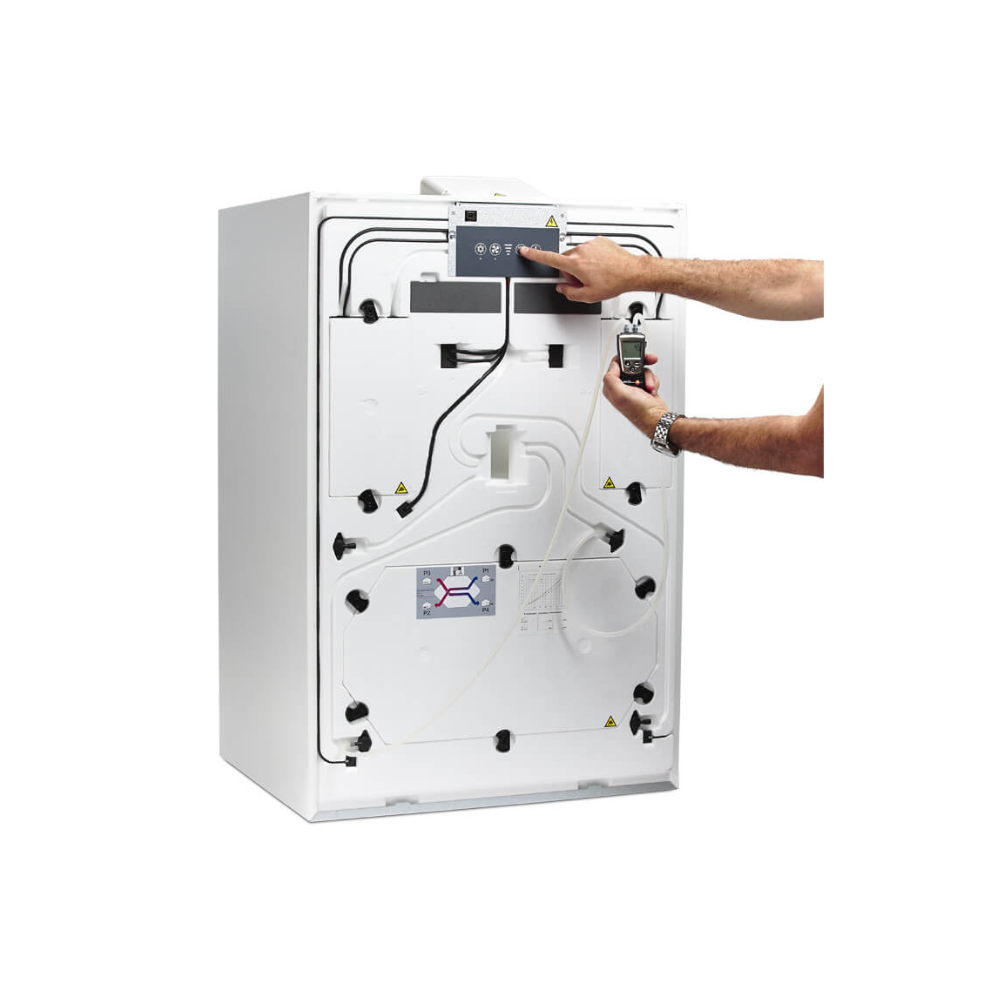

• Smart Commissioning: Built-in pressure spigots make airflow calibration fast and accurate.

[1] x Dantherm MVHR - HCV 400 P1 | Residential Ventilation Unit

Product Manual - Click Here
