Description
Description
The Dantherm HCV 460 P2 MVHR Residential Ventilation Unit is engineered for high-efficiency, demand-controlled ventilation in Australian homes. This compact yet powerful unit delivers a maximum airflow of 460 m3/h at 100 Pa, all while maintaining outstanding thermal efficiency up to 86%, in accordance with EN13141-7 standards.
With an integrated humidity sensor, the HCV 460 P2 actively adjusts ventilation levels based on indoor air moisture, reducing power consumption during low-demand periods. Built with EC fan motors and a plastic counterflow heat exchanger, this model ensures low Specific Power Input (SPI) and minimal operating noise.
The HCV 460 P2 supports intelligent modes such as summer cooling, fireplace boost, and automatic bypass, making it a smart, adaptable solution for year-round comfort. Despite its performance, its designed to occupy only the space of a 60 x 60 cm cupboard, ideal for homes with limited utility room real estate.

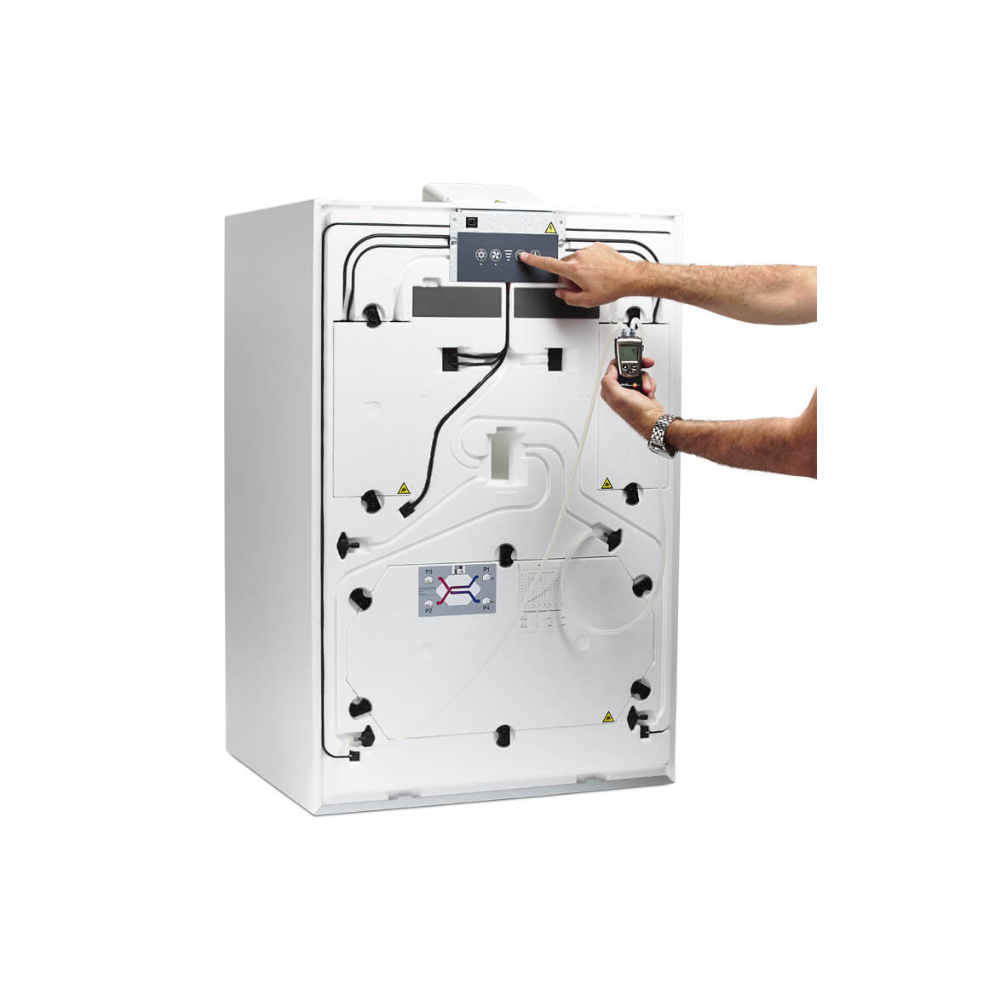

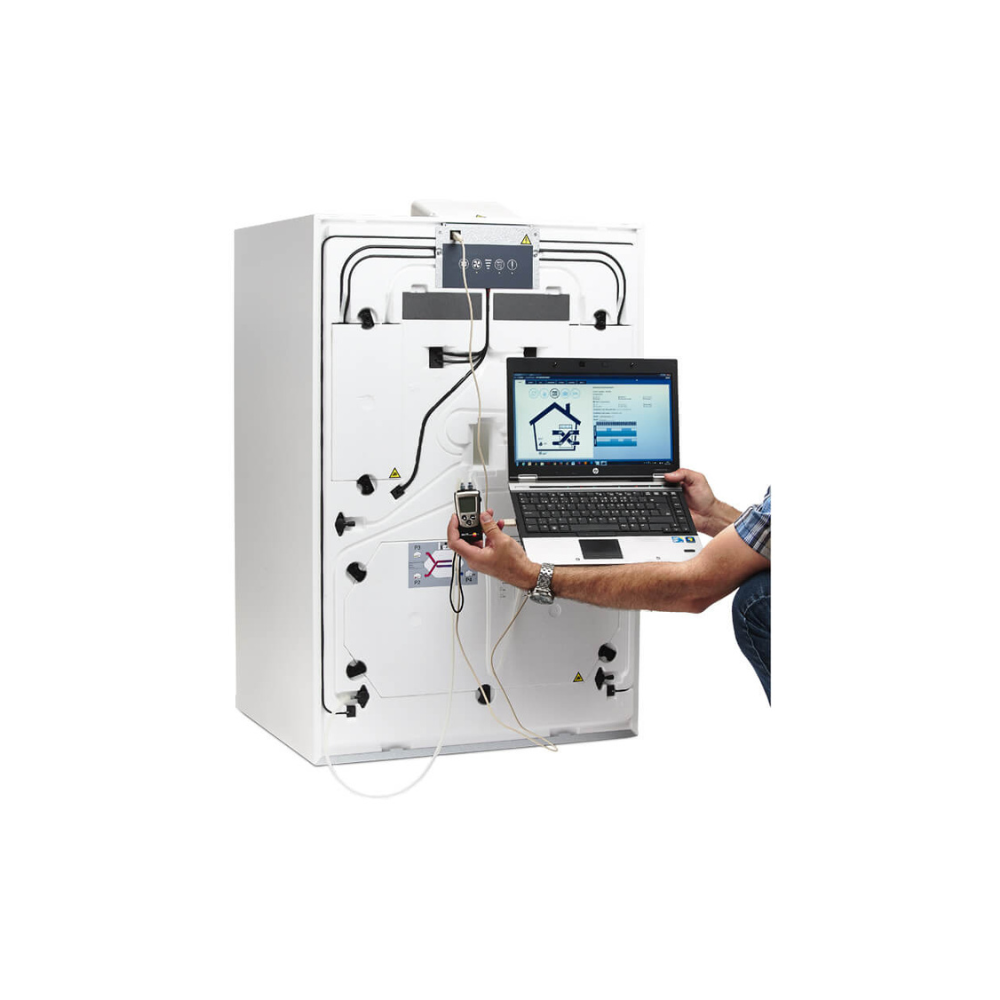

Perfect for both new builds and renovations, the HCV 460 P2 meets Passive House airflow standards, features Class A1 low leakage, and offers excellent filtration options (up to ePM1 >50% with optional F7 filters). Its plug-and-play setup with integrated pressure spigots makes installation and commissioning fast and easy for professionals and DIYers alike.
Features
- Demand-Controlled Ventilation Automatically adjusts based on humidity levels
- Maximum Airflow of 460 m3/h Ideal for medium to large Australian homes
- High-Efficiency Heat Recovery (86%) Complies with EN13141-7
- Fireplace Mode Creates temporary overpressure to enhance chimney draft
- Summer Mode with Bypass Allows cooler outside air to lower indoor temperatures
- Space-Saving Design Footprint similar to a 60x60 cm cupboard
- Quiet EC Motors with Low SPI Optimised for energy-saving operation
- Flexible Mounting with Bottom Outlet Support Suits both left and right duct routing
- Smart Maintenance Alerts Filter alarm with LED indicator and buzzer
Specifications
Specifications
| Model | HCV 460 P2 |
|---|---|
| Max. Achievable Flow @ 100Pa | 460 m³/h |
| Max. Rated Flow @ 100Pa | 360 m³/h |
| Operating Range (DIBt) | 70 – 360 m³/h |
| Passivhaus Operating Range @ 100Pa | 106 – 270 m³/h |
| EN13141-7 Reference Flow @ 50Pa | 252 m³/h |
| Thermal Efficiency | 86% |
| Leakage Rate | <2% (Class A1) |
| Filters (ISO 16890) | ISO Coarse 75% (Opt: ePM1>50%) |
| Filters (EN779) | G4 (Opt: F7) |
| Installation Temp Range | +12°C to +50°C |
| Outdoor Temp (w/o Preheater) | -12°C to +50°C |
| Outdoor Temp (with Preheater) | -20°C to +50°C |
| Max Extract Air Humidity | 10 g/kg |
| Cabinet Dimensions | 540 x 549 x 1050 mm |
| Spigot Size | 160 mm (female) |
| Cabinet Weight | 40 kg |
| Cabinet Colour | RAL 9016 / Galvanised grey |
| Voltage / Frequency | 230 V / 50 Hz |
| Max Power (w/o / with preheater) | 230W / 2080W |
| Protection Class | IP21 |
What's in the box
What's in the box
[1] x Dantherm MVHR - HCV 460 P2 | Residential Ventilation Unit
Downloads
Downloads
Product Manual - Click Here
