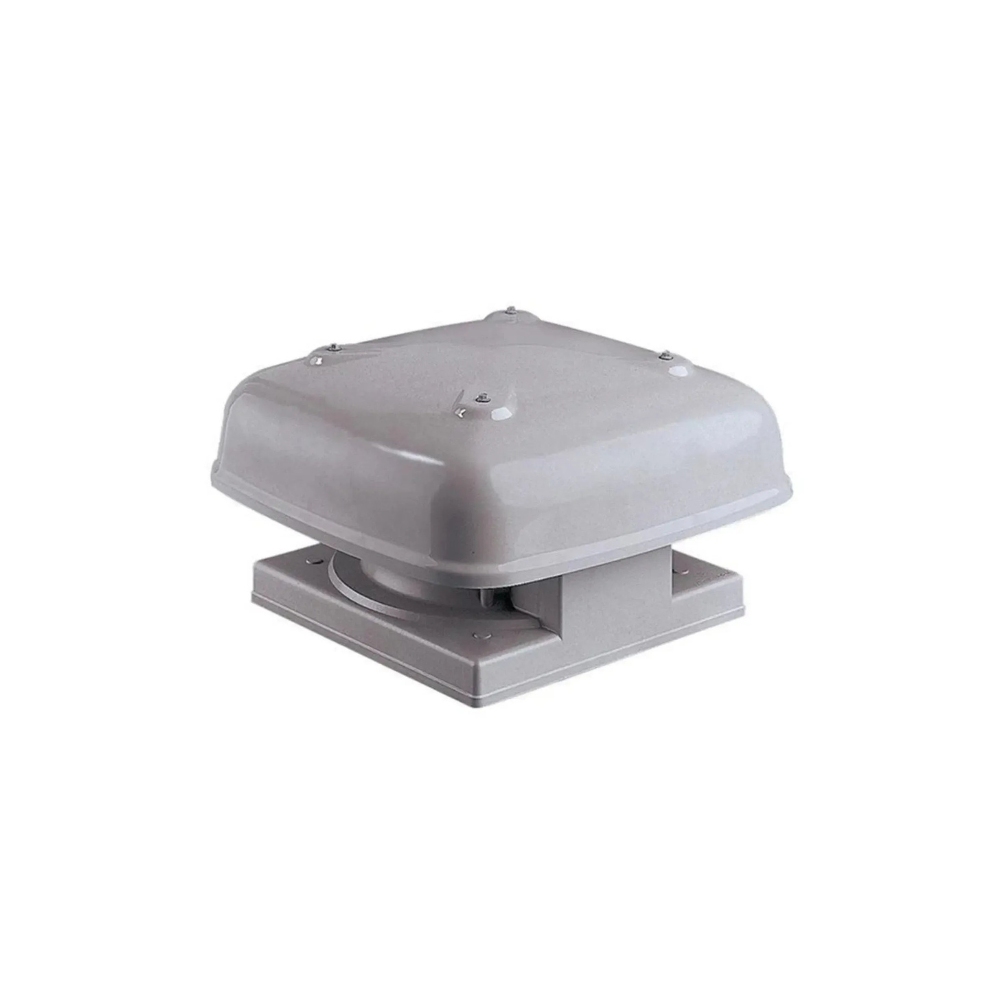

Fantech Gamma Roof Mount Downflow Discharge Exhaust Fan - CD192D | 190MM | 2 Pole | 1 Phase

The Fantech Gamma CE192D Roof Mount Downflow Exhaust Fan is a compact and efficient solution for commercial ducted ventilation systems. With a 190MM diameter and durable construction, this unit is ideal for exhausting air from factories, warehouses, workshops, change rooms, and retail outlets.

Featuring a low profile roof design, the CE192D is fitted with protective bird mesh to safeguard against vermin and debris entering the ductwork. The unit is lightweight, reliable, and suitable for continuous operation in demanding environments.

Whether you are upgrading an existing system or designing a new installation, the Gamma CE192D provides dependable performance, easy installation, and compliance with Australian commercial ventilation needs.

• Robust, lightweight construction for long service life.
• Compact 190MM size for small to medium airflow requirements.
• Low profile roof design for discreet installation.
• Protective bird mesh guard prevents debris and vermin entry.
• Designed for downflow discharge applications in commercial settings.
• Mountable at angles up to 30° for installation flexibility.

• Product Code: CE192D
• Diameter: 190MM (7.5" Inch)
• Speed: 41 RPS
• Power: 0.07 kW
• Current: 0.3A
• Noise Level: 47 dB(A) @3m
• Maximum Pressure: 251 Pa
• Maximum Airflow: 432 M³/H

• [1] x Fantech Gamma Roof Mount Downflow Discharge Exhaust Fan - CD192D | 190MM | 2 Pole | 1 Phase
