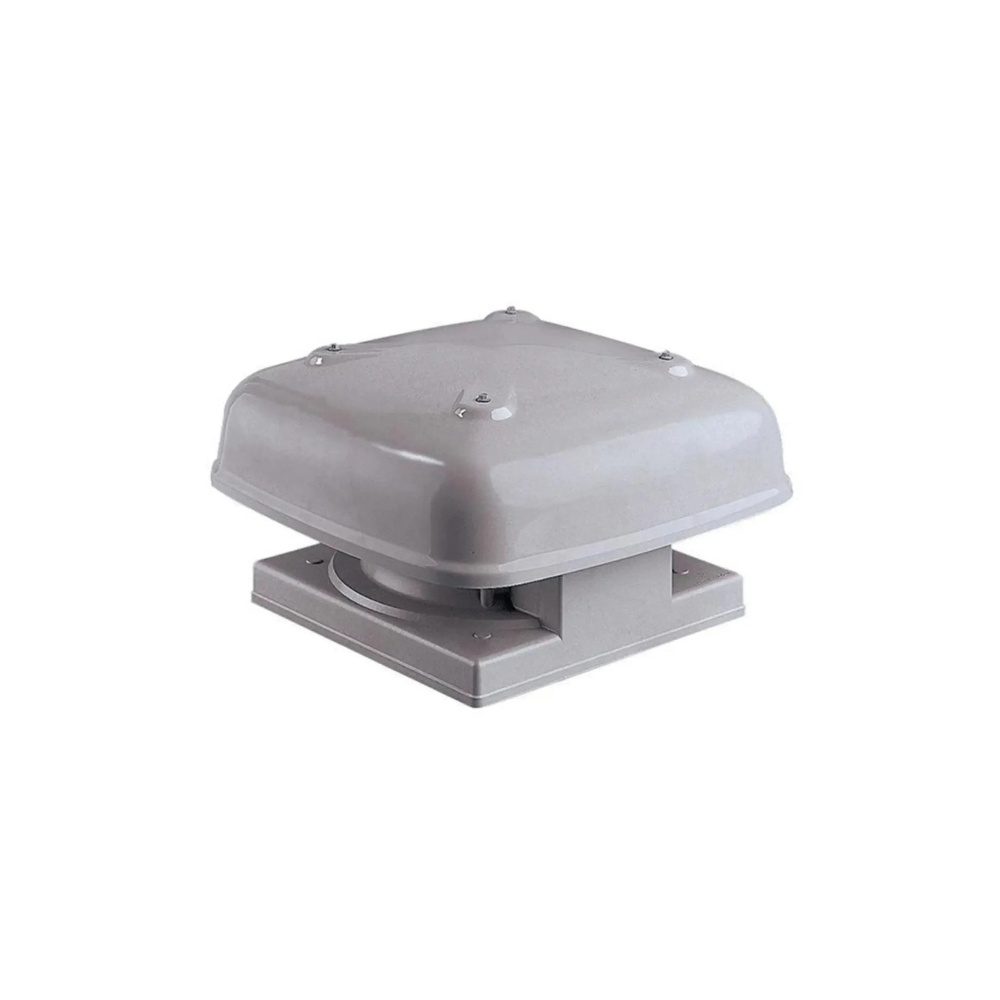

Fantech Gamma Roof Mount Downflow Discharge Exhaust Fan - CE284D | 280MM | 4 Pole | 1 Phase

The Fantech Gamma CE284D Roof Mount Downflow Exhaust Fan is engineered for commercial ducted ventilation systems requiring reliable airflow and quiet operation. With a 280MM diameter and maximum airflow of 1224 M3/H, this fan is ideal for applications in factories, warehouses, workshops, change rooms, and bulk goods retail outlets.

The CE284D features a robust lightweight construction with a low profile roof design, ensuring durability and discreet installation. A protective bird mesh guard is fitted as standard to keep vermin and debris out of the system, maintaining clean and safe airflow.

Delivering strong performance at only 45 dB(A), the Gamma CE284D is perfectly suited for environments where both efficiency and low noise levels are required.

• Durable, lightweight construction for long service life.
• 280MM fan size delivering up to 1224 M³/H airflow.
• Low noise operation at just 45 dB(A) @3m.
• Low profile roofline design for unobtrusive appearance.
• Protective bird mesh guard fitted as standard.
• Designed for downflow discharge applications in commercial systems.
• Mountable at angles up to 30° for versatile installation.

• Product Code: CE284D
• Diameter: 280MM (11" Inch)
• Speed: 23 RPS
• Power: 0.09 kW
• Current: 0.4A
• Noise Level: 45 dB(A) @3m
• Maximum Pressure: 247 Pa
• Maximum Airflow: 1224 M³/H

• [1] x Fantech Gamma Roof Mount Downflow Discharge Exhaust Fan - CE284D | 280MM | 4 Pole | 1 Phase
