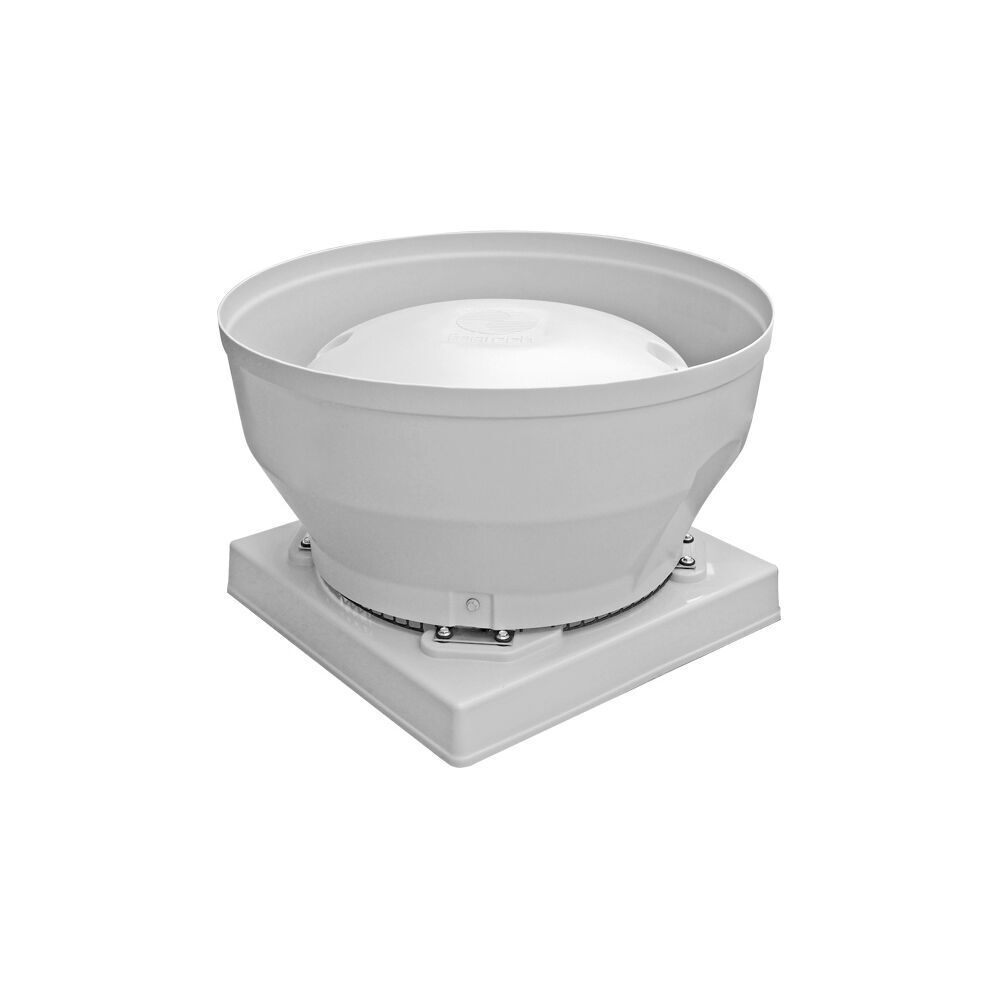

Fantech Gamma Roof Mounted Vertical Discharge Centrifugal Fan - CE354V | 350MM | 4 Pole | 1 Phase
Air Flow 2311 M³/H | Power Consumption 280W | IP44
Fantech Gamma Roof Mounted Vertical Discharge Centrifugal Fan - CE3...
Product Overview
| Airflow (M³/H) | 2311 |
| Power | 280 |
| Motor Type | AC |
| Noise Level | 52 dBA at 3M |
| IP Rating | IP44 |
| Run On Timer | No |
Description
Description
Note: The Gamma Vertical Series Fans are designed for ducted exhaust applications in commercial environments such as kitchens and bathrooms. These units require professional installation by a licensed electrician and do not come with a pre-attached power cable.
The Fantech Gamma CE354V Roof Mounted Vertical Discharge Centrifugal Fan delivers exceptional airflow of 2311 M3/H, making it an excellent choice for large commercial and industrial ducted exhaust systems. Designed with robust yet lightweight construction, the CE354V combines performance and durability. From this model upward, the Gamma range includes bird mesh protection, preventing vermin or birds from entering ducting or buildings. Its UV stabilised cowls withstand Australias harsh climate, while the compact, low profile design ensures a neat and space-saving roof installation. Powered by a single phase 240V motor, the CE354V can be mounted at angles up to 30 degrees, offering flexibility in commercial applications.
Features
Features
- Very high airflow - delivers up to 2311 M³/H for large installations.
- Bird mesh protection - prevents birds and vermin from entering ductwork.
- Robust, lightweight construction - built for heavy-duty use.
- UV stabilised cowls - long-lasting resistance to weather and UV exposure.
- Compact, low profile design - easy to install in limited roof spaces.
- Compatible with ducted systems - reliable ventilation performance.
- Mountable at up to 30° - flexible roof installation options.
- Single phase 240V - simple power connection.
- Accessories available - run-on timers, speed controllers, and upstands.
Specifications
Specifications
- Model No: CE354V
- Air Flow: 2311 M³/H
- L/Sec: 642
- Nominal Speed: 23 R/S
- Average dB(A) @ 3m: 52
- Power Consumption: 280W
- Amps: 1.25
- Flange Size: 355MM (14" Inch)
- IP Rating: IP44
- Weight: 18 Kg
What's in the box
What's in the box
- [1] x Fantech Gamma Roof Mounted Vertical Discharge Centrifugal Fan - CE354V | 350MM | 4 Pole | 1 Phase
Downloads
Downloads
- Specification Sheet - Click Here
