Fantech Minivent Roof Mounted Axial Exhaust Fans - MV204E | 200MM | 4 Pole | 1 Phase

The Fantech Minivent MV204E Roof Mounted Axial Exhaust Fan is a quiet and energy-efficient ventilation solution designed for domestic and commercial applications. Delivering an airflow capacity of 299 M3/H while consuming only 30W, it is ideal for projects requiring effective yet low-energy extraction. Operating at just 38 dB(A), the MV204E is suitable for noise-sensitive environments. With a robust lightweight design, it is speed controllable, compatible with ducted systems, and can be mounted at angles up to 300. Built to IP44 protection standards, this fan ensures long-lasting durability under Australian conditions.

• Airflow capacity of 299 M³/H for reliable ventilation.
• Low noise level of 38 dB(A) for quiet operation.
• Energy efficient with only 30W power consumption.
• Robust and lightweight construction for ease of installation.
• Speed controllable motor to adjust airflow as required.
• Can be used in ducted systems for flexible applications.
• Mountable at up to 30° for versatile positioning.
• Single phase 240V for compatibility with Australian power supply.
• IP44 rated for protection against dust and water ingress.

• Model: MV204E
• Air Flow: 299 M³/H
• Noise Level: 38 dB(A) @ 3M
• Power Consumption: 30W
• Voltage: 240V

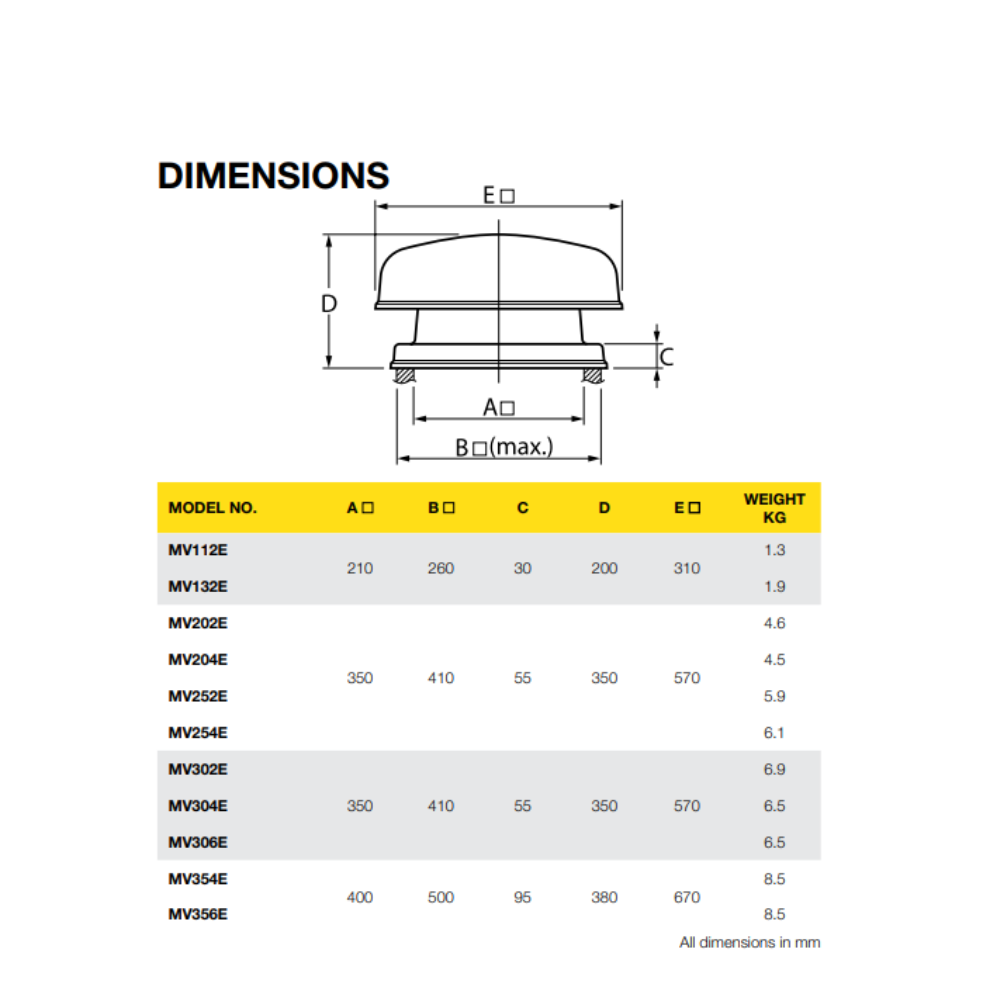

• Flange Size: 200MM (8" Inch)
• Poles: 4 Pole
• Phase: 1 Phase
• IP Rating: IP44

• [1] x Fantech Minivent Roof Mounted Axial Exhaust Fans - MV204E | 200MM | 4 Pole | 1 Phase

• Specification Sheet - Click Here
