Fantech Minivent Roof Mounted Axial Exhaust Fans - MV252E | 250MM | 2 Pole | 1 Phase

The Fantech Minivent MV252E Roof Mounted Axial Exhaust Fan is a high-performance ventilation unit designed for domestic and commercial applications where strong airflow is essential. Delivering an impressive 1274 M3/H capacity, this fan ensures efficient extraction in larger areas. Operating at 51 dB(A), it balances power with manageable noise levels. Built with a robust lightweight design, the MV252E is speed controllable, compatible with ducted systems, and can be mounted at angles up to 300. With an IP44 protection rating and reliable single phase 240V operation, it is ideal for long-lasting use in Australian conditions.

• Powerful airflow of 1274 M³/H for large-scale ventilation needs.
• Robust and lightweight design for durability and easy installation.
• Speed controllable motor to match performance with application requirements.
• Suitable for ducted systems in both residential and commercial environments.
• Mountable at up to 30° angles for versatile installation.
• Single phase 240V compatible with standard Australian power supply.
• Noise level of 51 dB(A) for balanced performance and sound control.
• IP44 rated for dust and moisture resistance.

• Model: MV252E
• Air Flow: 1274 M³/H
• Noise Level: 51 dB(A) @ 3M
• Power Consumption: 110W
• Voltage: 240V
• Flange Size: 250MM (10" Inch)
• Poles: 2 Pole
• Phase: 1 Phase
• IP Rating: IP44

• [1] x Fantech Minivent Roof Mounted Axial Exhaust Fans - MV252E | 250MM | 2 Pole | 1 Phase

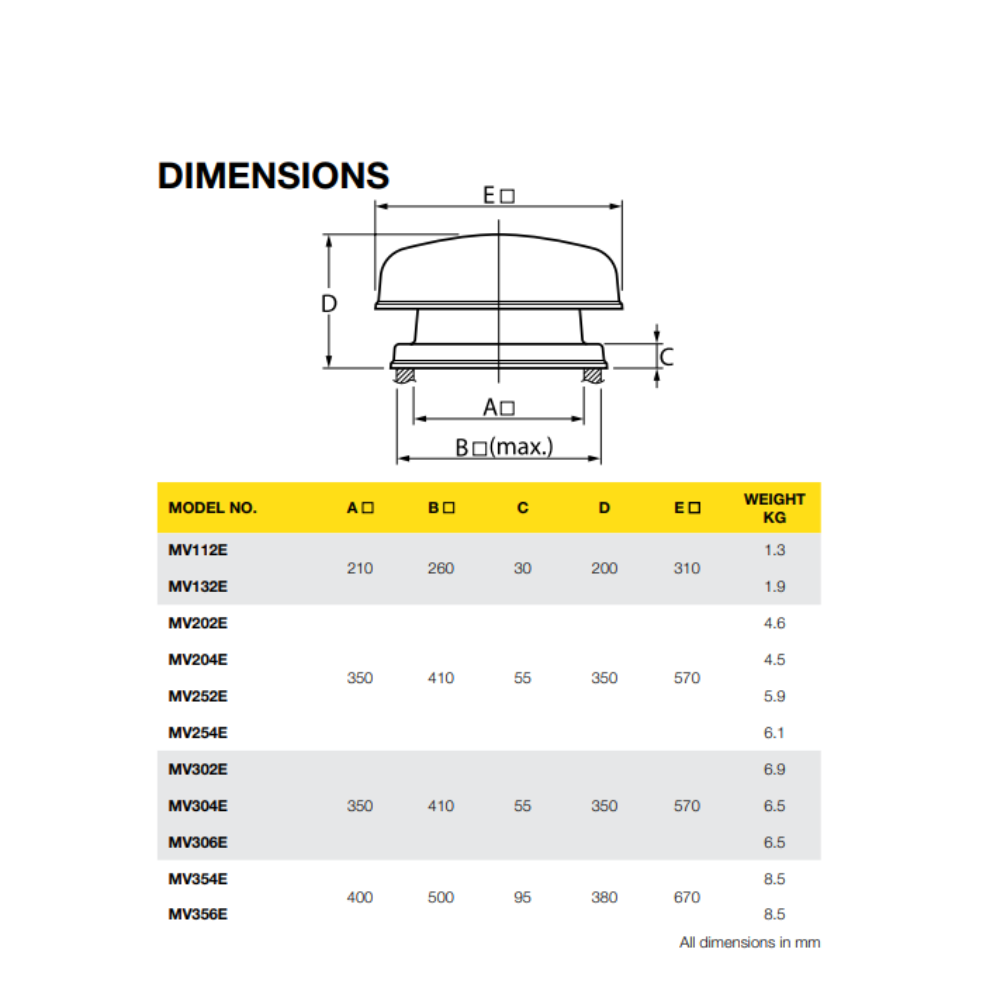

• Specification Sheet - Click Here
