Fantech | SKU:
VEWVNT10001

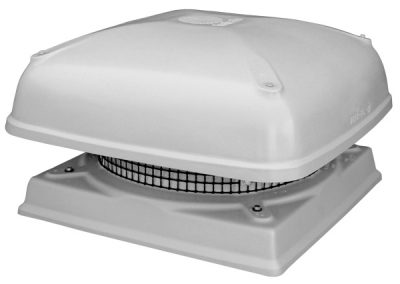

Fantech Alpha Relief Air Vents - Non Motorised | 210MM or 350MM
$189.95
Unit price
/
Unavailable
Pressure Relief Vent | UV Plastic | Bird Mesh | Curb Mount
Stock Availability (LIVE)
Online:
–
Click & Collect
Lidcombe:
–
Fantech Alpha Relief Air Vents - Non Motorised | 210MM or 350MM
From
$189.95
Unit price
/
Unavailable
Description
Description
The Alpha Relief Air Vents have been designed to control air pressure within buildings. They may also be used in a ducted system where the fan is mounted remotely to the cowl. Fitted with bird mesh to eliminate the risk of debris and birds entering the building.
Features
- Lightweight, corrosion-proof construction.
- Can also be used as air intake units.
- Protective bird mesh guards are fitted as standard.
- Base and cowl made of U.V. stabilised plastic.
- Designed for curb mounting.
- Can be mounted at angles up to 30 degrees celcius
Specifications
Specifications
| Model No. | A | B | C | D | E | App. Weight (kg) | App. Vol. (m³) | Min. Free Area (m²) |
|---|---|---|---|---|---|---|---|---|
| MRV1 | 210 | 260 | 30 | 200 | 310 | 1.0 | 0.02 | 0.017 |
| MRV2 | 350 | 410 | 55 | 350 | 570 | 3.0 | 0.14 | 0.073 |
What's in the box
What's in the box
- [1] x Fantech Alpha Relief Air Vents - Non Motorised
