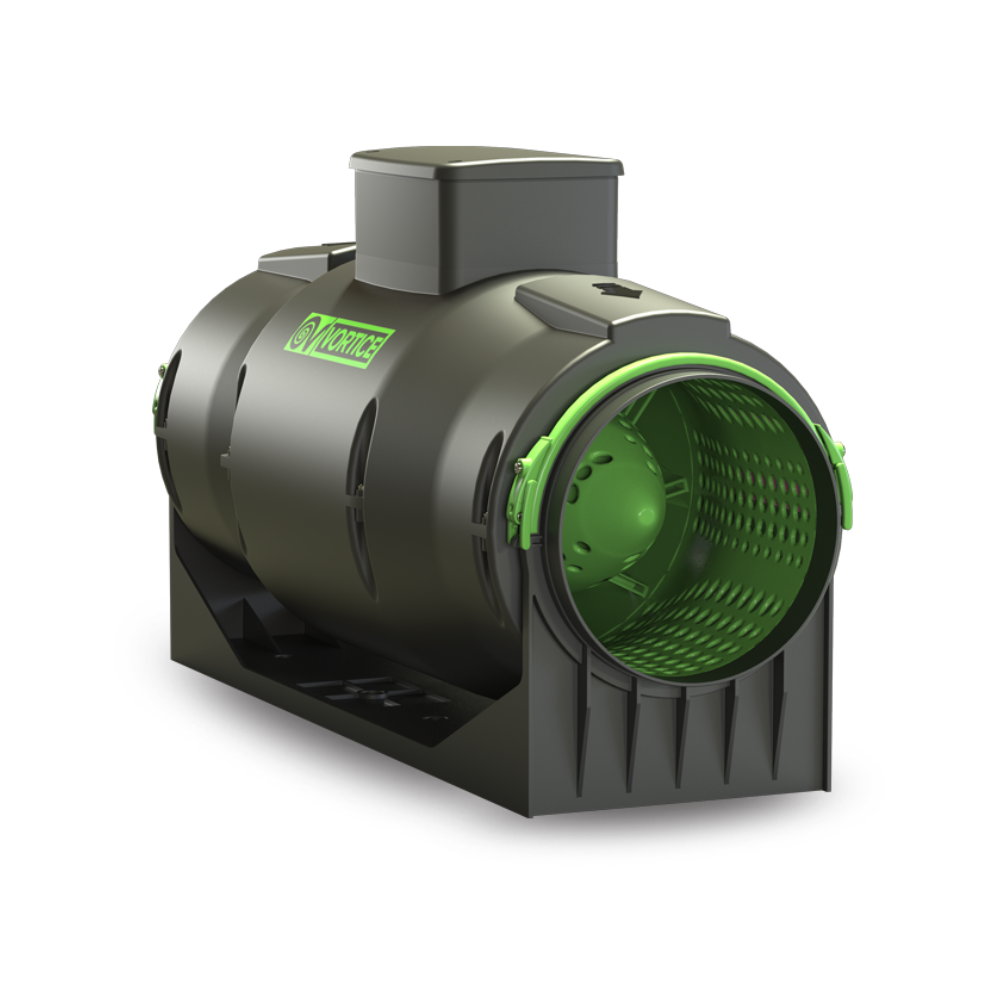

Vortice Silent Inline Mixed Flow EC Fan - Lineo Quiet ES 250 | 250MM (10" Inch)

The Vortice Lineo Quiet ES 250 EC Fan is a high-capacity mixed flow inline extractor designed for large-scale ducted ventilation in commercial, industrial, or high-volume residential applications across Australia. It delivers exceptional airflow performance of up to 1485 m3/h with low noise output, thanks to its integrated acoustic casing and precision-engineered EC brushless motor.

Built with a fire-resistant E2-class housing and centrifugal impeller, the Lineo Quiet ES 250 provides not only energy-efficient operation but also enhanced safety and durability. The motor is thermally protected and supported by ball bearings for long service life, while its casing is IPX5 rated when installed within ductwork.

This unit is fully compatible with 010V potentiometers or two-speed switches, making it highly suitable for automation, BMS, and multi-zone air systems requiring powerful yet quiet extraction.

Applications

• Industrial exhaust or fresh air supply
• Large commercial kitchens and ventilation risers
• Gymnasiums, auditoriums, public buildings
• Multi-level ducted ventilation systems
• Commercial grow rooms or greenhouse ventilation

Features

• Impressive Air Delivery: 1485 m3/h maximum flow for large spaces
• High-Efficiency EC Motor: Thermally protected and low power usage
• IP45 Water Resistant: Ensures safe use in ducted systems
• Low Noise Output: 41 dB(A) breakout at full speed (3m distance)
• Speed Adjustable: Use with 010V control or 2-speed switching
• Heavy Duty Build: Fire-rated E2 class plastic casing (ISO EN 11925-2:2010)
• High Static Pressure: Handles long duct runs (up to 367.8 Pa)
• Australian Certified: CE, UKCA, CB for full compliance

[1] x Vortice Silent Inline Mixed Flow EC Fan - Lineo Quiet ES 250 | 250MM (10" Inch)

Specification Sheet - Click Here

Product Manual - Click Here
