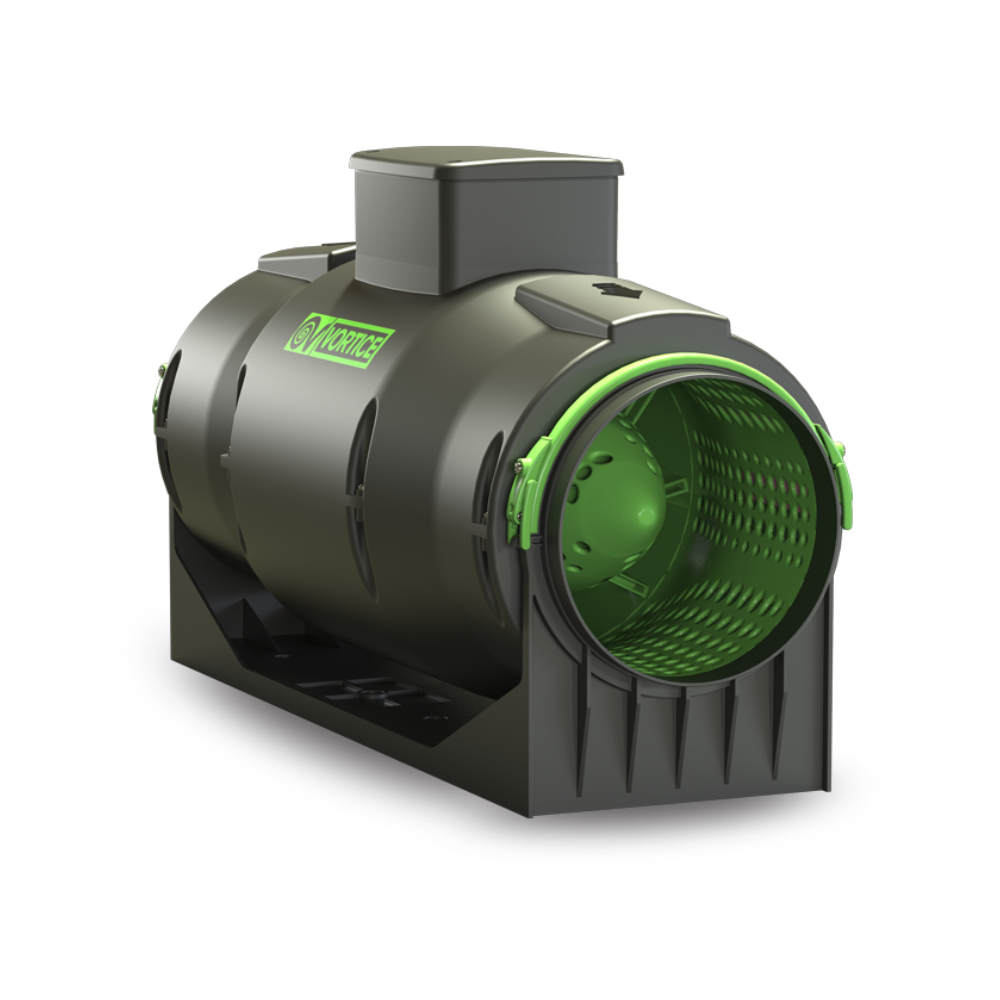

Vortice Silent Inline Mixed Flow EC Fan - Lineo Quiet ES 315 | 315MM (12" Inch)

The Vortice Lineo Quiet ES 315 EC Inline Fan is the ultimate high-performance ventilation solution for large-scale commercial, industrial, or agricultural applications in Australia. Built with a powerful brushless EC motor and delivering up to 2630 m3/h airflow, this fan supports high static pressures and extensive duct systems while maintaining acoustic control.

Crafted from fire-resistant plastic resin (E2 class), the housing incorporates acoustic insulation that drastically reduces breakout noise. Its centrifugal impeller, ball bearing-mounted shaft, and thermal overload protection ensure reliable, quiet, and safe performance.

This 315MM model supports speed regulation via a 010V signal or 2-speed switch, enabling advanced integration with building management systems or automation environments. The unit is IP45 rated when duct-installed, providing exceptional water protection in demanding environments.

Applications

• Warehouse and factory ventilation
• High-capacity HVAC systems
• Commercial kitchens and food processing plants
• Indoor agriculture (e.g., hydroponics or greenhouses)
• Large shopping centres, sports facilities, and theatres

Features

• Maximum Airflow Capacity: 2630 m3/h for large volume ventilation
• Low Power Consumption: Just 220W at full load
• Quiet Operation: Only 48.3 dB(A) breakout at 3m
• Heavy-Duty Construction: E2 fire-resistant plastic casing (ISO EN 11925-2:2010)
• Centrifugal Impeller with EC Motor: High efficiency and durability
• Speed Control Flexibility: 010V potentiometer or 2-speed switch
• High Static Pressure: Up to 379.5 Pa suitable for long duct runs
• Ingress Protection: IP45 compliant when installed in duct

[1] x Vortice Silent Inline Mixed Flow EC Fan - Lineo Quiet ES 315 | 315MM (12" Inch)
