Blauberg Iso-Mix Silent Sub Floor Venitlation Kit 1 - Up To 50m3 | 1 x Intake

Quiet, efficient, and reliable the Blauberg Iso-Mix Silent Sub Floor Ventilation Kit 1 is designed to improve air circulation and control damp in small subfloor spaces up to 50 cubic metres. At the heart of the system is the Blauberg Iso-Mix fan, a sound-insulated mixed flow fan offering high performance with minimal noise. This complete underfloor ventilation fan kit is ideal for residential use where discreet, effective operation is required in moisture-prone crawl spaces.

Features

• Low-Noise Ventilation: Features a sound-insulated Blauberg Iso-Mix fan with 2-speed operation and airflow up to 323 CFM (550 m3/h), providing quiet yet effective subfloor ventilation.
• Ideal for Small Subfloor Spaces: Designed for coverage of up to 50m3, perfect for compact or segmented crawl spaces with limited access.

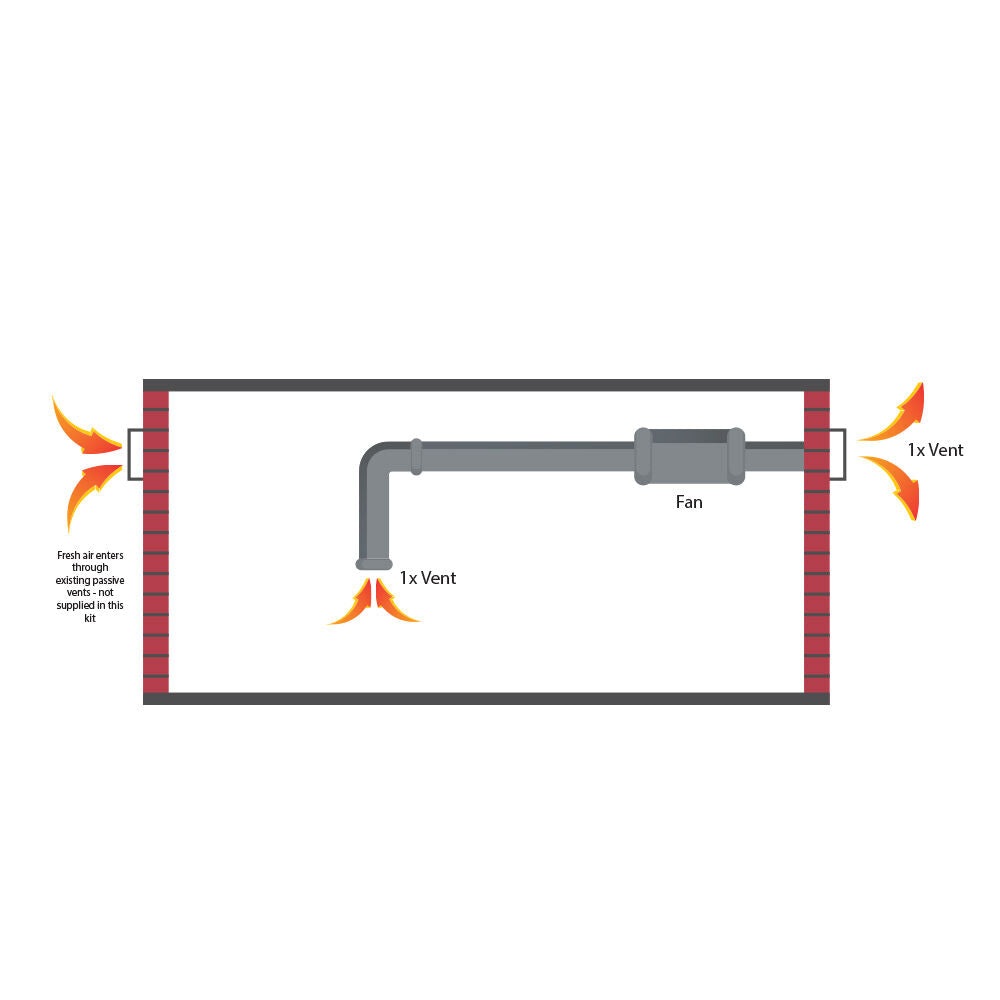

• Single Intake Design: A straightforward one-point duct system simplifies installation while still achieving powerful airflow extraction.
• All-Inclusive Kit: Includes fan, external louvre grilles, ducting, clamps, hanging strap, and digital timer ready for professional or DIY install.
• Optimised for Australian Conditions: Durable and moisture-resistant materials ensure long-lasting performance.
• Automated Fan Control: Supplied with a programmable Mojo Cow Time-R Timer for flexible and energy-efficient operation.

Suited for Subfloor Areas Up To 50m3

This kit uses the Blauberg Iso-Mix 150mm inline fan, engineered with internal acoustic insulation to significantly reduce noise output while maintaining excellent airflow capacity. At 323 CFM (550 m3/h), this fan is ideal for use under bedrooms, living areas, or other noise-sensitive zones where traditional fans may be too loud. With two speed settings, the fan allows you to tailor performance to your ventilation needs.

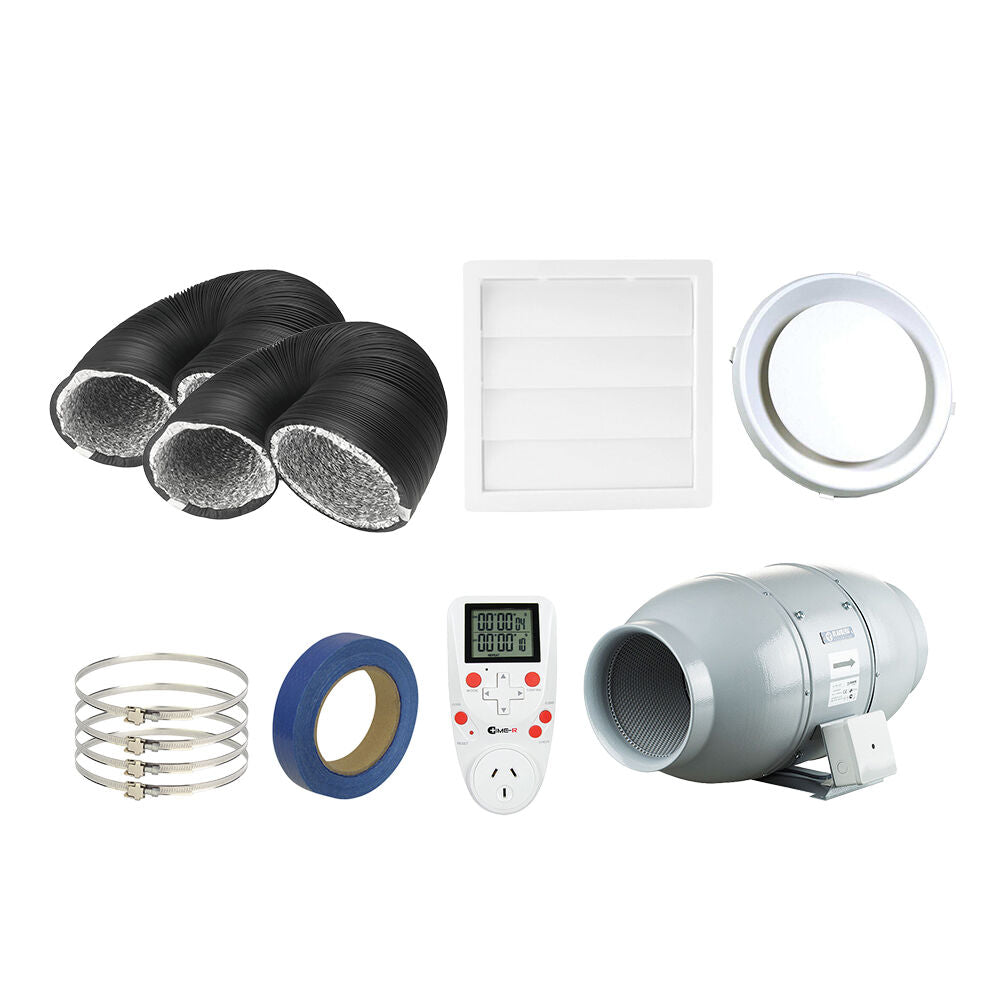

Whats Included in the Kit:

• 1 x Blauberg Iso-Mix Sound Insulated Fan (150mm): Quiet, mixed flow inline fan with high static pressure and built-in acoustic lining for silent operation.
• 1 x Fantech External Fixed Louvre Grilles (150mm): Weather-resistant grilles provide airflow protection while maintaining external aesthetics.
• 1 x Fantech IDJG Ceiling Mounted Internal Grilles (200mm): Adjustable internal grilles allow optimal placement for air intake within the subfloor.
• 2 x Flexible Air Ducts (152mm x 5m): Dual-layer PVC-coated ducting for strength and resistance to moisture or fungal growth.
• 4 x Stainless Steel Duct Clamps (152mm): Quick-fit and rust-resistant clamps to ensure secure, leak-free duct connections.
• 1 x Duct Hanging Strap Tape (25mm x 50m): Heavy-duty blue strap for suspending ducting and the fan securely in subfloor spaces.
• 1 x Mojo Cow Time-R Digital Timer: Precision programmable timer enables full automation of the ventilation schedule.

Compact and Ultra-Quiet Subfloor Ventilation

The standout feature of this system is the Blauberg Iso-Mix fan, which combines strong airflow with near-silent performance. This makes the kit ideal for townhouses, bedrooms above subfloors, or any residential setting where noise must be kept to a minimum. Its single intake configuration ensures easy duct routing and installation in smaller underfloor areas.

Designed for Longevity in Australian Environments

Engineered as a sub floor ventilation kit Australia property owners can depend on, the system features components rated for continuous use in moisture-prone conditions:

• PVC-coated ducts resist mould, corrosion, and UV damage.

• Stainless steel clamps provide secure fittings that won't degrade over time.

• The fan housing is built with acoustic foam and durable casings for long-term use.

Easy to Install with Automated Operation

All items in the kit are pre-matched for compatibility. With its included timer and mounting accessories, the system can be installed quickly and configured to run on any custom schedule. Use the Mojo Cow Timer to set specific hours, minutes, or seconds of operation per cycle for full energy-saving control.

Whether you're retrofitting a small crawl space or addressing localised damp issues, the Blauberg Iso-Mix Silent Sub Floor Ventilation Kit 1 provides the quiet performance, reliability, and convenience needed to protect your home.

Invest in a healthier living environment with this professional-grade, whisper-quiet underfloor ventilation fan kit, purpose-built for Australian homes with noise-sensitive requirements.

• [1] x Blauberg Sound Insulated Iso-Mix Exhaust AC Fan - 150MM (6" Inch) | 323CFM | 2 Speed
• [1] x Fantech PGL Single Unit External Fixed Louvre Grille - [Flange Size: 150MM (6" Inch)] - Exhaust Vent
• [1] x Fantech IDJG Ceiling Mounted Inlet Internal Grille - [Flange Size: 200MM (8" Inch)]  - Intake Vent
• [1] x Mojo Cow Time-R Ultimate Second Timer
• [2] x Black PVC Coated Dual Layer Flexible Air Duct - 5 Meters | 152MM (6" Inch)
• [4] x Quick Fit Stainless Steel Duct Clamp for Rigid & Flexi Ducting - 152MM (6" Inch)
• [1] x Duct Hanging Strap Tape - 25MM x 50M | Blue
