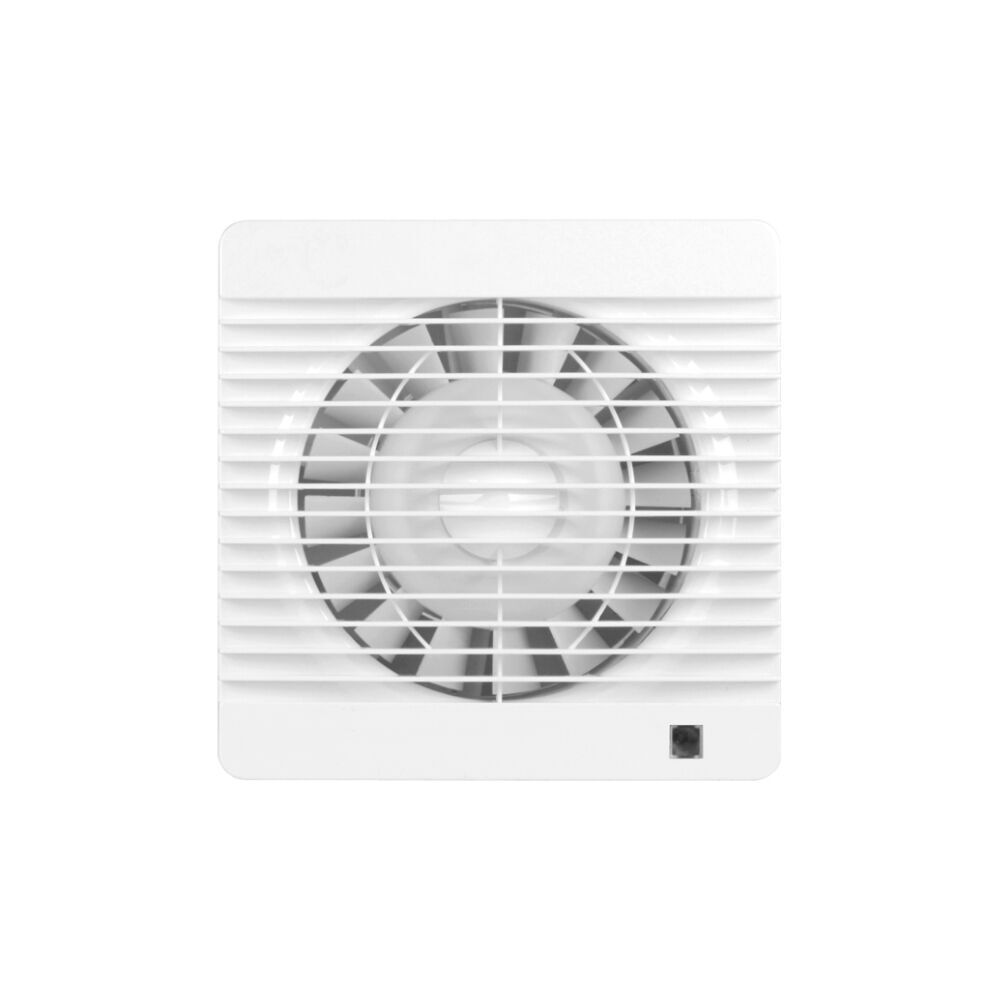

Fantech EDM Wall Mounted Fan with Backdraft Shutter - 200MM (8" Inch) | EDM-200C

The Fantech EDM-200C Wall Mounted Fan is engineered for reliable performance in both residential and commercial applications. Designed for either wall or ceiling installation, this fan effectively exhausts stale and moist air, helping maintain a fresh and healthy indoor environment. Featuring a robust mechanical backdraft shutter, it prevents outside air and dust from entering when the fan is switched off, making it ideal for homes, offices, and worksites exposed to harsh conditions.

Constructed from tough injection moulded plastic, the EDM-200C is built for long-lasting durability. It also includes internal thermal motor cut-out protection for safe operation. The fans advanced wax motor technology ensures smooth, quiet shutter operation with reduced noise levels, providing dependable and efficient ventilation every time.

• Durable Construction - Made from tough injection moulded plastic for long service life.
• Thermal Motor Protection - Built-in cut-out feature protects the motor against overheating.
• Wax Motor Technology - Smooth and quiet shutter operation for reduced noise and reliable performance.
• Backdraft Protection - High quality mechanical shutter prevents outside air entering when the fan is switched off.
• Flexible Installation - Suitable for both wall and ceiling mounting in homes and commercial buildings.

• Model No.: EDM-200C
• Air Flow: 180 m³/hr
• Air Flow: 50 L/sec
• Fan Speed: 2520 RPM
• Average Noise Level: 36 dB(A) @ 3m
• Power: 25W
• Voltage: 220-240V
• IP Rating: IP44

• [1] x Fantech EDM Wall Mounted Fan with Backdraft Shutter - 200MM (8" Inch) | EDM-200C

• Specification Sheet - Click Here
