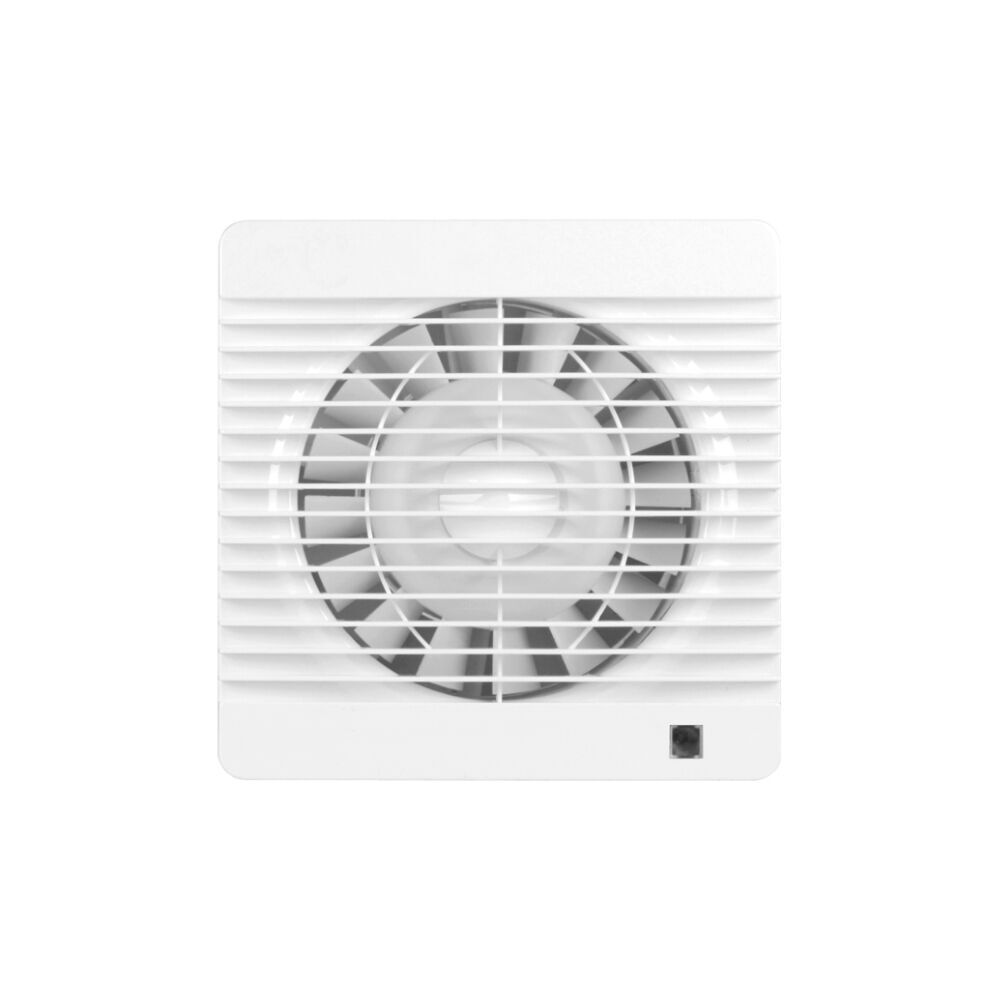

Fantech EDM Wall Mounted Fan with Backdraft Shutter - 300MM (12" Inch) | EDM-300C

The Fantech EDM-300C Wall Mounted Exhaust Fan is designed to efficiently remove stale and moist air from both residential and commercial spaces. Whether installed on a wall or ceiling, this unit delivers reliable ventilation performance. Its robust, mechanically driven backdraft shutter prevents dust and outside air from entering the building, even when the fan is switched off. This makes it ideal for homes, on-site offices, and harsh environments where durability is essential.

Constructed from tough injection moulded plastic and featuring internal thermal motor cut-out protection, the EDM-300C is built for long-lasting use. The 300MM model also incorporates a slim line body design for an unobtrusive appearance. Using advanced wax motor technology, its electric shutters open and close with a smooth, quiet action, ensuring efficient and faultless operation every time.

• Backdraft shutter prevents dust and outside air when fan is off.
• Tough injection moulded plastic construction for durability.
• Internal thermal motor cut out for added protection.
• Slim line body design on the 300 model for neat installation.
• Wax motor technology provides smooth and quiet shutter operation.
• Suitable for residential and commercial ventilation.

• Model - EDM-300C
• Air Flow - 280 M³/H
• Power - 35W
• Speed - 2200 RPM
• Noise Level - 41 dB(A) @3M
• Voltage - 220-240V
• IP Rating - IPX4
• Flange Size - 150MM (6" Inch)

• [1] x Fantech EDM Wall Mounted Fan with Backdraft Shutter - 300MM (12" Inch) | EDM-300C

• Specification Sheet - Click Here
