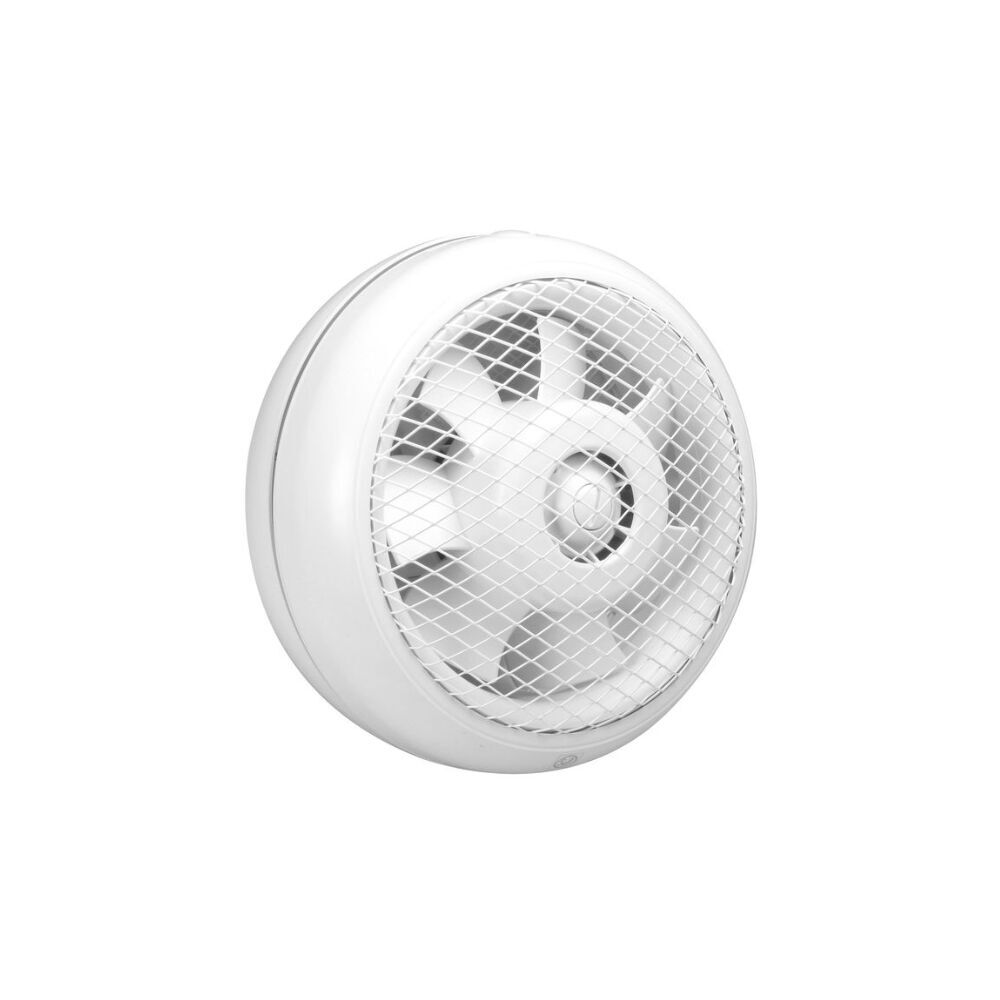

Fantech HCM Series Wall/Window Mounted Exhaust Fan - HCM-225N | w/ Gravity Louvre

The Fantech HCM-225N Wall/Window Mounted Exhaust Fan is designed for high-performance ventilation in large domestic kitchens, bathrooms and laundries. Featuring a compact low profile design, it integrates neatly into wall or window installations. The gravity-operated louvre shutter prevents dust and rain from entering, making it ideal for Australian conditions. With quiet operation and a powerful air flow output, the HCM-225N ensures maximum comfort. Rated for continuous run, it delivers long-lasting reliability. An optional weather cap is available for skylight or exposed installations, offering additional protection in seaside and high-rise locations.

• Compact low profile design - neat and discreet for walls and windows.
• Quiet operation - powerful performance with minimal noise.
• Gravity operated louvre shutter - stops rain and dust ingress.
• High airflow capacity - suitable for large rooms needing strong ventilation.
• Continuous run rated - dependable long-term performance.
• Optional weather cap - provides extra protection for skylight and exposed areas.

• Model: HCM-225N
• Air Flow: 508 M³/H
• L/Sec: 141
• Fan Speed: 1350 RPM
• Noise Level: 39 dB(A) @ 3m
• Power Consumption: 28W
• Voltage: 220-240V
• IP Rating: IPX4

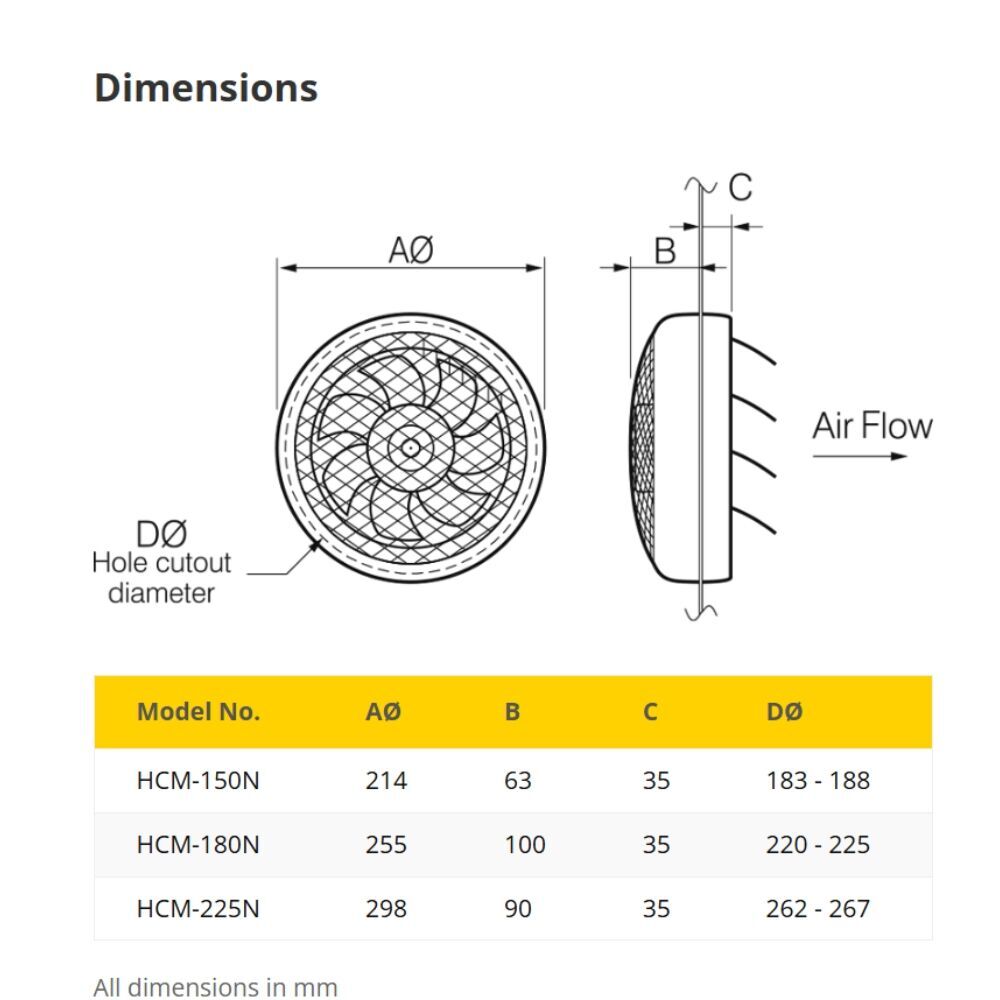

• Cutout Size: 262-267MM

• [1] x Fantech HCM Series Wall/Window Mounted Exhaust Fan - HCM-225N | w/ Gravity Louvre

• Specification Sheet - Click Here
