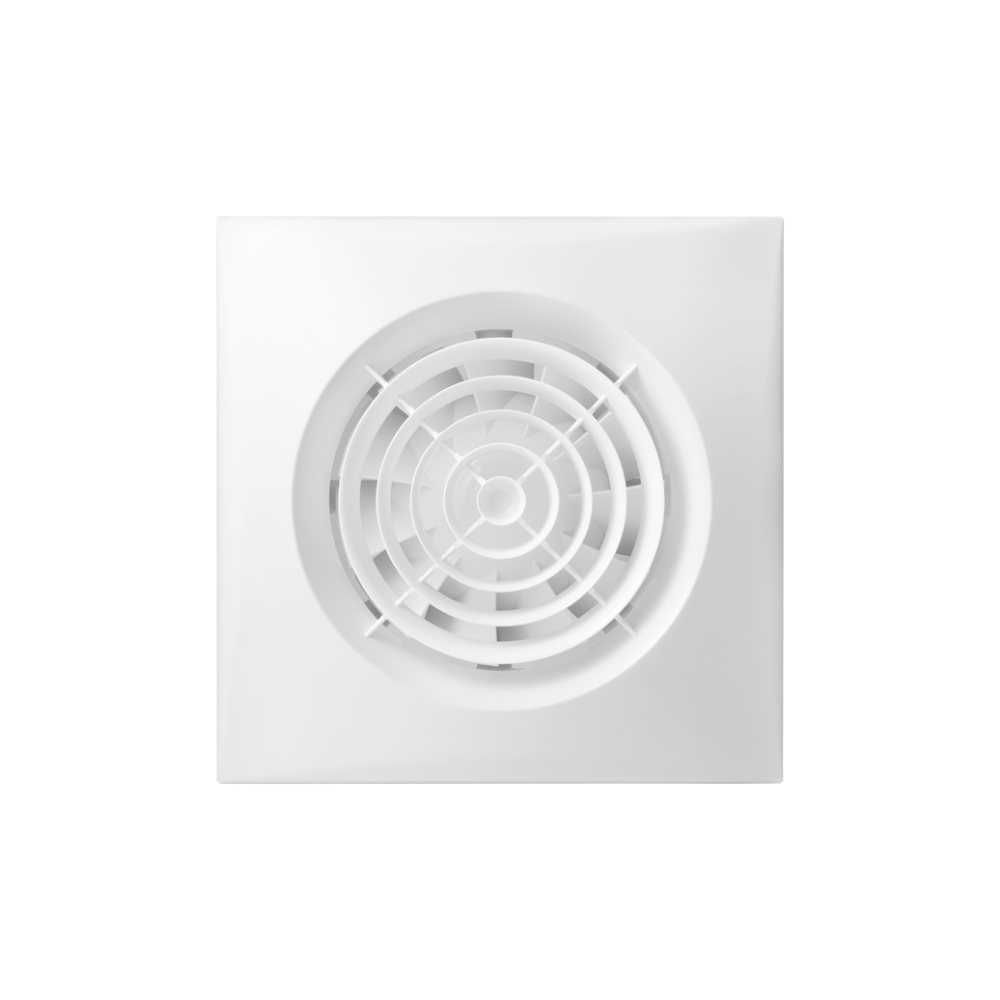

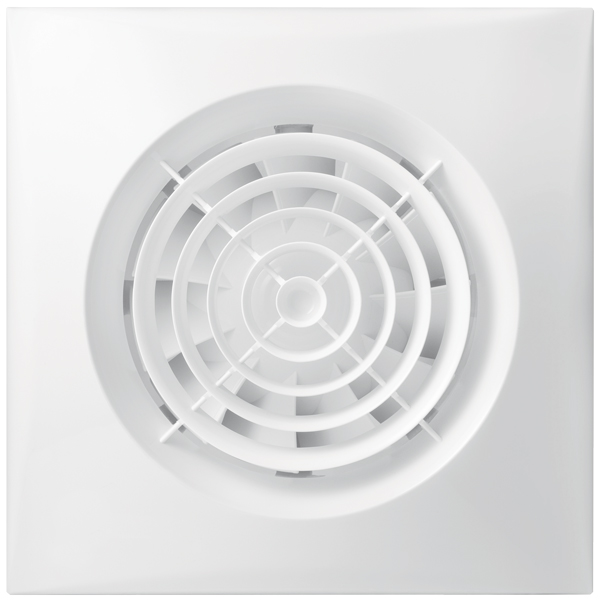

Fantech Silent Wall/Ceiling Mounted Fan w/ Backdraft Damper & Run-On Timer - 100MM / 125MM / 150MM
Silent Operation | Run-On Timer | Backdraft Damper | 100–150MM
Description
Description
The Fantech Silent Series Wall/Ceiling Mounted Fan with Run-On Timer is a refined and efficient ventilation solution for bathrooms, ensuites, and toilets. Purpose-built for quiet operation, this fan features an advanced vibration-absorbing design that minimises noise while a high-performance motor and impeller ensure rapid and effective air extraction.
This model includes a run-on timer, allowing the fan to continue operating for a preset duration after the room is vacated-enhancing moisture control and air quality. It also comes equipped with a low-loss foil backdraft damper to prevent the return of stale air, and an internal thermal motor cut-out for safety.
Features
- Low Noise Output: Designed with noise- and vibration-dampening technology for discreet operation.
- Run-On Timer Function: Automatically continues operation for a preset time after the switch is turned off, ensuring thorough ventilation.
- Effective Air Movement: High-efficiency motor and impeller system deliver strong airflow for optimal ventilation.
- Backdraft Protection: Integrated low-loss foil damper prevents air from re-entering the room.
- Thermal Overload Safety: Built-in motor protection prevents overheating.
- Versatile Mounting: Suitable for both wall and ceiling installations.
Specifications
Specifications
Model No. | Backdraft Damper | Humidistat | Run-on Timer | m³/hr† | L/sec† | Fan Speed (rpm) | Avg. dB(A) @ 3m | Watts | Volts | IP Rating |
---|---|---|---|---|---|---|---|---|---|---|
SILENT-100T-W | Yes | No | Yes | 95 | 26 | 2400 | 27 | 8 | 230 | IP45 |
SILENT-125T-W | Yes | No | Yes | 175 | 48 | 2350 | 33 | 16 | 230 | IP45 |
SILENT-150T-W | Yes | No | Yes | 280 | 78 | 1700 | 32 | 29 | 230 | IP45 |
What's in the box
What's in the box
- [1] x Fantech Silent Wall/Ceiling Mounted Fan w/ Backdraft Damper & Run-On Timer - 100MM / 125MM / 150MM
Downloads
Downloads
Product Manual - Click Here
