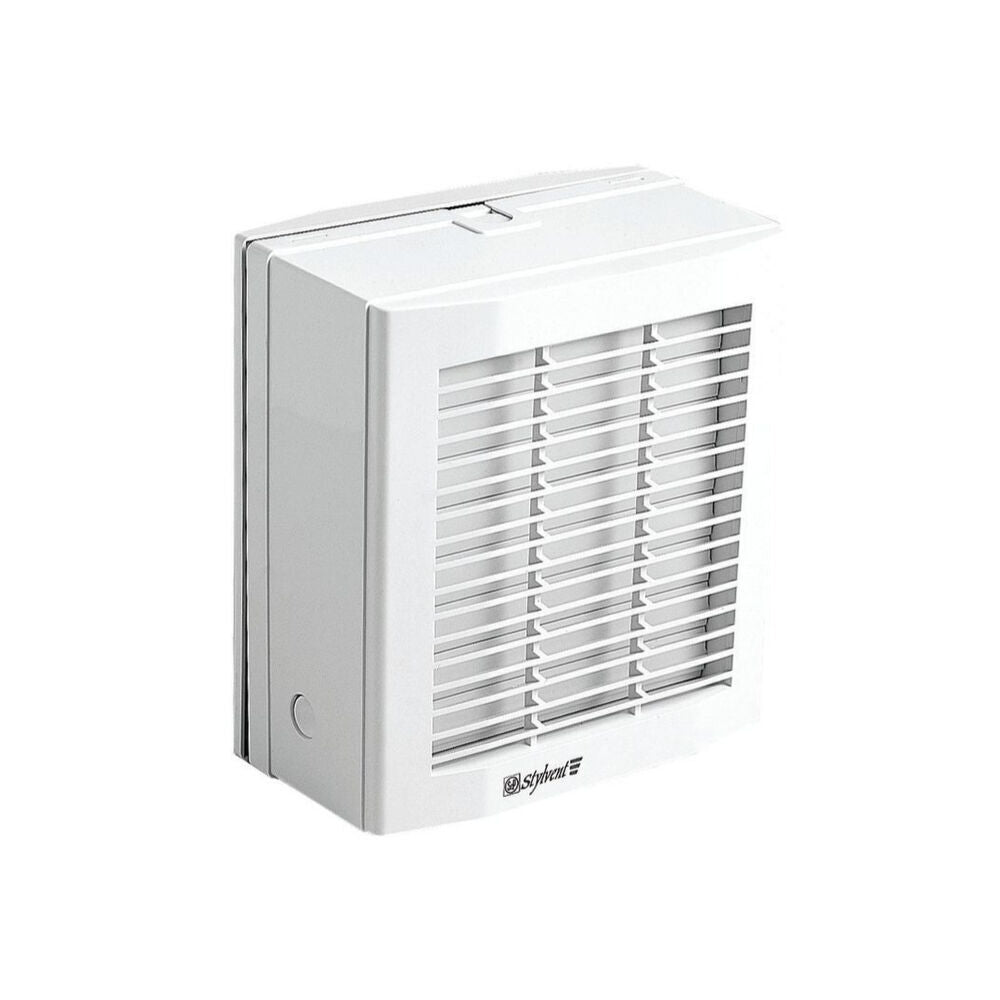

Fantech Stylvent Wall & Window Mounted Exhaust Fan - HV-230AE

The Fantech Stylvent HV-230AE Exhaust Fan is a powerful wall and window mounted ventilation solution ideal for residential and commercial use. Delivering a strong 600 M3/H airflow, it efficiently removes stale, humid and contaminated air from larger bathrooms, laundries, kitchens, workshops and office spaces.

Built with a weather and impact resistant housing, the HV-230AE is engineered to withstand Australias demanding conditions. Rated for continuous run, it ensures long-lasting, reliable operation. Unlike the smaller HV-150AE model, the HV-230AE offers the flexibility of dual mode operation, allowing it to function in exhaust mode as standard, or be direct wired with a reversing switch for supply air or dual mode use.

The removable front cover makes cleaning quick and easy, maintaining efficiency and hygiene. For added protection in exposed locations such as seaside homes or high-rise buildings, an optional weather cap with bird mesh is available, colour matched to the fan body.

The Fantech Stylvent HV-230AE is the perfect choice for builders, renovators, and facility managers seeking a high-capacity, durable and low-maintenance exhaust fan for medium to large spaces.

• Versatile Mounting - Can be wall or window mounted to suit residential or commercial installations.
• High Airflow - Provides 600 M³/H airflow, ideal for larger rooms and spaces.
• Dual Mode Capability - Standard exhaust mode with option for supply air or dual mode using a reversing switch.
• Continuous Run Rated - Designed for dependable, ongoing performance.
• Durable Build - Weather and impact resistant housing for long service life.
• Easy Maintenance - Removable cover for fast cleaning and servicing.
• Optional Weather Cap - Provides added wind and rain protection, with integrated bird mesh.

• Model No: HV-230AE
• Air Flow: 600 M³/H
• L/Sec: 167
• Fan Speed: 1250 RPM
• Sound Level: 43 dB(A) @ 3m
• Power Consumption: 34W
• Voltage: 230-240V
• IP Rating: IPX4

• [1] x Fantech Stylvent Wall & Window Mounted Exhaust Fan - HV-230AE

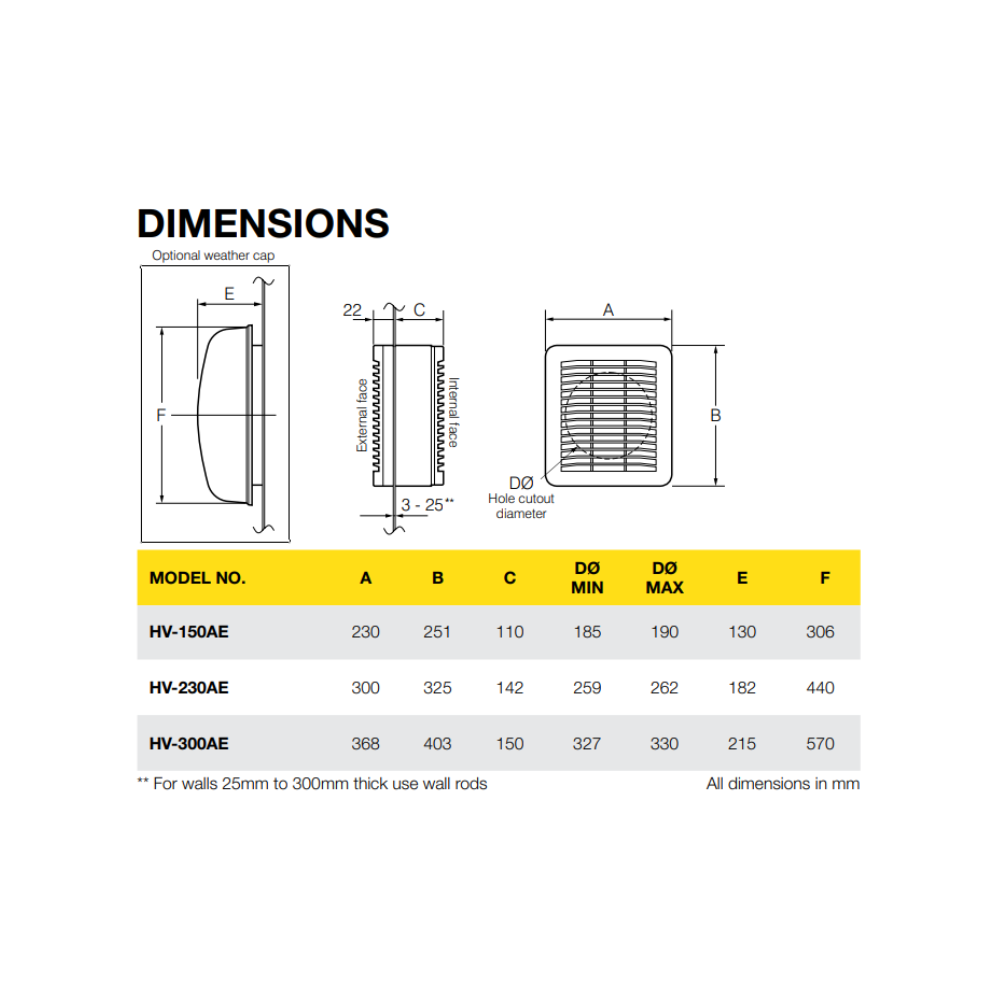

• Specification Sheet - Click Here
