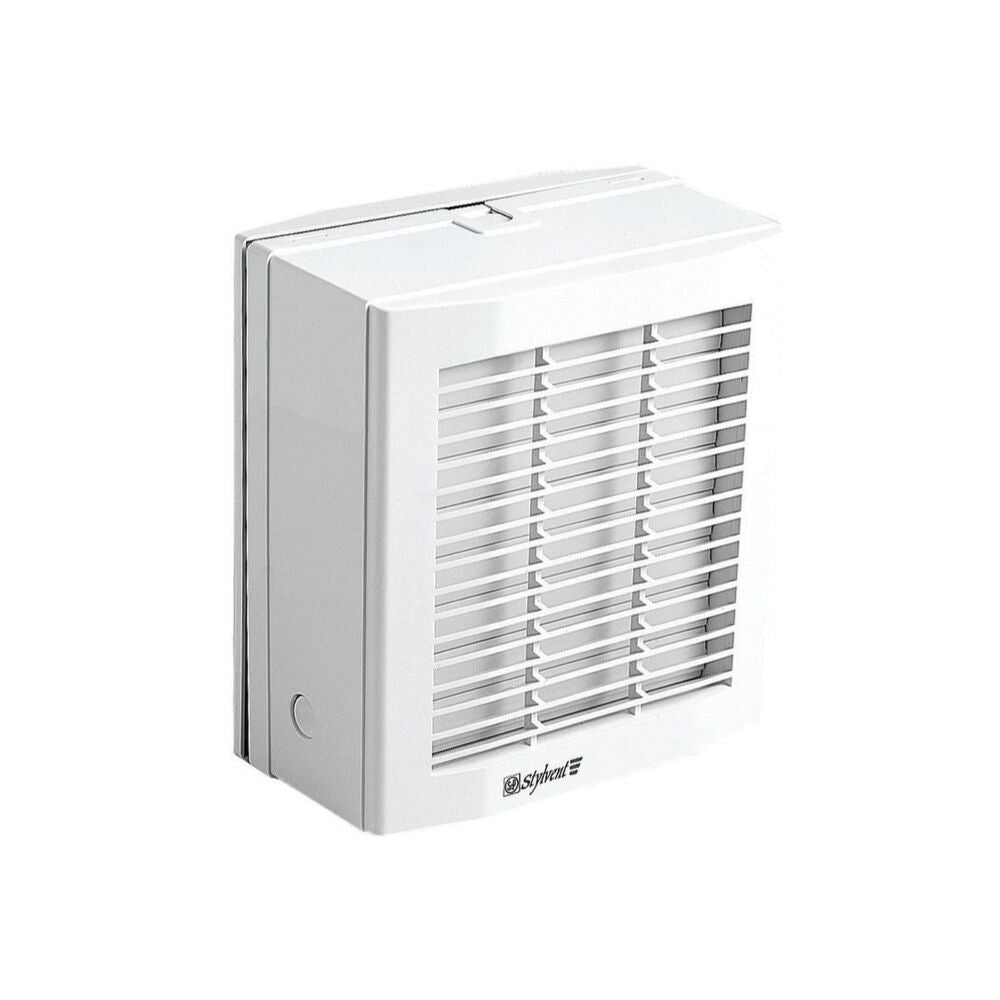

Fantech Stylvent Wall & Window Mounted Exhaust Fan - HV-300AE

The Fantech Stylvent HV-300AE Exhaust Fan is the largest in the Stylvent series, delivering a powerful 1100 M3/H airflow for effective ventilation in large residential and commercial spaces. Perfect for workshops, kitchens, laundries, gyms, offices and light industrial applications, this unit ensures rapid removal of stale air, moisture and odours.

Featuring a robust, weather and impact resistant housing, the HV-300AE is designed for durability in Australias toughest conditions. Rated for continuous run, it provides reliable long-term performance. The HV-300AE offers dual mode functionality, operating in standard exhaust mode, or with direct wiring and a reversing switch it can be configured for supply air or dual mode use.

Maintenance is simple thanks to the removable front cover, which allows for easy cleaning. For exposed or coastal areas, an optional weather cap with bird mesh is available, colour matched to the fan for a neat installation.

The Fantech Stylvent HV-300AE is the go-to choice for those needing a high-capacity, heavy-duty and low-maintenance exhaust fan suitable for larger environments.

• High Capacity Ventilation - Delivers 1100 M³/H airflow, ideal for large spaces.
• Flexible Installation - Suitable for both wall and window mounting.
• Dual Mode Operation - Standard exhaust mode, with option for supply or dual mode using a reversing switch.
• Durable Construction - Built with a weather and impact resistant housing.
• Continuous Run Rated - Designed for reliable, long-term use.
• Easy Maintenance - Removable cover for fast and convenient cleaning.
• Optional Weather Cap - Added wind and rain protection with integrated bird mesh for exposed locations.

• Model No: HV-300AE
• Air Flow: 1100 M³/H
• L/Sec: 306
• Fan Speed: 1150 RPM
• Sound Level: 46 dB(A) @ 3m
• Power Consumption: 68W
• Voltage: 230-240V
• IP Rating: IPX4

• [1] x Fantech Stylvent Wall & Window Mounted Exhaust Fan - HV-300AE

• Specification Sheet - Click Here
