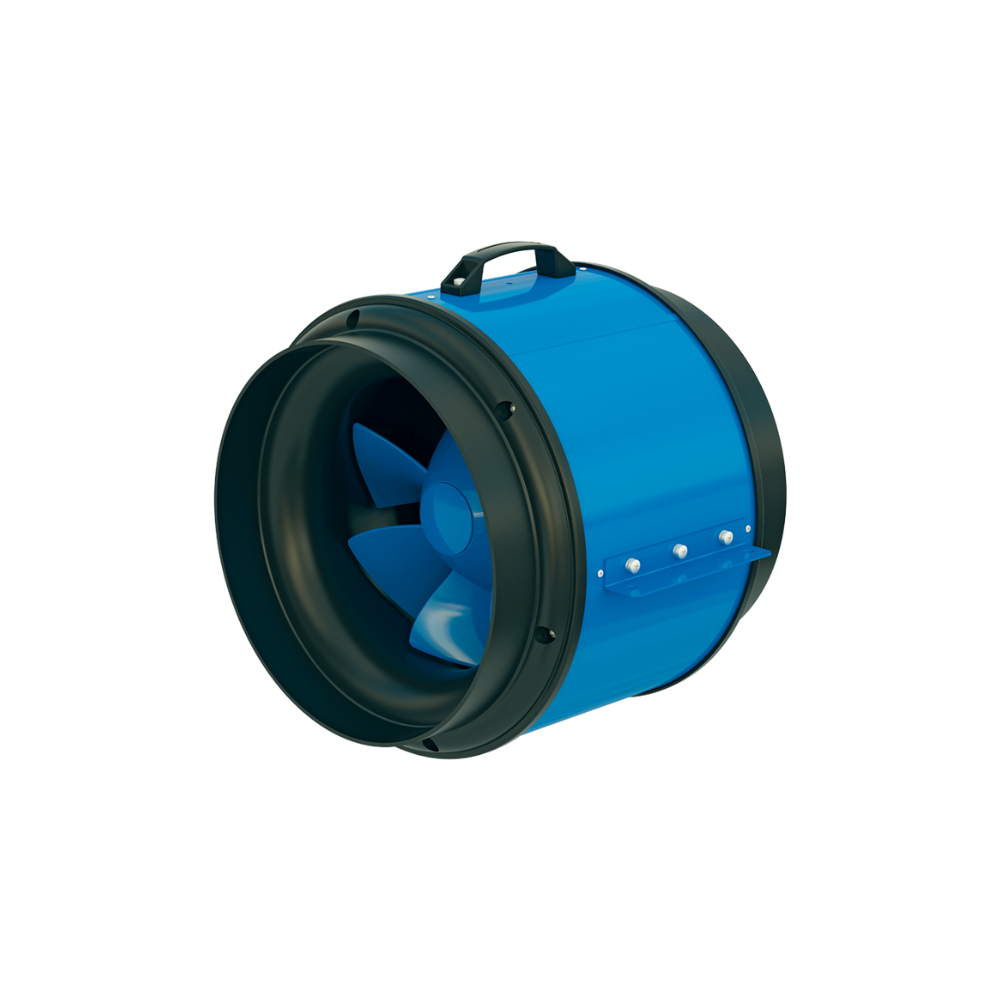

Blauberg Primo 355 Mixed Flow Inline AC Fan - 355MM (14" Inch) | 3 Speed
Air Flow 2485 M³/H | Power Consumption 150W | IPX4
Blauberg Primo 355 Mixed Flow Inline AC Fan - 355MM (14" Inch)...
Product Overview
| Model Number | Primo 355 |
| Airflow (M³/H) | 2485 |
| Duct Flange Size | 350MM (14" Inch) |
| Motor Type | AC |
| Exhaust Fan Power (W) | 150 |
| Noise Level | 43 dBA at 3M |
| IP Rating | IPX4 |
| Power Cord | Yes |
| Backdraft Damper | No |
| Voltage | 240V - 1 Phase |
| Humidistat | No |
| Thermostat | No |
| Speeds / Control | 3-Speed |
| Smart Control (Wi-Fi/App) | No |
| Run On Timer | No |
| Warranty | Blauberg - 2 years replacement warranty* |
Description
Description
The Blauberg Primo 355 Mixed Flow Inline AC Fan 355MM is a serious bit of kit for commercial and industrial duct runs that need real pull. With a maximum airflow of 2485 M3/H through 355MM (14" Inch) round duct, it is ideal for larger amenities, plant rooms, warehouses and commercial kitchens across Australia.
A 3-speed AC mixed flow motor lets you dial in performance from lower noise everyday operation up to full capacity when you need to clear heat, fumes or stale air quickly. The high efficiency mixed flow impeller delivers strong pressure for long or high resistance ductwork, while the polymer casing with metal reinforcement, ball bearing motor and IPX4 rating are built for continuous duty in demanding environments.
Designed to be installed in any position within the duct, Primo 355 integrates easily with speed controllers and accessories for zoning or demand control. It is a robust, low-fuss choice for tradies, builders and maintenance contractors needing reliable airflow on commercial jobs. Add the Blauberg Primo 355 to your cart and get high-performance inline ventilation on your next project.
Features
Features
- 355MM mixed flow inline fan for large commercial and industrial duct systems
- High airflow up to 2485 M³/H with strong pressure for long duct runs
- 3 speed AC asynchronous motor with thermal overload protection
- Polymer casing reinforced with metal for extra strength and durability
- IPX4 ingress protection, suitable for humid and demanding environments
- Installation in any position within round duct systems using standard accessories
- Compatible with multi speed and thyristor speed controllers for simple airflow control
Specifications
Specifications
- Brand: Blauberg
- Series: Primo
- Model: Primo 355
- Fan Type: Inline mixed flow AC fan
- Application: Supply and exhaust ventilation for commercial and industrial premises
- Airflow: 2090 / 2296 / 2485 M³/H (speed 1 / 2 / 3)
- Duct Size: 355MM (14" Inch)
- Motor Type: 3-speed asynchronous AC motor with ball bearings
- Rated Power: 126W / 131W / 150W
- Supply Voltage: 230V AC, 1 phase
- Frequency: 50Hz
- Current: 0.60A / 0.58A / 0.66A
- Sound Level: 47 / 47 / 49 dB(A) at 3M
- Ingress Protection: IPX4
- Motor IP Rating: IP20
- Transported Air Temperature: -25°C to +55°C
- Casing Material: Polymer with metal reinforcement
- Impeller Type: Mixed flow
- Installation: Inline mounting in any orientation for a round duct
- Speed Control: Compatible with 3-stage and thyristor speed controllers
- Typical Uses: Commercial kitchens, warehouses, plant rooms, industrial spaces
What's in the box
What's in the box
- [1] x Blauberg Primo 355 Mixed Flow Inline AC Fan - 355MM (14" Inch) | 3 Speed
