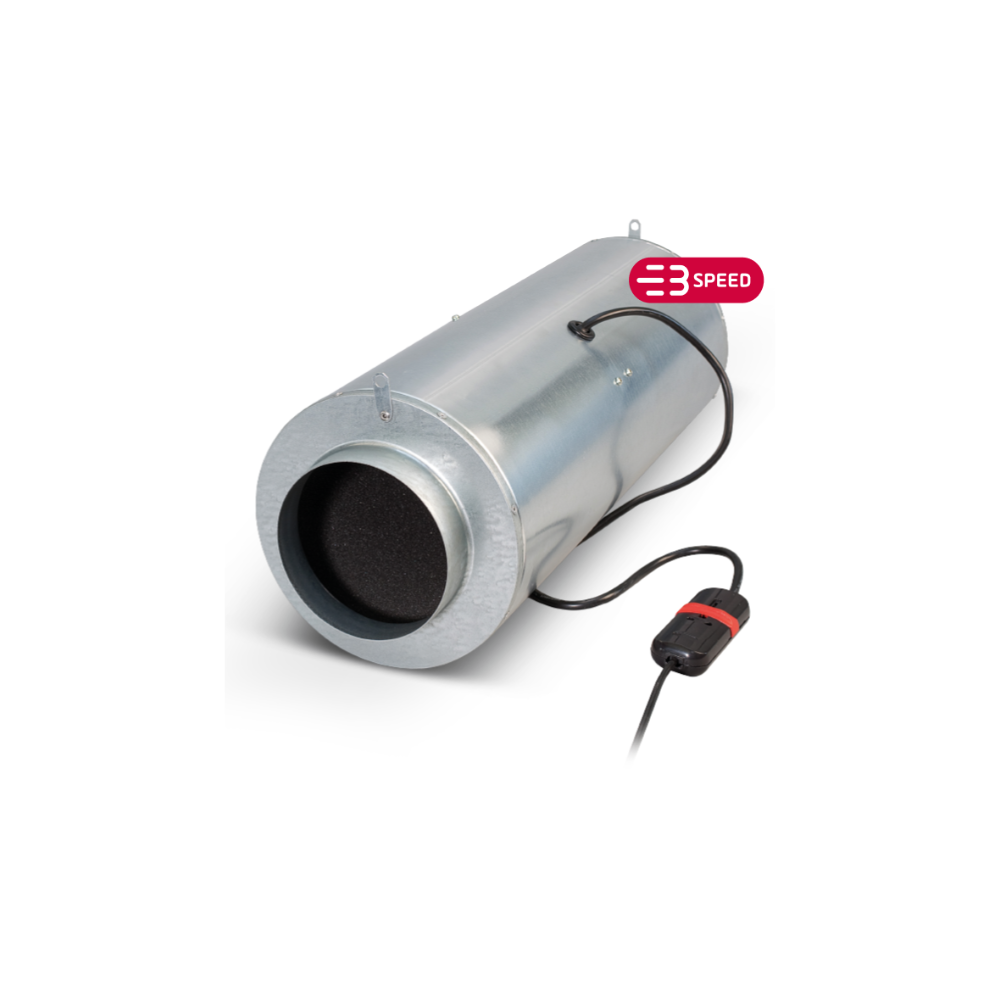

Can-Fan Iso Max-Fan AC Fan - 150MM (6" Inch) w/ 3 Speed Controller
Air Flow 410 M³/H | Power Consumption 51W
Can-Fan Iso Max-Fan AC Fan - 150MM (6" Inch) w/ 3 Speed Contro...
Product Overview
| Model Number | ISO-MAX 150 |
| Airflow (M³/H) | 410 |
| Duct Flange Size | 150MM (6" Inch) |
| Motor Type | AC |
| Exhaust Fan Power (W) | 51 |
| Noise Level | 60 dBA |
| IP Rating | NA |
| Power Cord | Yes |
| Backdraft Damper | No |
| Voltage | 240V - 1 Phase |
| Humidistat | No |
| Thermostat | No |
| Speeds / Control | 3-Speed |
| Smart Control (Wi-Fi/App) | No |
| Run On Timer | No |
Description
Description
Iso-Max is a totally unique diagonal tube fan designed to be efficient, powerful and silent. Iso-Max, like Max-Fan, uses the stator-rotor system that enables it to be efficient air performance wise and power consumption wise. However, Iso-Max is a particular type of fan because it is a fan integrated in a silencer; the housing of the fan is completely made out of metal, and for the noise reduction it is equipped with a special type of foam. Its light-weight, strong air performance and quietness makes Iso-Max the most advanced choice for a ventilation application.
Iso-max is now controllable using Can-Fan Satellite 4A, this combination functions as a speed Controller. In case you want to have full control, just Plug Can Fan LCD EC Controller in your Can Fan Satellite 4A and you are ready to go.
Iso Max is equipped with a thermal switch, that turns off the motor if it reaches a dangerous working temperature. In addition, Iso-Max comes with mounting brackets for easier installation.
For efficient performance with the best possible results, we strongly recommend the use of Iso-Max together with Can Filters.
Features
Features
- Max-Fan integrated into a silencer
- Silent and powerful
- Easy to mount
- Rotor-stator uniform airflow
- Full galvanized metal housing
- Acoustic foam padding
- Swiss made motor
- Controllable in combination with the Satellite 4A and LCD EC Fan Controller
Specifications
Specifications
| Name | Flange Size | Max Air Flow (m3/h) | Max Air Flow (CFM) |
|---|---|---|---|
| ISO-MAX 150 with 3 Speed Controller | 150MM | 409 | 241 |
| ISO-MAX 200 with 3 Speed Controller | 200MM | 870 | 512 |
| ISO-MAX 250 - single speed | 250MM | 1480 | 871 |
| ISO-MAX 250 High Speed - single speed | 250MM | 2310 | 1360 |
| ISO-MAX 315 - single speed | 315MM | 2380 | 1400 |
| ISO-MAX 315 High Speed - single speed | 315MM | 3260 | 1920 |
What's in the box
What's in the box
- [1] x Can-Fan Iso-Max Silent AC Exhaust Fan - 150MM (6" Inch) | 3 Speed Control
