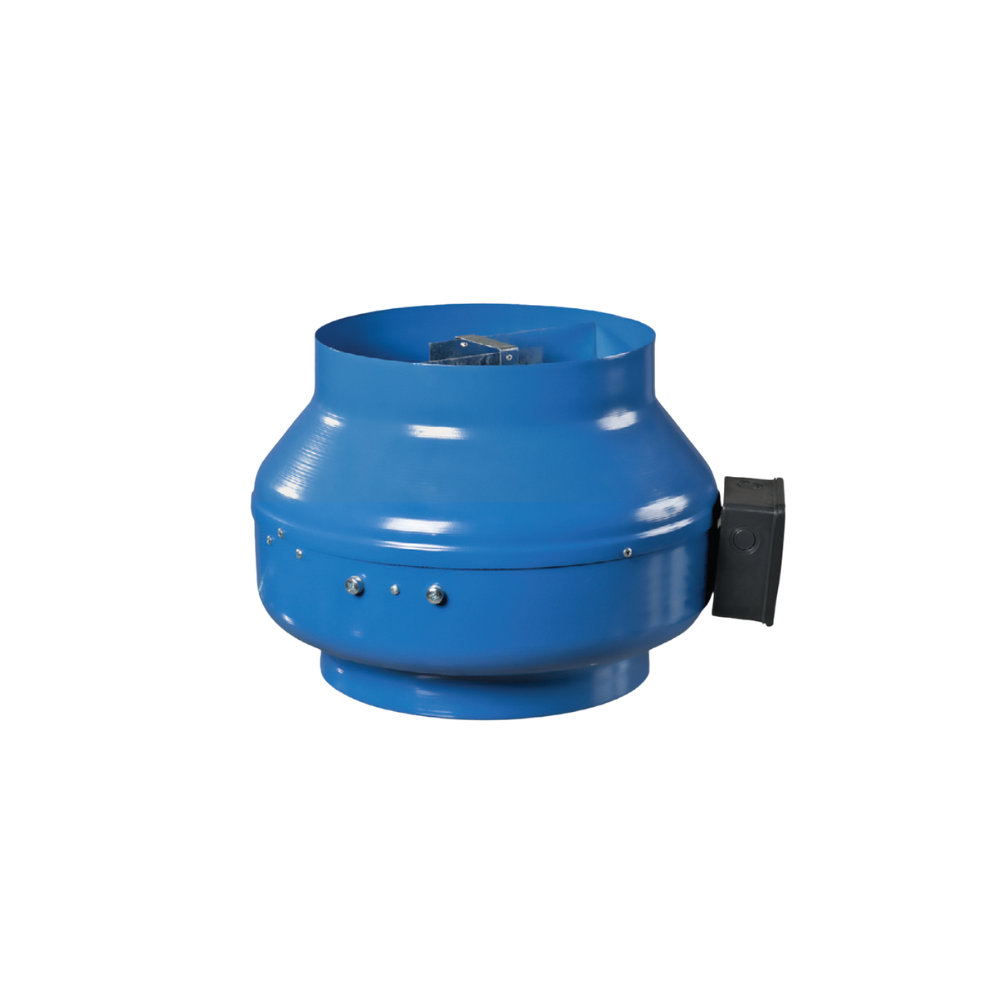

Fanco VKM Centrifugal Inline AC Exhaust Fan - 315MM (12" Inch) | w/ Metal Casing
Air Flow 1880 M³/H | Power 296W | Noise 54 dB(A) | IPX4
Product Overview
| Airflow (M³/H) | 1880 |
| Power | 296 |
| Motor Type | AC |
| Noise Level | 54 dBA at 3M |
| IP Rating | IPX4 |
| Run On Timer | No |
Description
Description
Note: This fan does not come with a power lead and plug. It requires hard wiring by a qualified electrician.
The Fanco VKM 315 Centrifugal Inline Exhaust Fan is the largest model in the VKM range, engineered for high-capacity ventilation in commercial and industrial applications. Featuring a robust all-metal casing and a European-made Blauberg Motoren motor, this heavy-duty fan is designed to maintain strong airflow even across long duct runs.
Delivering a massive 1880 m3/h airflow output with a power rating of 296W, the VKM 315 is suitable for warehouses, workshops, large kitchens, offices, and other demanding environments. With an operating noise of 54 dB(A) and IPX4 moisture protection, this unit combines performance, durability, and reliability. It comes with mounting brackets for secure installation and can be paired with an optional dimmer-style speed controller for tailored performance.
Features
Features
- High Capacity Airflow - Provides up to 1880 m³/h, perfect for large commercial and industrial spaces.
- Durable All-Metal Housing - Ensures long-term reliability and stability.
- European Quality - Equipped with a premium Blauberg Motoren motor.
- Moisture Resistant - IPX4 rating makes it suitable for damp or humid conditions.
- Variable Speed Control - Compatible with optional dimmer-style speed controller.
- Heavy-Duty Performance - Designed for continuous operation across long duct runs.
- Secure Installation - Supplied with mounting brackets for quick setup.
- 2-Year Replacement Warranty - Backed by reliable manufacturer support.
Specifications
Specifications
- Model: VKM 315
- Airflow: 1880 M³/H
- Power Consumption: 296W
- Current: 1.34A
- Noise Level: 54 dB(A)
- Voltage: 220-240V

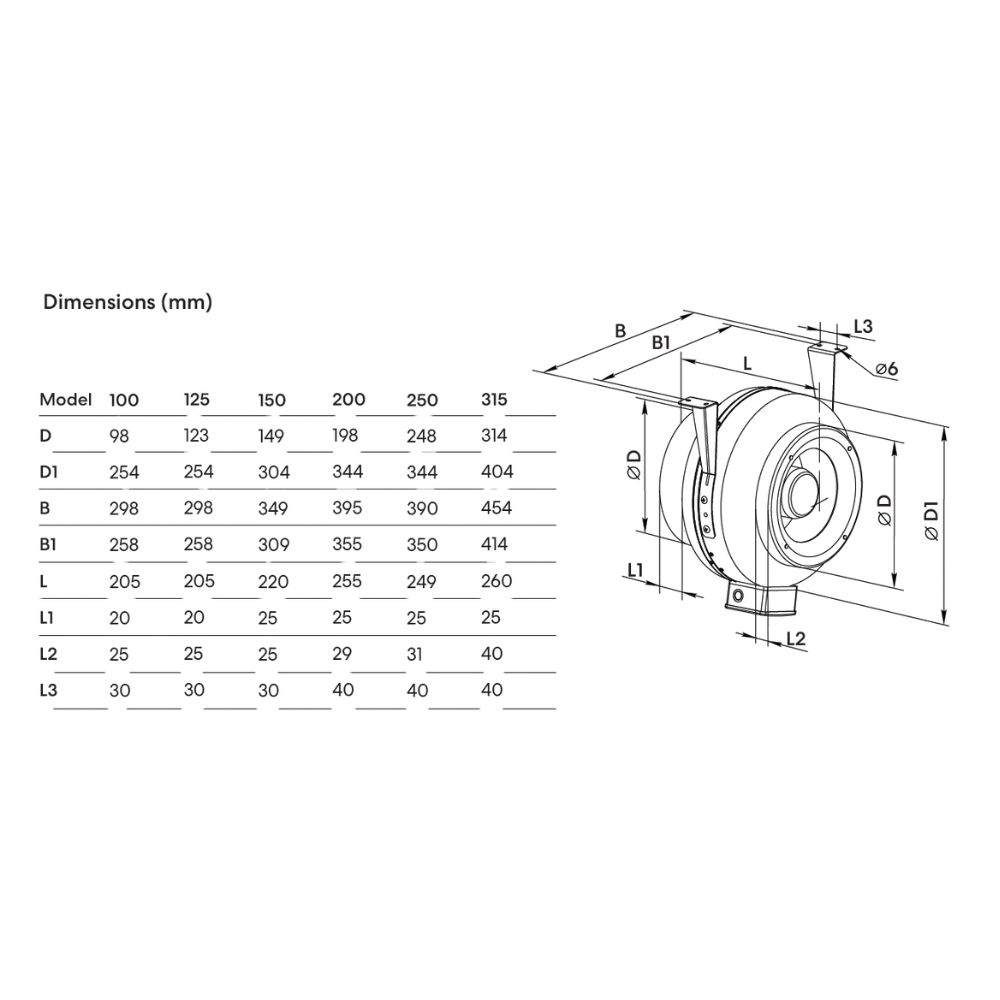

- Duct / Flange Size: 315MM (12" Inch)
- Protection Rating: IPX4
- Maximum Air Temperature: +45°C
- Operating Temperature Range: +1°C to +40°C
- Warranty: 2 Years (Replacement)
What's in the box
What's in the box
- [1] x Fanco VKM Centrifugal Inline AC Exhaust Fan - 315MM (12" Inch) | w/ Metal Casing
Downloads
Downloads
- Specification Sheet - Click Here
