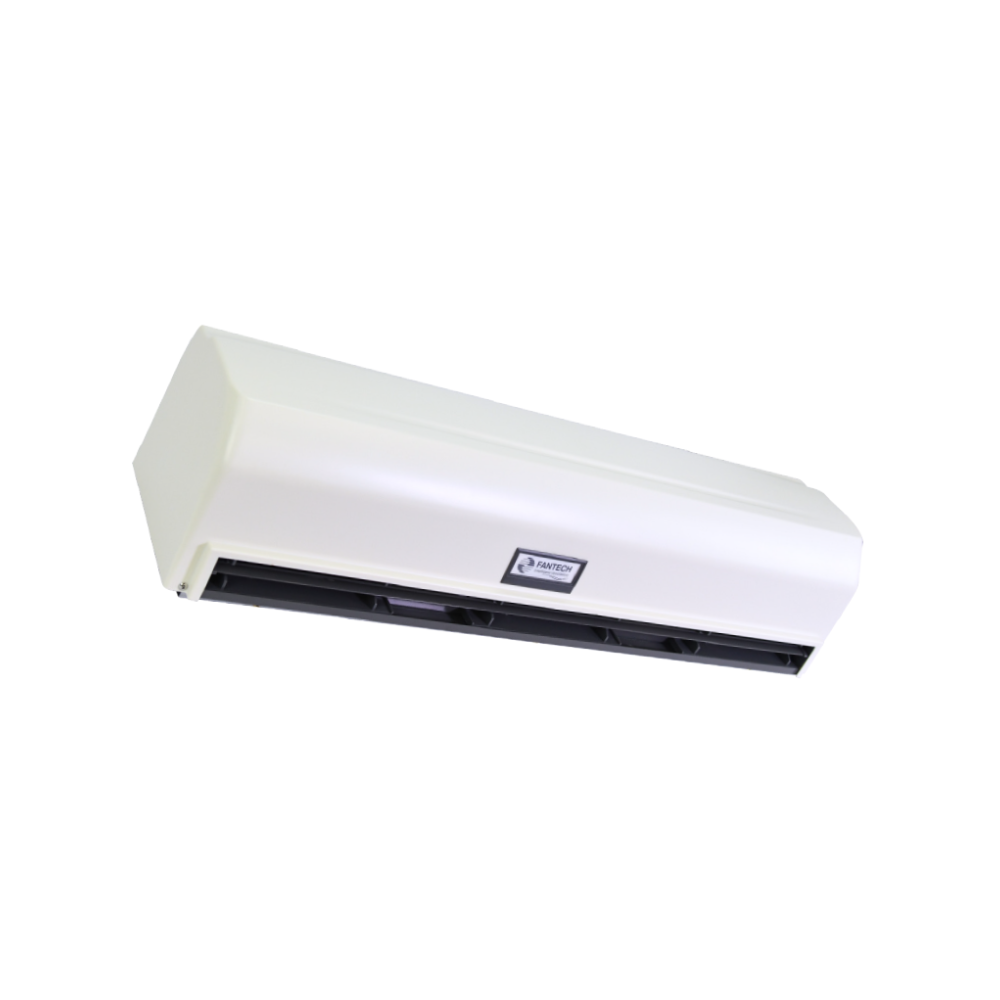

Fantech Commercial Air Curtains w/ Wall Switch - AC1209WS | 900MM Long | 2-Speed | 1 Phase

Fantech Commercial Air Curtains are engineered to maximise building efficiency by creating an invisible barrier of air across doorways and entrances. The AC1209WS model delivers a high speed air velocity of 18 m/sec, ideal for maintaining indoor comfort and preventing external elements from entering.

Designed for use in retail stores, cafes, supermarkets and shopping centres, this air curtain effectively prevents dust, fumes, odours and insects from entering while retaining heated or cooled air inside the building. Its 2-speed operation allows users to adjust performance for both peak and off-peak periods, ensuring energy-efficient climate control.

With a durable design, thermal overload protection, and a wall-mounted switch included, the Fantech AC1209WS is a reliable and quiet (57 dB(A)) solution for commercial entrances requiring high speed air flow and professional-grade performance.

• Efficient Climate Control: Creates an invisible air barrier to retain heating and cooling inside.
• High/Low 2-Speed Operation: Allows control for different traffic conditions and energy savings.
• Adjustable Air Deflection Vents: Directs airflow for optimal coverage across the doorway.
• Thermal Overload Protection: Built-in motor protection ensures long-term reliability.
• Wall Mounted Switch Included: Easy control of air curtain operation.
• Integration Ready: Compatible with Building Management Systems.
• Quiet Operation: Low noise level of just 57 dB(A) at 3 metres.

• Model: AC1209WS
• Voltage / Frequency: 230V / 50Hz
• Speed: High / Low (2-speed operation)
• Effective Door Height: Up to 4.0M (High), 3.0M (Low)
• Air Velocity: 18 M/Sec (High), 15 M/Sec (Low)
• Fan Speed: 2500 RPM (High), 2150 RPM (Low)
• Noise Level: 57 dB(A) @ 3M
• Power Consumption: 276W (High), 220W (Low)
• Weight: 12.4 Kg
• Mounting Type: Wall Mounted
• Application: Commercial & Retail Entrances

• [1] x Fantech Commercial Air Curtains - AC1209WS | 900MM Long | 2-Speed | 1 Phase
• [1] x Wall Switch

• Specification Sheet - Click Here
