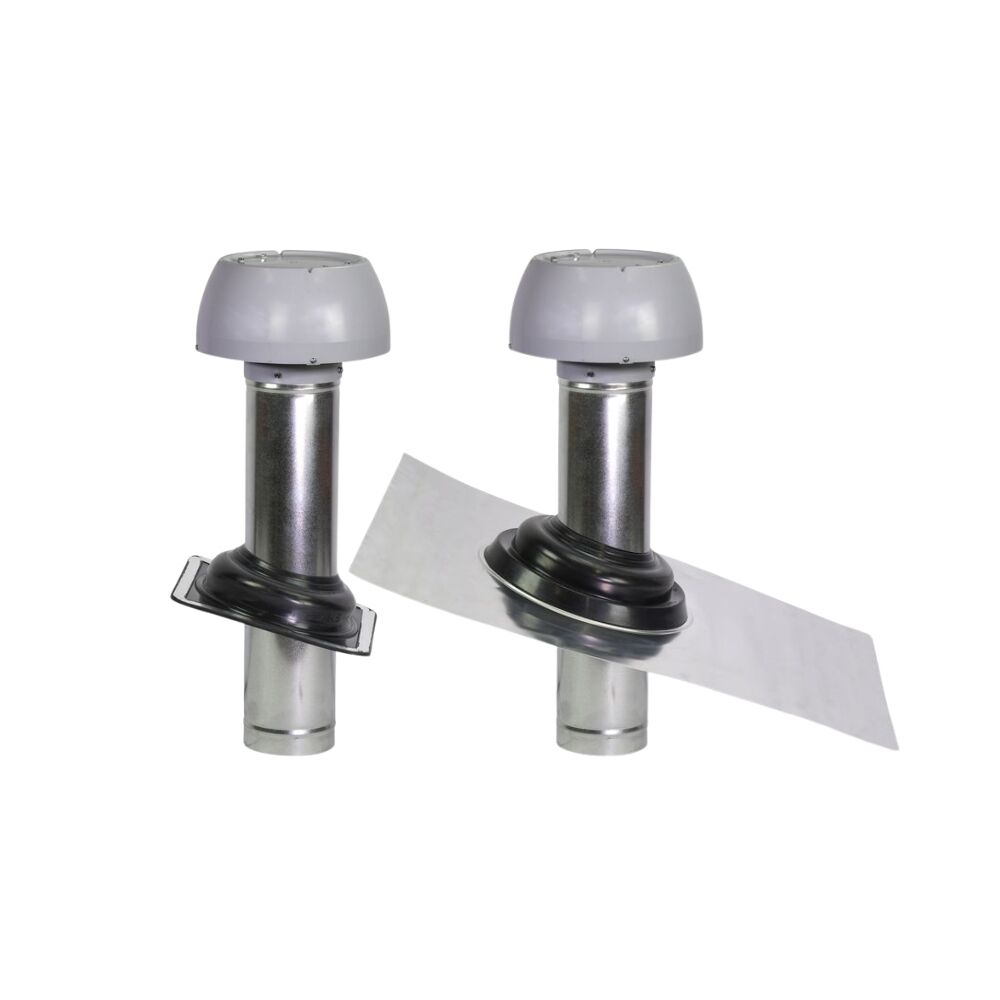

Fantech Ezifit Thru Roof Mounted Exhaust Fan w/ Plastic Cowl - 150MM (6" Inch) | 2 Pole
Air Flow 277 M³/H | Power Consumption 30W
Product Overview
| Model Number | ECE154M/ECE154T |
| Airflow (M³/H) | 277 |
| Duct Flange Size | 150MM (6" Inch) |
| Motor Type | Squirrel Cage Induction Motor |
| Exhaust Fan Power (W) | 30 |
| Noise Level | 35 dBA at 3M |
| Power Cord | Yes |
| Backdraft Damper | Optional |
| Voltage | 240V - 1 Phase |
| Thermostat | No |
| Speeds / Control | No |
| Smart Control (Wi-Fi/App) | No |
| Run On Timer | No |
| Warranty | Fantech - 5 Years Warranty* |
Description
Description
The Fantech Ezifit Thru Roof Exhaust Fan ECE154 is a premium roof-mounted ventilation solution designed to provide powerful air extraction with exceptionally low noise levels inside occupied spaces. Featuring a high-performance backward-curved centrifugal fan, this unit is ideal for applications requiring long duct runs, multiple extraction points, and reliable ventilation performance.
Unlike conventional ceiling-mounted exhaust fans, the ECE154 positions the motor and fan assembly outside the building, significantly reducing noise transmission into occupied rooms. This makes it an excellent choice for residential, commercial, hospitality, and light industrial applications where quiet operation is essential.
Constructed from durable galvanised steel, the Ezifit Thru Roof unit is designed to withstand Australia's harsh environmental conditions while providing long-term reliability. The powerful centrifugal fan allows extraction from multiple rooms or ventilation points, making it ideal for bathrooms, laundries, kitchens, offices, and whole-house ventilation systems.
The unit includes a convenient 3-pin plug and lead for easy installation and is suitable for both tile and metal deck roofs. Its speed-controllable external rotor motor enables airflow adjustment to suit varying ventilation requirements, while integrated thermal protection ensures safe and dependable operation.
Designed and manufactured to meet recognised industry standards, the Fantech ECE154 delivers efficient airflow performance, low operating noise, and exceptional durability for demanding ventilation applications.
Features
Features
- Roof Mounted Centrifugal Exhaust Fan - Provides powerful extraction while reducing indoor noise.
- Suitable for Long Duct Runs - Ideal for installations with extended duct systems.
- Multiple Extraction Points - Capable of ventilating several rooms simultaneously.
- Galvanised Steel Construction - Durable and corrosion-resistant housing.
- Low Noise Operation - Fan mounted externally to minimise noise in occupied areas.
- Speed Controllable Motor - Compatible with electronic speed controllers.
- Continuous Rated Motor - Designed for reliable long-term operation.
- Suitable for Tile and Metal Roofs - Flexible installation options.
- 3-Pin Plug and Lead Included - Simplifies installation.
- Integrated Thermal Protection - Manual reset thermal protection for added safety.
Specifications
Specifications
| Specification | Details |
|---|---|
| Model | ECE154M (for Metal Deck Roof) / ECE154T (for Tile Roof) |
| Product Series | Ezifit Thru Roof Exhaust Fan |
| Construction Material | Galvanised Steel |
| Fan Type | Backward-Curved Centrifugal Fan |
| Motor Type | External Rotor Squirrel Cage Induction Motor |
| Speed | 23 rps |
| Average Noise Level | 35 dBA @ 3m |
| Power Input | 0.03 kW |
| Current Draw | 0.16 Amps |
| Maximum Ambient Temperature | 60°C |
| Approximate Weight | 4kg |
| Electrical Supply | 230V Single Phase 50/60Hz |
| Thermal Protection | Manual Reset |
What's in the box
What's in the box
- [1] x Fantech Ezifit Thru Roof Mounted Exhaust Fan w/ Metal Cowl - 150MM (6" Inch) | 4 Pole | Tile / Metal Deck
